36

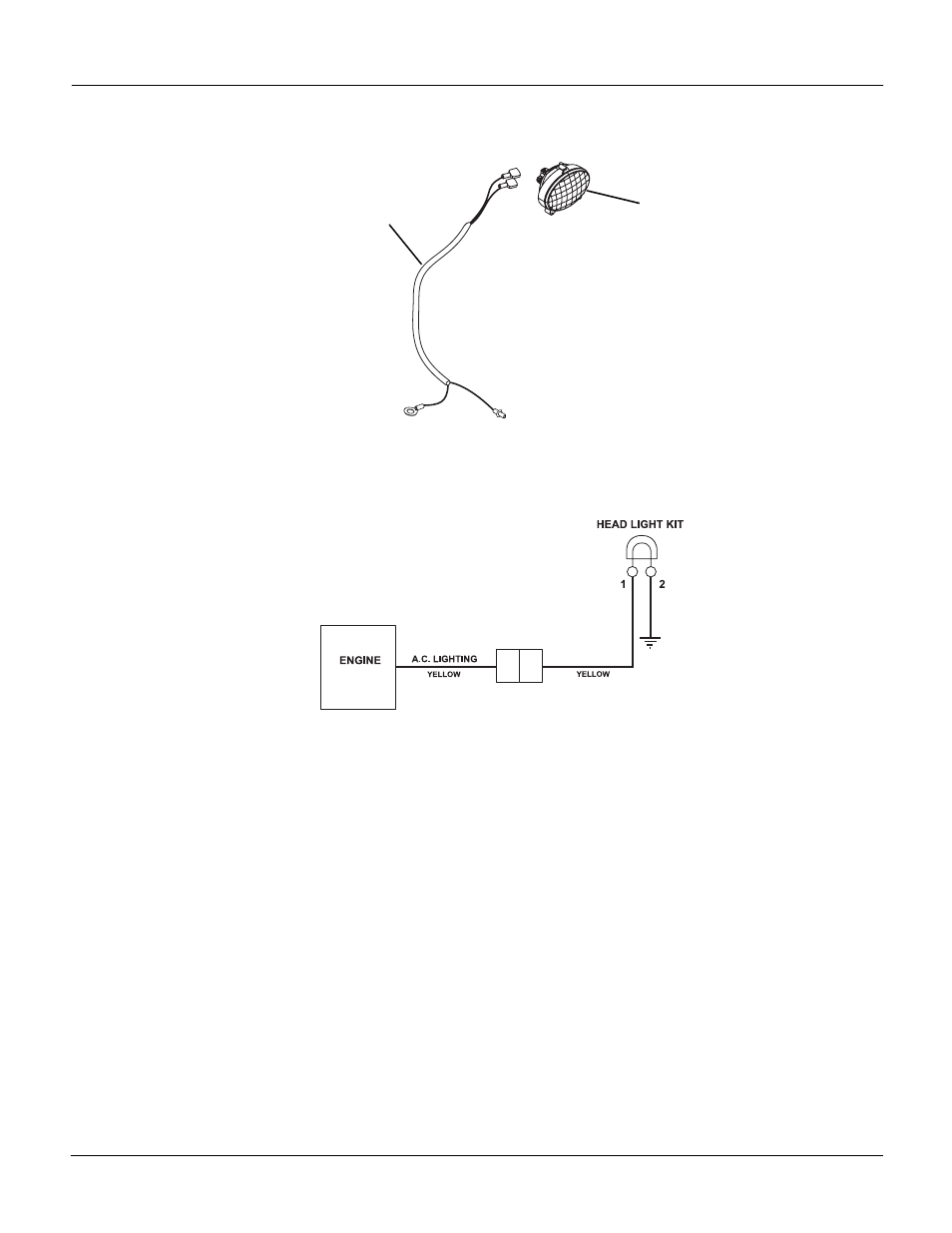

E

LECTRICAL

AND

W

IRING

D

IAGRAM

Model

926001, 013, 305

Item Part No.

Qty.

Description

1

00432500 AR

Light, Halogen Assembly

2

00432200

1

Harness, Wire Light

PS0900
