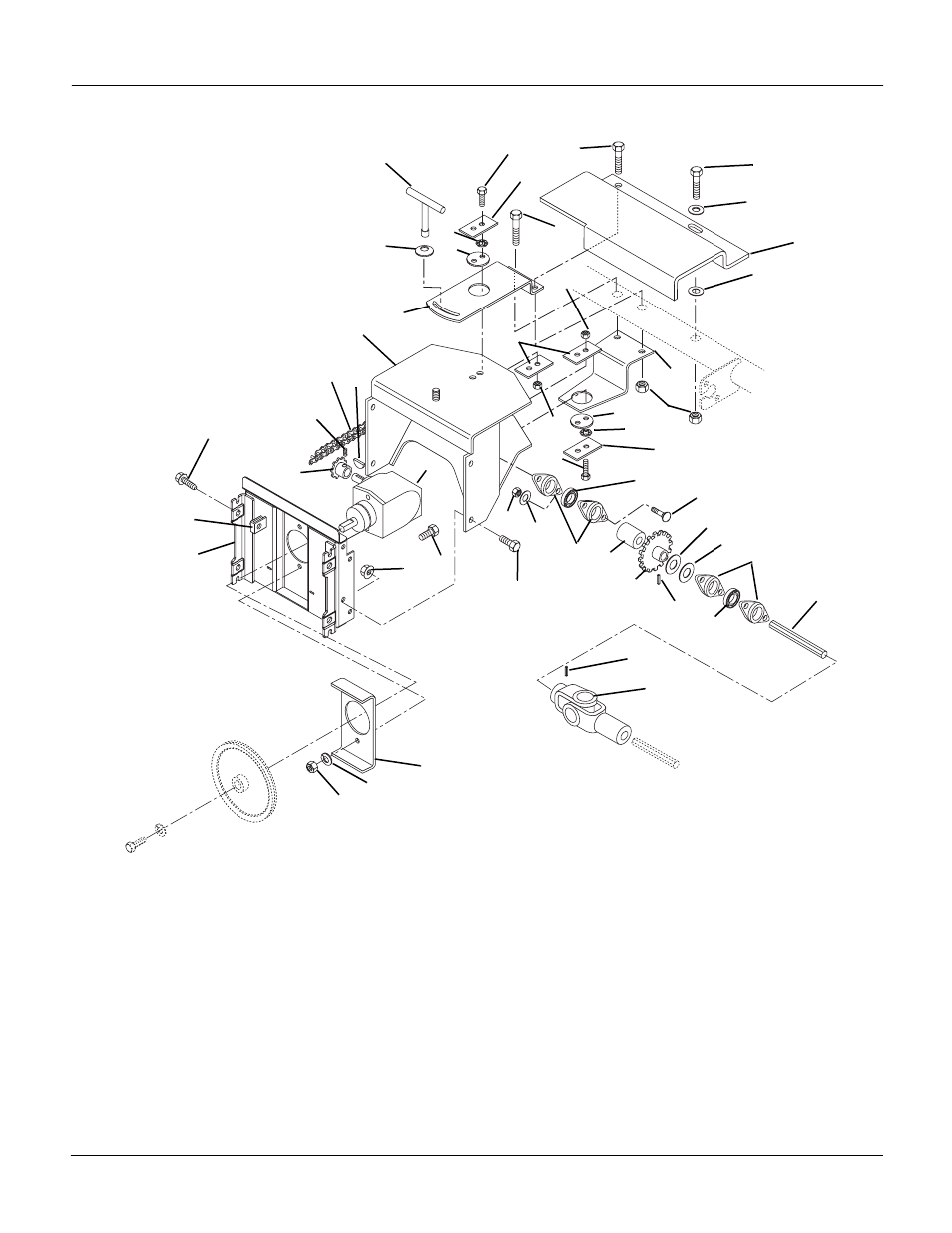

Model 926502
Item Part No. Qty. Description
1 05947500 5 Bolt, Hex .31-18 x 1.25 Grade 5
2 02404800 4 Retainer
3 06307200 4 Washer, Locking Internal .313 x .030
4 02404900 2 Pivot, Center
5 02471751 1 Plate, Top Mount
6 02470900 1 T-Lock Handle
7 06445700 1 Washer, Bellville .63 x 1.625 x .14
