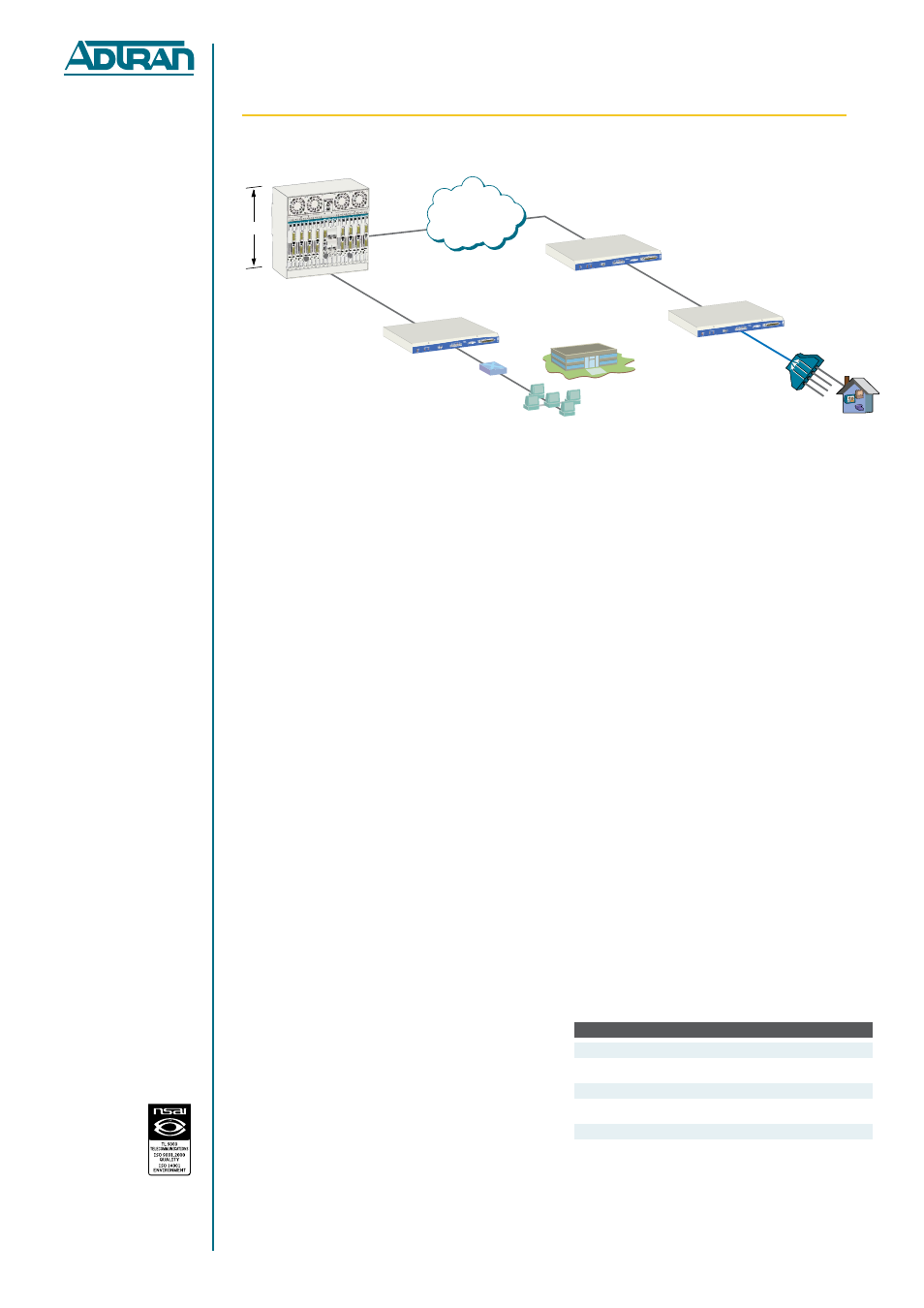

DSLAM
4 x 10/100Base-T
or GigE SFP
NetVanta 814
4 x 10/100Base-T
or GigE SFP
Metro Ethernet
& IP Core
1–8 EFM Bonded
DS1 Pairs
LAN
Router
NetVanta 818
1-8 EFM Bonded
DS1 Pairs
NxGigE
NetVanta 818
4 x 10/100Base-T
or GigE SFP
1–4 EFM Bonded
DS1 Pairs
Small/Medium
Business
10 RU
Total Access 5000 (ETSI)
NetVanta 818
8-port EFM over DS1/E1
I61200637G2-8A January 2008
Copyright © 2008 ADTRAN, Inc.
All rights reserved.
ADTRAN believes the information in this publication to be accurate as of publication date, and is
not responsible for error. Specifications subject to change without notice. ADTRAN, NetVanta, and
Total Access are registered trademarks of ADTRAN, Inc. and its affiliates in the U.S. and certain other
countries. All other trademarks mentioned in this document are the property of their respective owners.
ADTRAN products may be subject to U.S. export controls and other trade restrictions. Any export,
re-export, or transfer of the products contrary to law is prohibited. For more information regarding
ADTRAN’s export license, please visit www.adtran.com/exportlicense
Management & Administration
■
Management methods
■
Craft interface (Local, EIA-232)
■
Firmware upgrades
■
Local: YMODEM through craft port
■
Remote: Managed through Total Access 3000 LTU,
Total Access 5000
■
Supports OAM management status and
loopback messaging
■
Configuration script download
Environment
■
Operating Temperature: -40°C to +65°C
■
Storage Temperature: -40°C to +85°C
■
Relative Humidity: Up to 95%, noncondensing
Physical
■
Dimensions: 44 mm H, 437 mm W, 254 mm D
■
Weight: 3.6 kg
■
DC Power: -48 VDC or ±24 VDC (A or B power feed)
Agency Approvals
■
FCC Part 15 Class A
■
FCC Part 68
■
UL 60950, CAN/CSA C22.2 No. 60950
■
EN 60950, IEC 60950, AS 3260/ AS NZS60950
■
NEBS Level 3
■
S043.2
■
ITU-T K21:2000 Enhanced
Ordering Information
Equipment
Part #
NetVanta 818
1200637G2
48VDC Power Supply, US Cord
1202470E1
48VDC Power Supply, Eu Cord
1202470E2
48VDC Power Supply, UK Cord
1202407L3
48VDC Power Supply, US Cord
1202407L4
Product Specifications
Physical Interface
■
Network Interface: DS1/E1 – RJ21
■
Customer: Four Autosensing 10/100Base-T Ethernet
• RJ-45
• Auto MDI/MDIX
• Auto-Rate
• Auto-Duplex
■
Gigabit Ethernet Interface
• Interface Type: 1000 Base-X
• Connector: Single SFP
• Compliance: 802.3, 802.1D, 802.1Q
■
Management: Console Port
• DB-9
• EIA-232
Diagnostics LEDs
■
Power/Alarm LED
■
SHDSL Loop Status for each loop
■
Ethernet LED
Features
■
E-Line support
■
Mini jumbo frame support (1728 Bytes)
■
Efficient EFM bonding
■
Q in Q
■
Flexible bandwidth profiles for rate limiting
■
Traffic classification options include CE-VLAN,
port, p-bit, DSCP
■
SNMP support
Standards Compliant
■
IEEE 802.1p priority marking
■
IEEE 802.1d dynamic/transparent bridging
■
IEEE 802.1 q VLAN tagging
■
IEEE 802.3-ah EFM standard
■
IEEE 802.3u Ethernet
■
MEF 9,14
