AR-7EVH Electric Rotisserie with Ventless Hood Operation & Care Manual • 6
I n s t a l l a t I o n

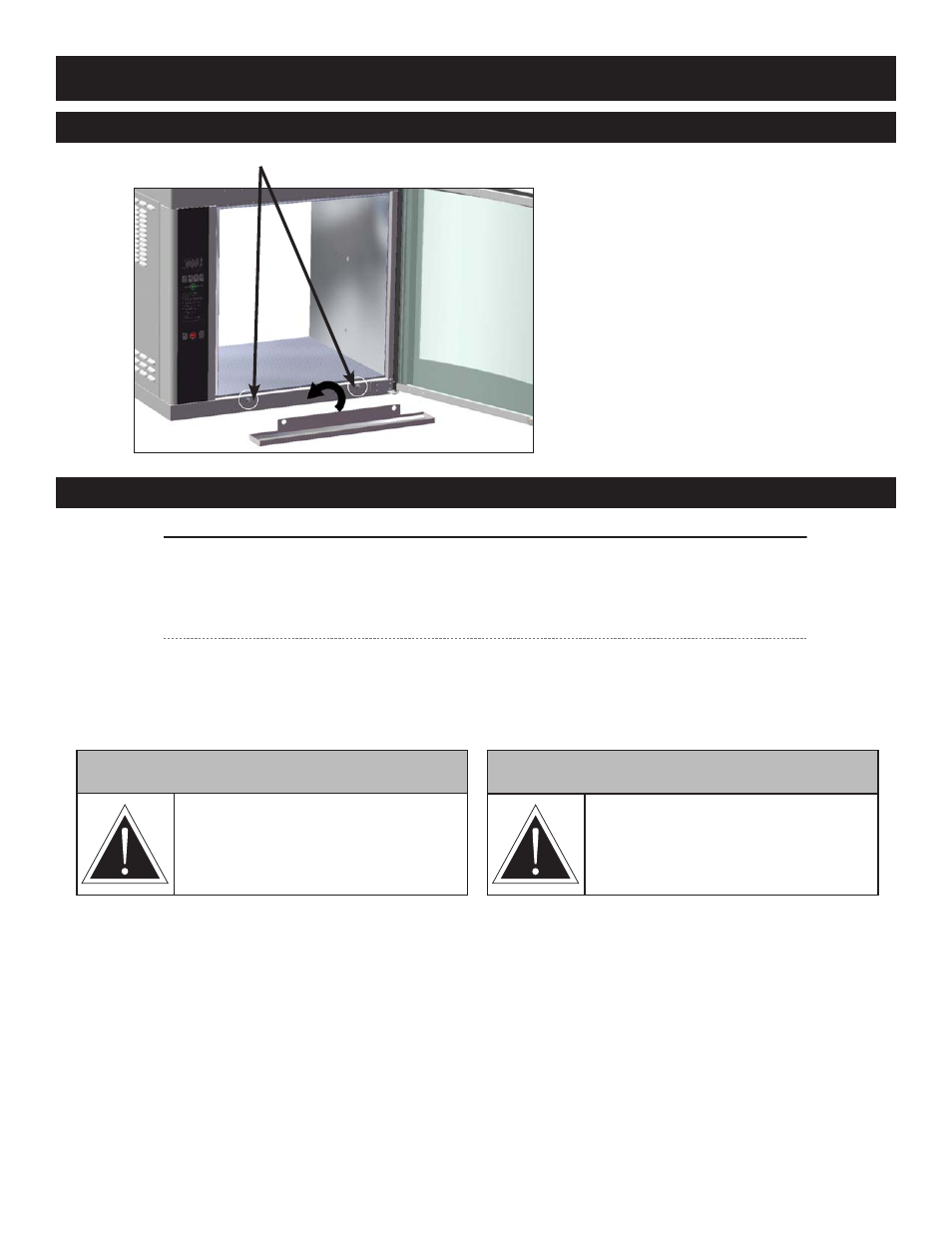

Attach tray using two carriage bolts in base panel. Lift tray up and away to remove. d r I p t r a y I n s t a l l a t I o n
s t a c k I n G c o M b I n a t I o n s & I n s t a l l a t I o n r E Q u I r E M E n t s
stackInG coMbInatIons (
FACTORY INSTALLED
)
AR-7EVH rotisserie with ventless hood over AR-7E rotisserie
Requires 4" (102mm) legs for counter top applications. Free standing floor installations
require 6" (152mm) leg assembly 5001414 or 5" (127mm) casters 4007.
[
OVERALL HEIGHT
: 54-7/16" (1384mm)]
AR-7EVH rotisserie with ventless hood over AR-7H companion holding cabinet
Requires 6" (152mm) legs with flanged feet 5001761 bolted to the floor.
[
OVERALL HEIGHT
: 90-13/16" (2307mm)]
c a u t I o n
StaCkIng applICatIOnS
OutSIDe the u.S. reQuIre
FlangeD Feet anD MuSt be
bOlteD tO the FlOOr.
c a u t I o n
Make CertaIn tO FaSten
eaCh OF the FOur hOleS
