s E r V I c E
AR-7EVH Electric Rotisserie with Ventless Hood Operation & Care Manual • 35
Part numbers and drawings are subject to change without notice.
AR-7EVH Electric Rotisserie with Ventless Hood Operation & Care Manual • 35
Part numbers and drawings are subject to change without notice.
9
10
11
8
7
12
13
4
3
2
5
6
1

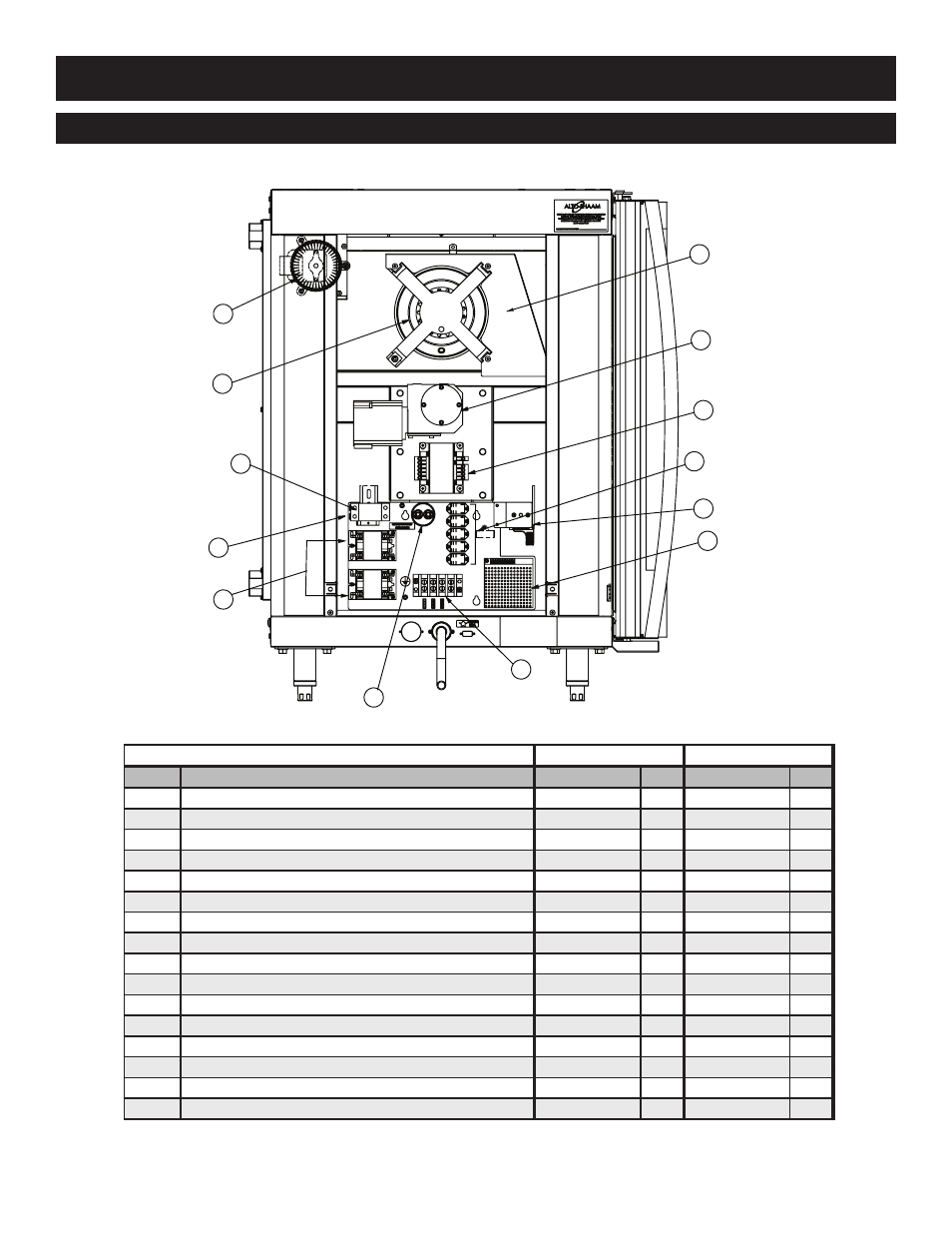

r o t I s s E r I E , E l E c t r I c a l s E r V I c E V I E w
ModEl > curVEd door flat door
ItEM dEscrIptIon part no. Qty part no. Qty
1 AIR DUCT 1002068 1 1002068 1
2 MOTOR DRIVE, 230V, AC MO-33893 1 MO-33893 1
3 TRAnSFORMER, STEP DOWn Tn-33460 1 Tn-33460 1
4 RELAy, POWER RL-33930 5 RL-33930 5
5 SWITCH, HIGH LIMIT SW-34454 1 SW-34454 1
6 BOARD, POWER SUPPLy, 12V DC, SWITCH BA-33554 1 BA-33554 1
7 TERMInAL BLOCK BK-3023 1 BK-3023 1
8 FAn, BLOWER MOTOR CAPACITOR, 4 UF FA-33931 1 FA-33931 1
9 COnTACTOR, 208/240V 3 POLE 25 AMP Cn-3052 2 Cn-3052 2
RESISTOR, MOV, SURGE PROTECTOR RS-3578* 2 RS-3578* 2
10 FUSE, 15A, CLASS G FU-34772 2 FU-34772 2
11 FUSE HOLDER FU-34771 1 FU-34771 1
12 MOTOR, COnVECTIOn FAn, 220-240V M0-33892 1 M0-33892 1
13 ExHAUST VEnT MOTOR FAn WHEEL, 240V, 50/60Hz FA-33221 1 FA-33221 1
14 SWITCH, FAn, SAIL SW-33907* 1 SW-33907* 1
15 DRIVE MOTOR CAPACITOR MO-33988* 1 MO-33988* 1
* not shown
