s E r V I c E
AR-7EVH Electric Rotisserie with Ventless Hood Operation & Care Manual • 37
Part numbers and drawings are subject to change without notice.
AR-7EVH Electric Rotisserie with Ventless Hood Operation & Care Manual • 37
Part numbers and drawings are subject to change without notice.
5
6
7
8
“A”
“A”
“A”
“B”
1
2
3
4

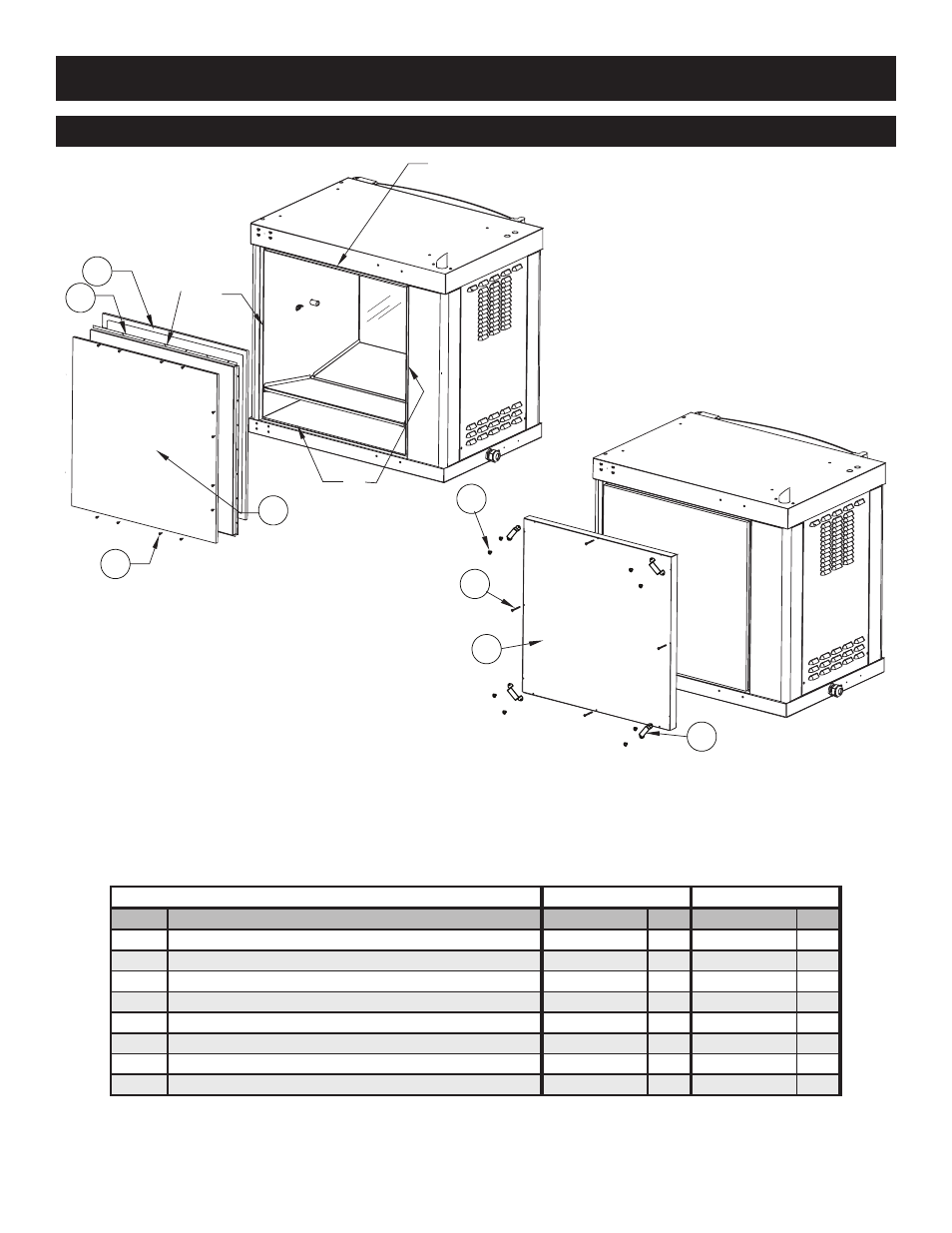

r o t I s s E r I E , s t a I n l E s s s t E E l b a c k p a n E l ( 5 0 0 6 2 1 4 )
Installation instructions:
STEP 1: REMOVE GASKET AnD ALL SCREWS
On InSTALLATIOn SIDE.
STEP 2: InSTALL 1006652 USInG (16) SC-25849
SCREWS In LOCATIOnS MARKED “A.”
STEP 3: InSTALL 1006746 InTO 1006652 USInG
(4) SC-27843 SCREWS, (8) SC-2459
SCREWS AnD (4) 1002822 SPACERS.
STEP 4: SEAL COMPLETE PERIMETER OF
OPEnInG WITH SILICOnE “B”.
ModEl > curVEd door flat door
ItEM dEscrIptIon part no. Qty part no. Qty
1 GASKET TAPE GS-28123 1 GS-28123 1
2 PAnEL, InTERIOR S/S BACK 1006652 1 1006652 1
3 SCREW, PAn HEAD SC-25849 16 SC-25849 16
4 InSULATIOn, FIBERGLASS In-2003 1 In-2003 1
5 SCREW, nC, PHILL TRUSS SC-2459 8 SC-2459 8
6 SCREW, PAn HEAD, PHILLIPS SC-27843 12 SC-27843 12
7 PAnEL, ExTERIOR S/S BACK 1006746 1 1006746 1
8 SPACER, SOLID BACK 1002822 4 1002822 4
