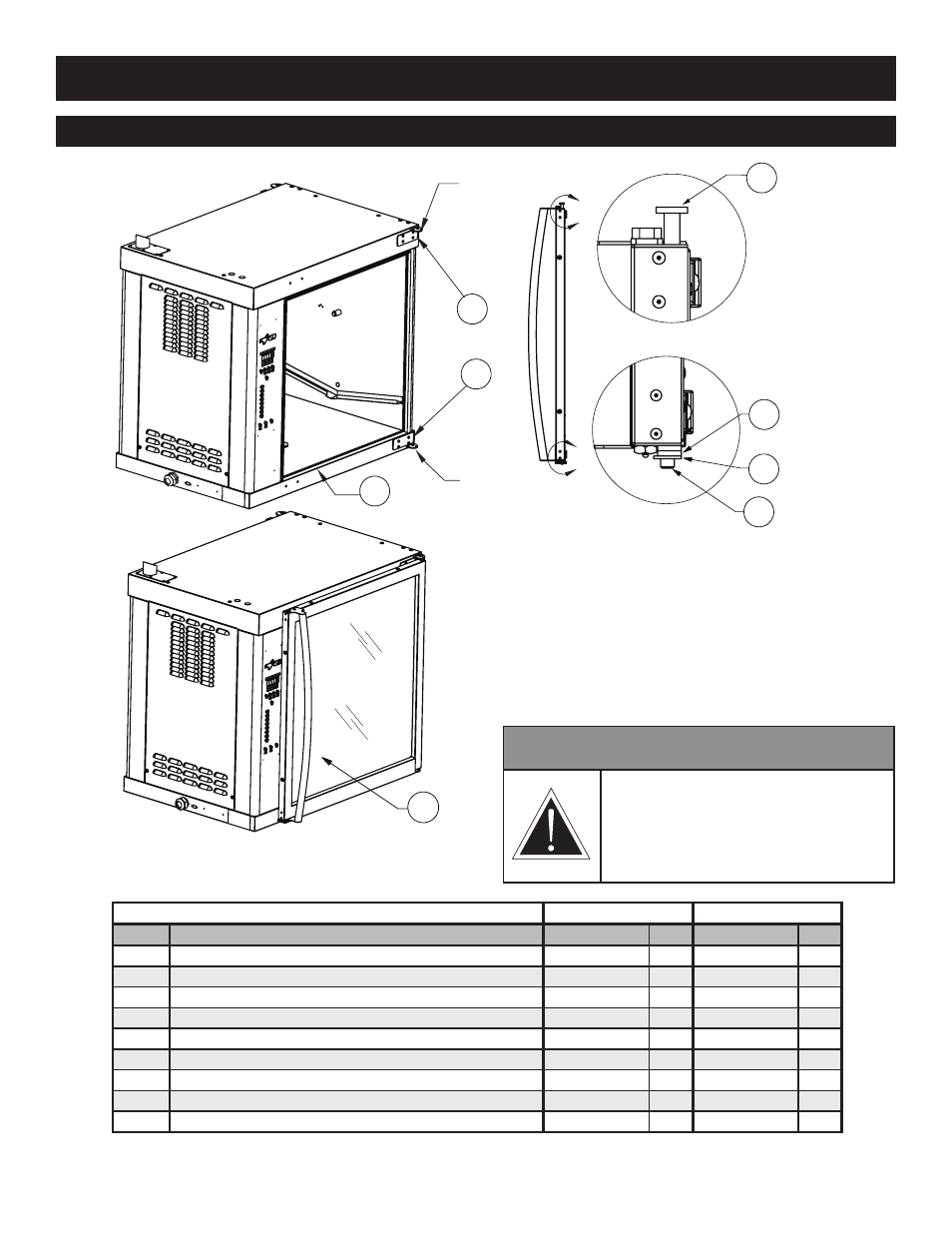

r o t I s s E r I E , r E p l a c E M E n t o f G l a s s d o o r ( f l a t d o o r s h o w n )
DOOr replaCeMent:
STEP 1: REMOVE TOP PIn (PI-26350) FROM BRACKET
"A" USInG A SMALL SCREWDRIVER.
STEP 2: ASSEMBLE DOOR On UnIT WITH SPACERS
AS SHOWn (DETAIL B).
STEP 3: MAKE CERTAIn DOOR IS ALIGnED AnD
REInSERT TOP PIn.
ModEl > curVEd door* flat door
ItEM dEscrIptIon part no. Qty part no. Qty
1 PIn, DOOR, TOP PI-26350 1 PI-26350 1
2 SPACER 1002143 1 1002143 1
3 WASHER WS-22298 1 WS-22298 1
4 PIn, DOOR, BOTTOM PI-26352 1 PI-26352 1
5 ASSEMBLy, DOOR, COnTROL SIDE 5006779 1 5009591 1
ASSEMBLy, DOOR, nOn-COnTROL SIDE 5007824 1 5009815 1
6 GASKET, DOOR GS-25753 1 GS-25753 1
7 HInGE, LOWER, DOOR 1007673 1 1007673 1
8 HInGE, UPPER, DOOR 1007672 1 1007672 1
DetaIl a
DetaIl b
* not shown
w a r n I n G
DO nOt atteMpt tO reMOVe the
DOOr WIthOut aSSIStanCe. the
DOOr IS eXtreMelY heaVY, WIll
be DaMageD IF DrOppeD, anD
MaY CauSe SerIOuS InJurY.
