s E r V I c E
AR-7EVH Electric Rotisserie with Ventless Hood Operation & Care Manual • 27
Part numbers and drawings are subject to change without notice.
AR-7EVH Electric Rotisserie with Ventless Hood Operation & Care Manual • 27
Part numbers and drawings are subject to change without notice.

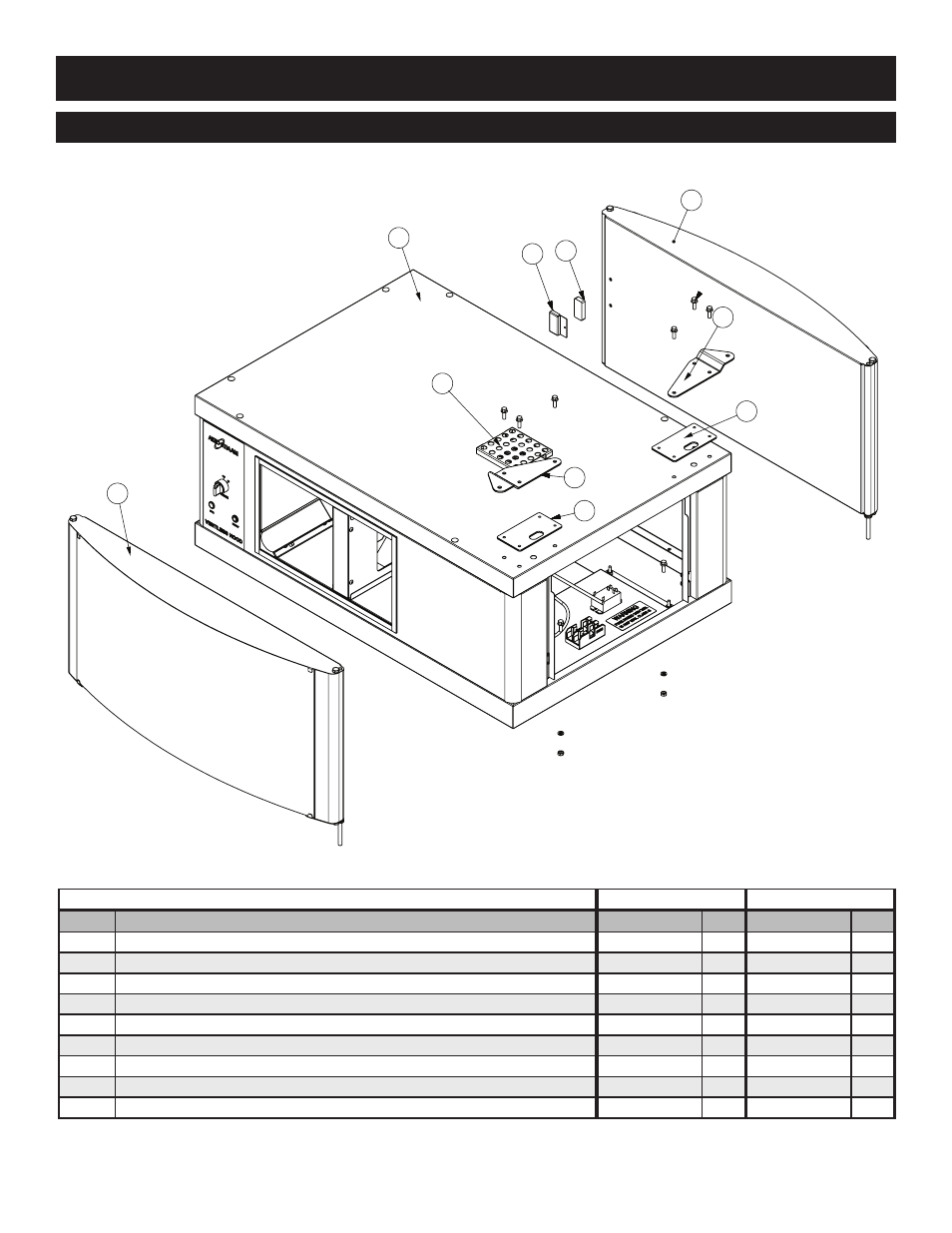

V E n t l E s s h o o d , f u l l a s s E M b l y
( r h , c u r V E d d o o r , p a s s t h r o u G h s h o w n )
1
5
6
7
2
9
4
3
9
8
ModEl > curVEd door flat door*
ItEM dEscrIptIon part no. Qty part no. Qty
1 DOOR ASSEMBLy, COnTROL SIDE 5007184 1 5007184 1
2 COVER, TOP 1007841 1 1007841 1
3 BRACKET, MAGnET, DOOR 1009532 1 1009532 1
4 MAGnET, DOOR MA-25734 1 MA-25734 1
5 DOOR ASSEMBLy, nOn-COnTROL SIDE 5009542 1 5009805 1
6 HInGE, DOOR, REAR 1007758 1 1007758 1
7 HOUSInG, DEFLECTOR, ExHAUST 1010387 1 1010387 1
8 HInGE, DOOR, FROnT 1007756 1 1007756 1
9 PLATE, SUPPORT, DOOR 1008497 1 1008497 1
* not shown
