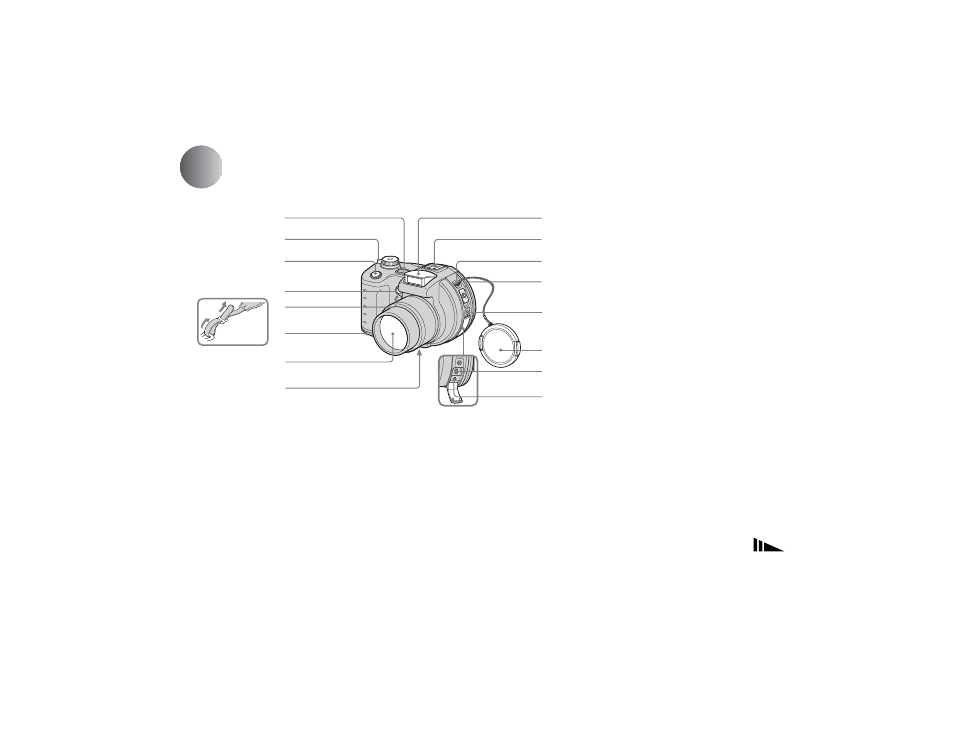

Identifying the parts
See the pages in parentheses for details of operation.
A Microphone
B POWER ON/OFF (CHG) switch
(17)
C Shutter button (25)
D Self-timer lamp (MVC-CD250)
(29) /
Hologram AF (MVC-CD400)/
AF illuminator (MVC-CD250)
emitter
(31, 116)
E Self-timer lamp (MVC-CD400)
(29)
F Battery cover (13)
G Lens
H Tripod receptacle (bottom
surface)
I Flash emitter (29)
J Hot shoe (MVC-CD400)/
Accessory shoe (MVC-CD250)
(84, 117)
K Hook for lens cap/shoulder strap
L Disc cover OPEN lever (20)
M ACC (Accessory) jack
N Lens cap (supplied)
O USB jack (56)
P A/V OUT (MONO) jack (37)
1
2
3
6
4
qs
0
qa
8
7
9
qd
qf
qg
qh
5
Attaching the
shoulder strap
• Do not touch the microphone while
recording.
• Use a tripod with a screw length of less
than 5.5 mm (7/32 inch). You will be
unable to firmly secure the camera to
tripods having longer screws, and may
damage the camera.
• Use ACC jack to connect an external
flash or other equipment.
• Audio output is monaural.
