Apple Mac PowerBook 550c User Manual
Page 94
Take Apart
Daughterboard - 37
2 Remove the plastic
retainer bar.
3
Note:
The daughterboard
is connected to the
motherboard below the
RAM card connector.
Caution:
You may have
to use some force to
disconnect the daughter-
board. Use an IC
extractor, as illustrated.
Do not pry up the board
with a screwdriver.

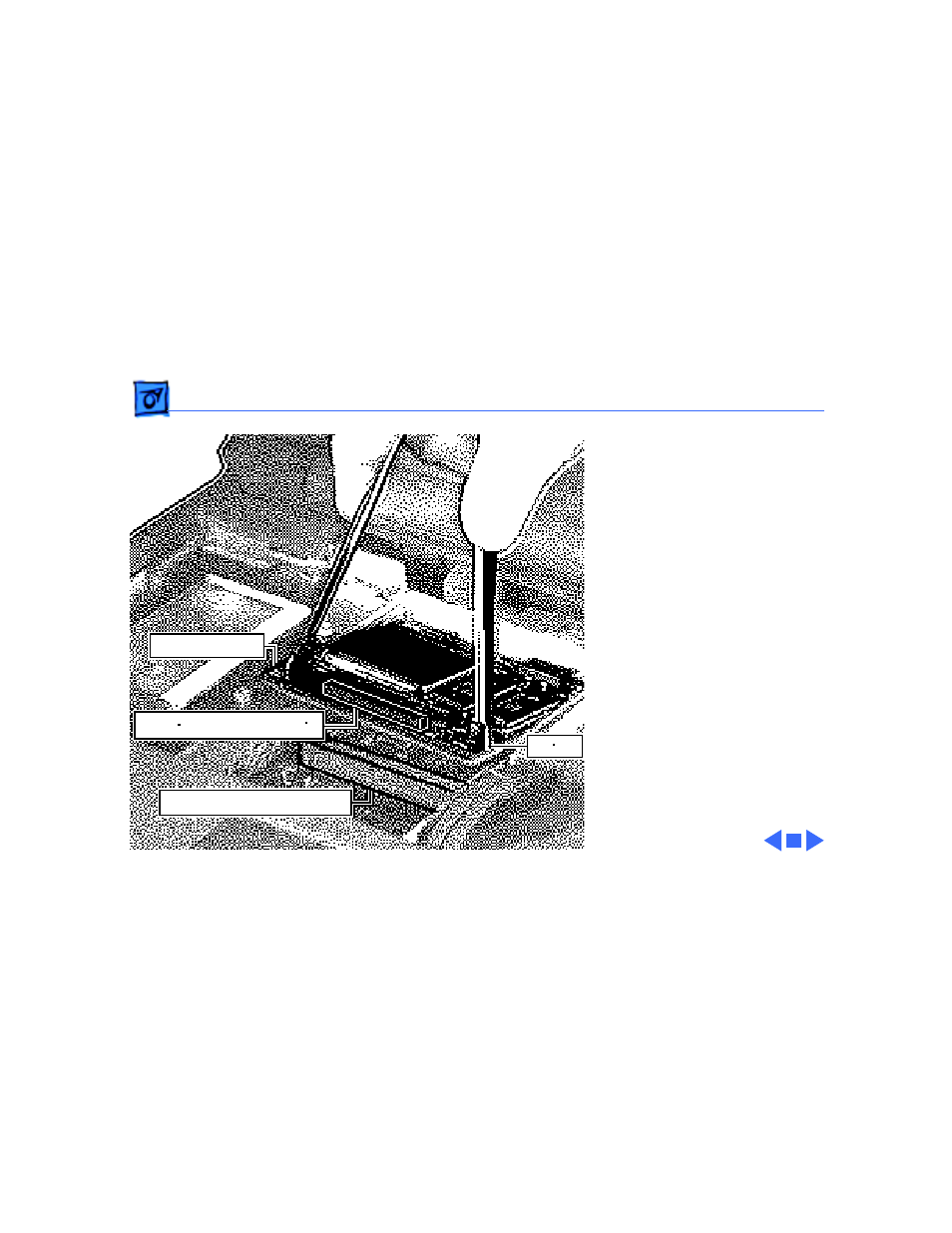

Place the legs of the IC
extractor in the notches
at the end of the daugh-
terboard and pull up.
Daughterboard
RAM Expansion Connector
Daughterboard Connector
Notch
