Apple Mac PowerBook 550c User Manual
Page 114
Take Apart
Motherboard - 57

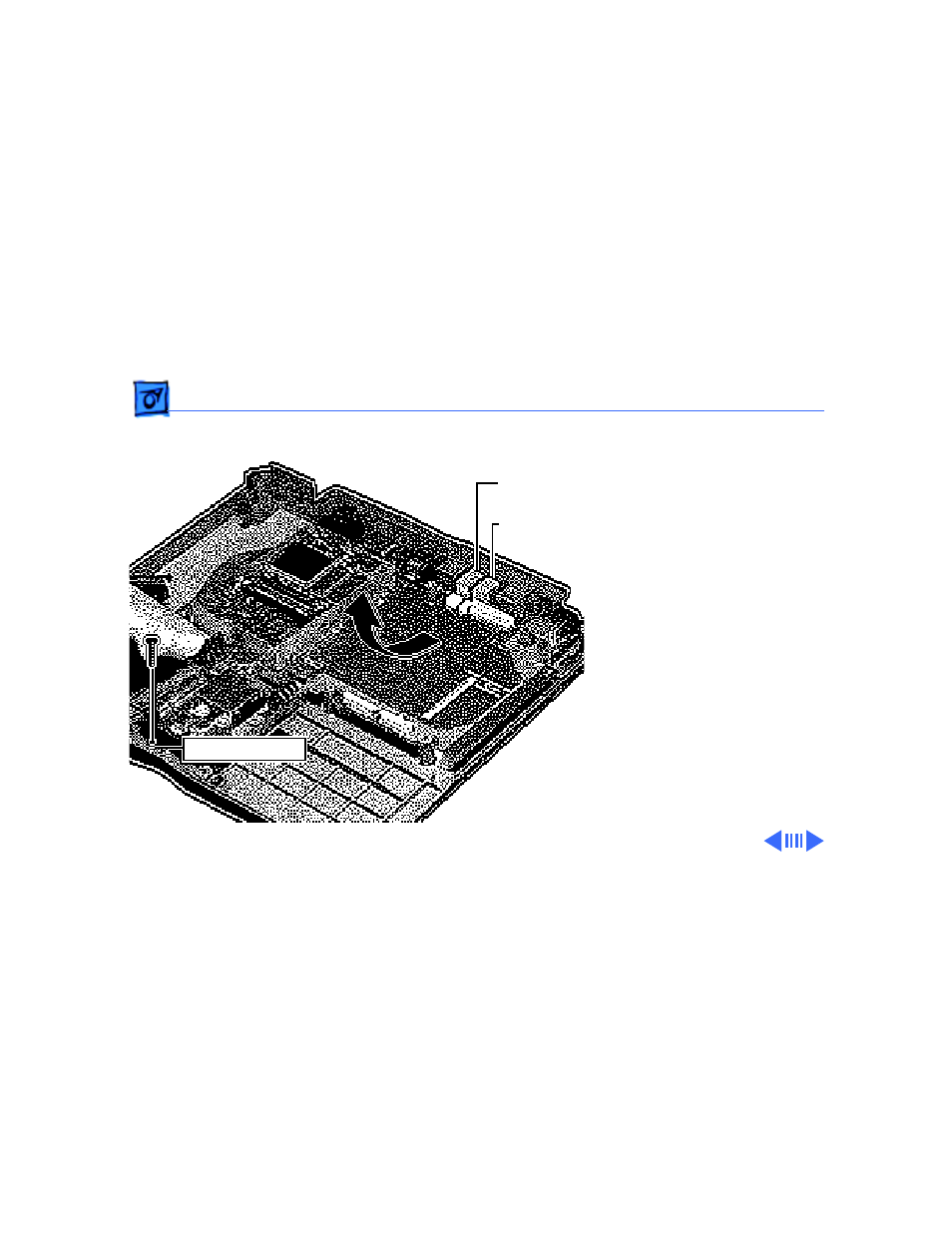

1 Remove the
motherboard mounting
screw and standoff.
2 Carefully pry the
motherboard from the
positioning peg located
below the standoff.
3 Slide the board forward
1/4 inch.
4
Caution:
In lifting the
motherboard, be careful
that the sound-in and
sound-out ports clear
the openings in the rear
panel.
Lift off the motherboard.
Sound-In
Sound-Out
Port
Standoff & Peg
Port
