Apple Mac PowerBook 550c User Manual
Page 60
Take Apart
Battery/PCMCIA Module - 3
3
Note:
The battery bezel
includes a separate latch
and latch spring.
Remove the bezel
carefully so these parts
do not fall out.

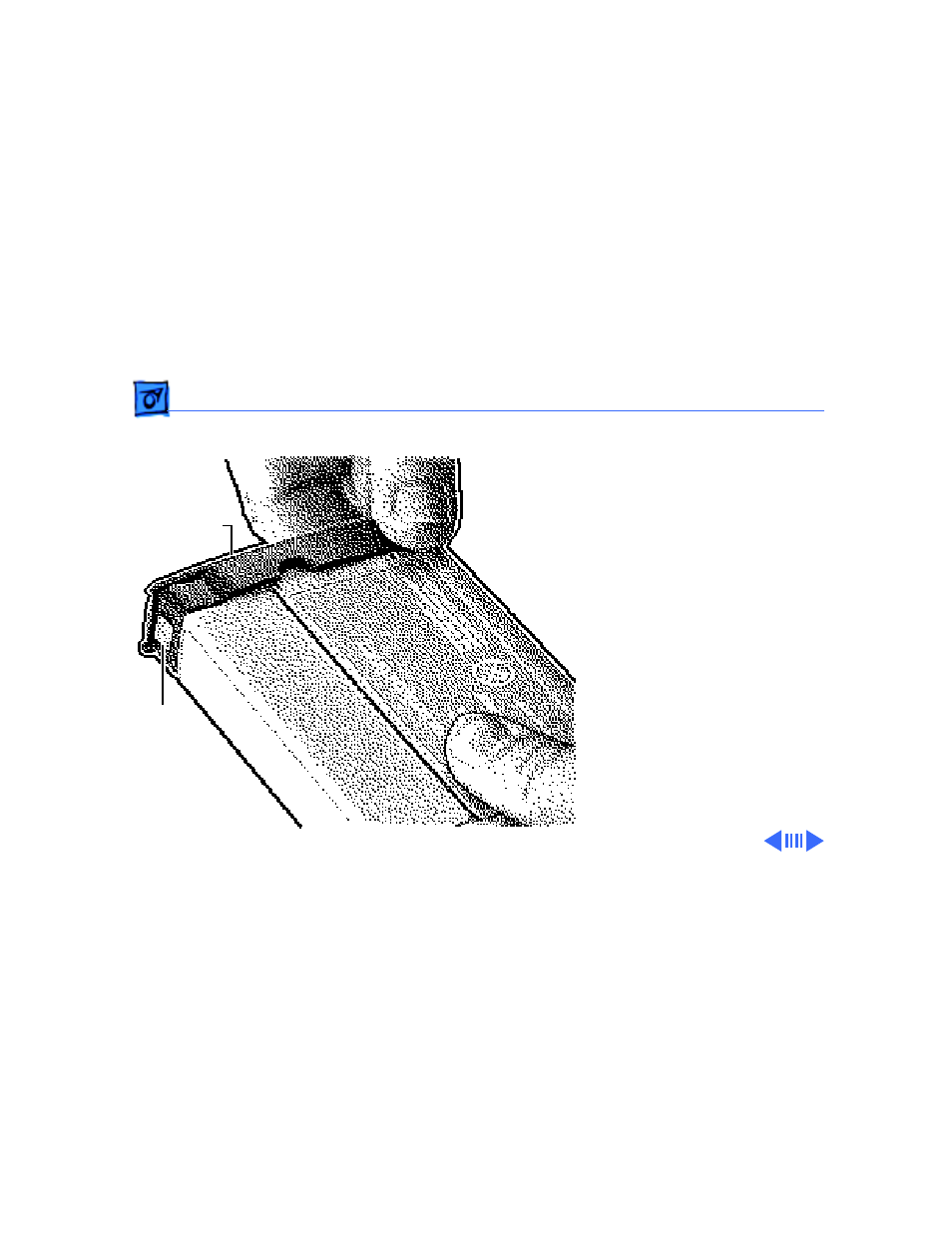

If you are replacing the
battery bezel, pry up
both ends of the bezel and
lift it off the main
battery.
Replacement Note:
Make
sure the battery bezel
latch spring is com-
pressed against the end
of the battery before
replacing the bezel.
Battery
Latch/
Spring
Bezel
