Apple Mac PowerBook 550c User Manual
Page 130
Take Apart
Trackpad Assembly - 73
3
Note:
The trackpad cable
assembly includes the
display actuator switch
and the trackpad button.
Disconnect the trackpad
cable assembly and
remove it from the unit.
Replacement Note:
Recon-
nect the backup battery
cable before reconnecting
the trackpad cable assembly.
Replacement Note:
Before
securing the two screws,
make sure the flex cable
routes on top of the
assembly.

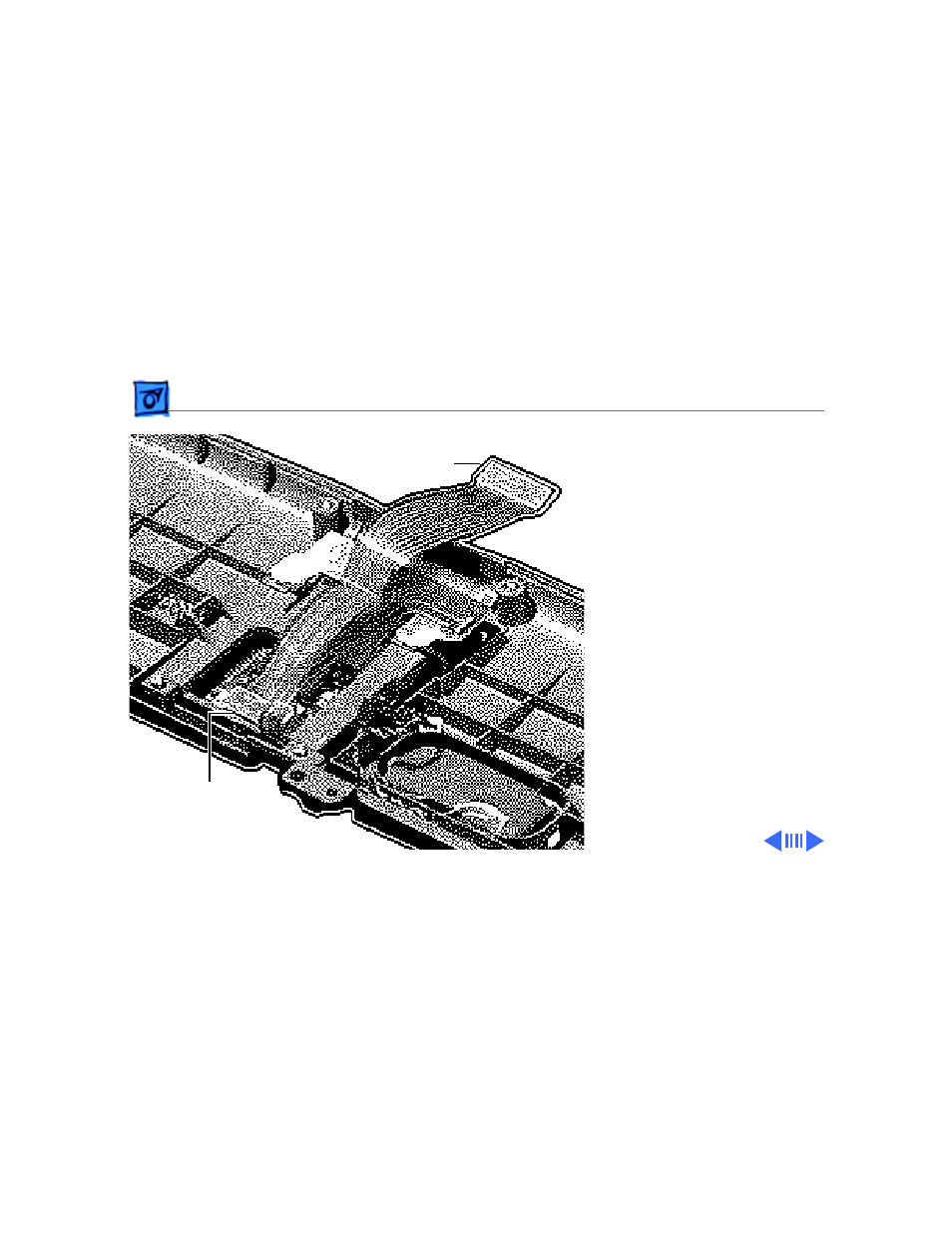

Trackpad Cable
Assembly
Trackpad Cable
Assembly Connector
