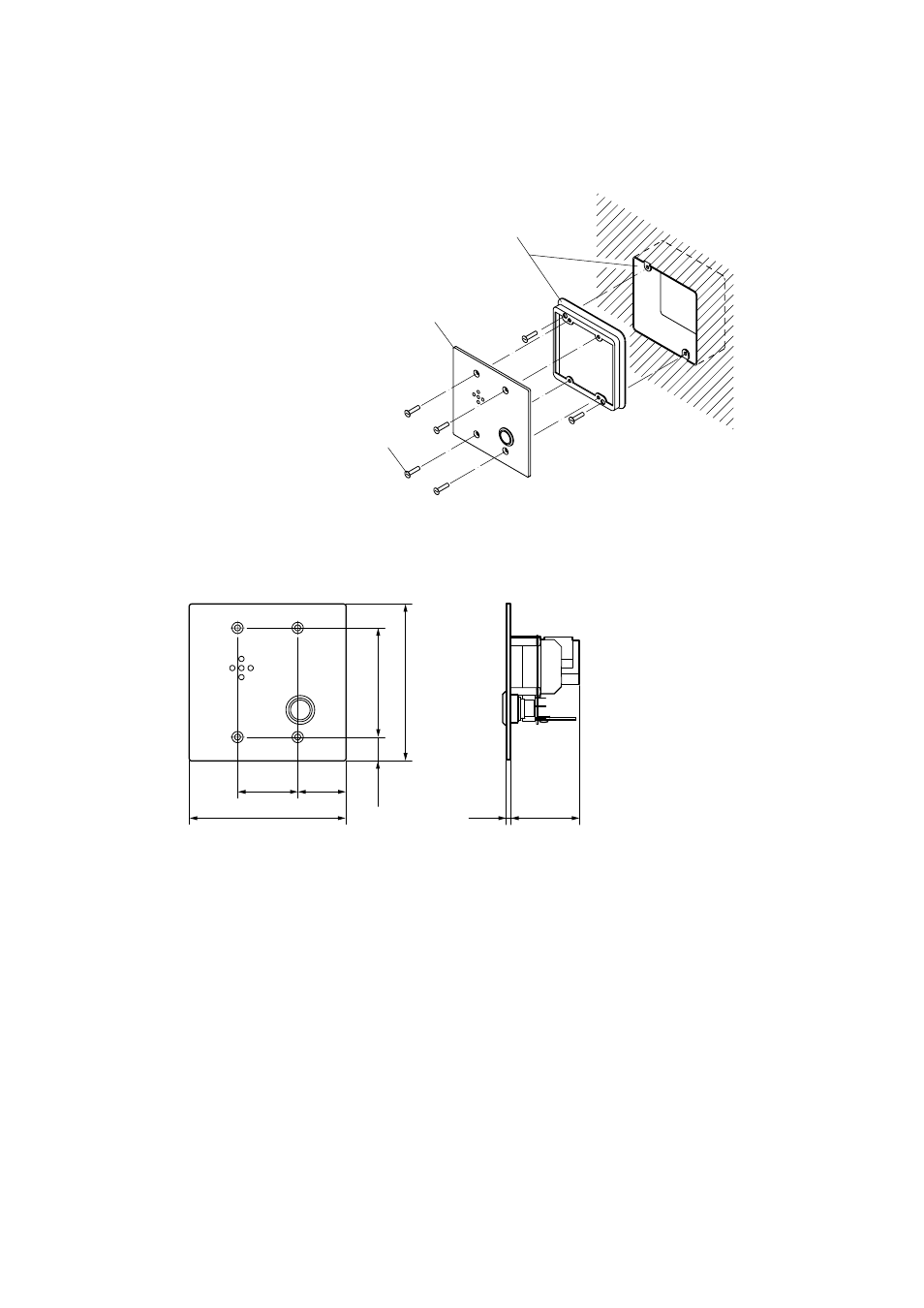

10.3. AI-RS150, AI-RS160, AI-RS170 and AI-RS180 Substations
Mount the substation to an electrical box mounted in the wall.
AI-RS150/-RS160/-RS170/-RS180
Oval head screw UNC No.6x18
2-gang electrical box (deep)
and adapter ring
46
120
52.5
*
2
*
2
43.5 (AI-RS150)
*
1
2 (AI-RS150)
3
*
1
37
18.2
83.5
120
Unit: mm
Dimensional diagram
