Splitter Configurations
3
Installation and Operation Guide
31
Column Pressure/Flow Calculator
Calculates flows and pressures for a given
set of column (or restrictor) dimensions (
These tools allow you to perform all the calculations needed to create a
custom splitter configuration. We recommend that you load the CD software
into your PC.
1 Insert the CD into the drive and click the Start icon in the bottom left of the
screen. Select
Run and type X:\ Setup, where X is the letter assigned to the
CD drive.
2 Click Start, then select Programs and the program you wish to run.

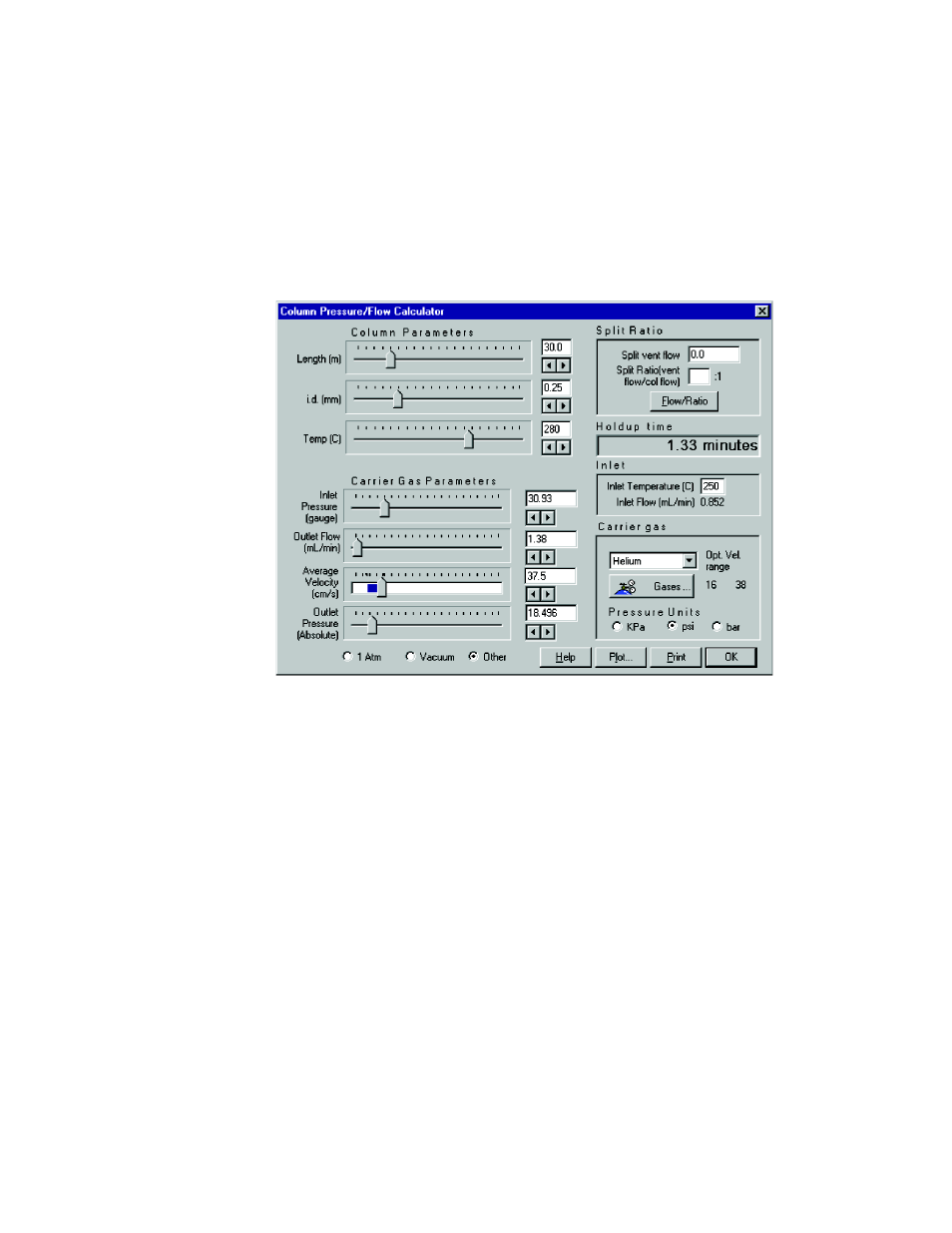

Figure 13
Column Flow/Pressure Calculator
