Hardware Installation
2
Installation and Operation Guide
23
6 Route the prebent tubing against the oven wall and top to keep it clean for
future maintenance. It should be behind the back detector location.
7 Screw the splitter assembly to the bracket (three screws). See
.

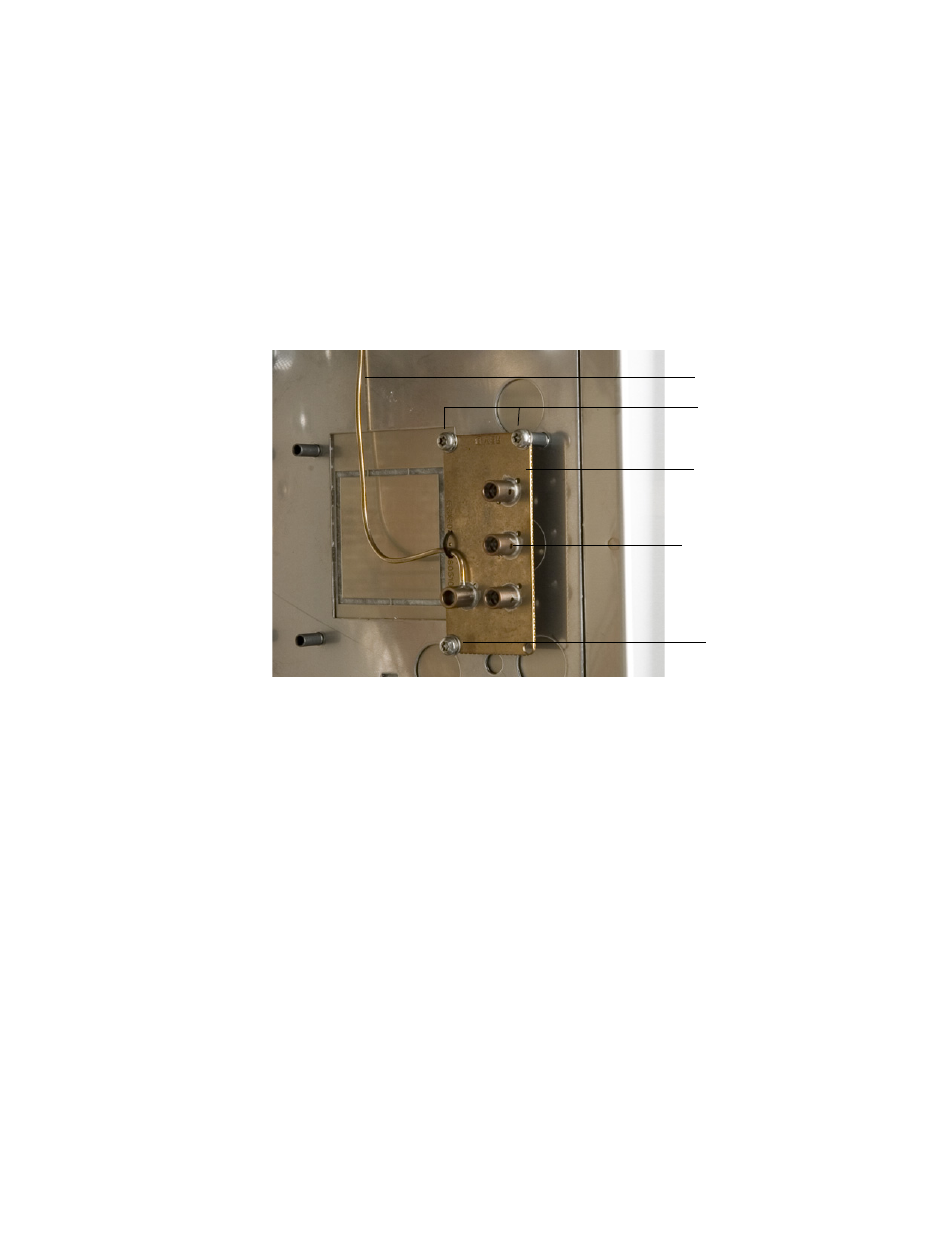

Figure 9
Installing the splitter assembly
Makeup gas tubing
Splitter assembly
Mounting screw
Mounting screws
Ferrule release hole
