500-E installation / opEration / sErvicE manual • 4.
39" (991 mm)
22-1/2" (572 mm)
2-1/2" (64 mm)
CL
19-1/16" (484 mm)
16-13/16" (411 mm)
17-3/16" (437 mm)
Electrical Connection
1-1/2” (38 mm)
from top
25" (635 mm)
100 F
150 200 250
30 0
350
OFF
Cord Length:
125V - 5 ft. (1524mm)
230V - 8 ft. (2438mm)
208-240V - 8 ft. (2438mm)
39-1/4" (997 mm)
23-3/16" (589 mm)
8-1/16" (205 mm)
CL
19-3/8" (493 mm)
13-13/16" (351 mm)
Cavity
1-1/4" (31 mm)
13-1/8" (333 mm)
Cavity
16-1/8" (409mm)
17-1/8" (434 mm)
21-1/2" (547 mm)
25-9/16" (650 mm)
Electrical
Connection
1-5/8
" (40mm)
from top
Electrical
Cavity
Cord Length:
125V - 5 ft. (1524mm)
230V - 8 ft. (2438mm)
208-240V - 8 ft. (2438mm)
500-E/HD
500-E/Deluxe

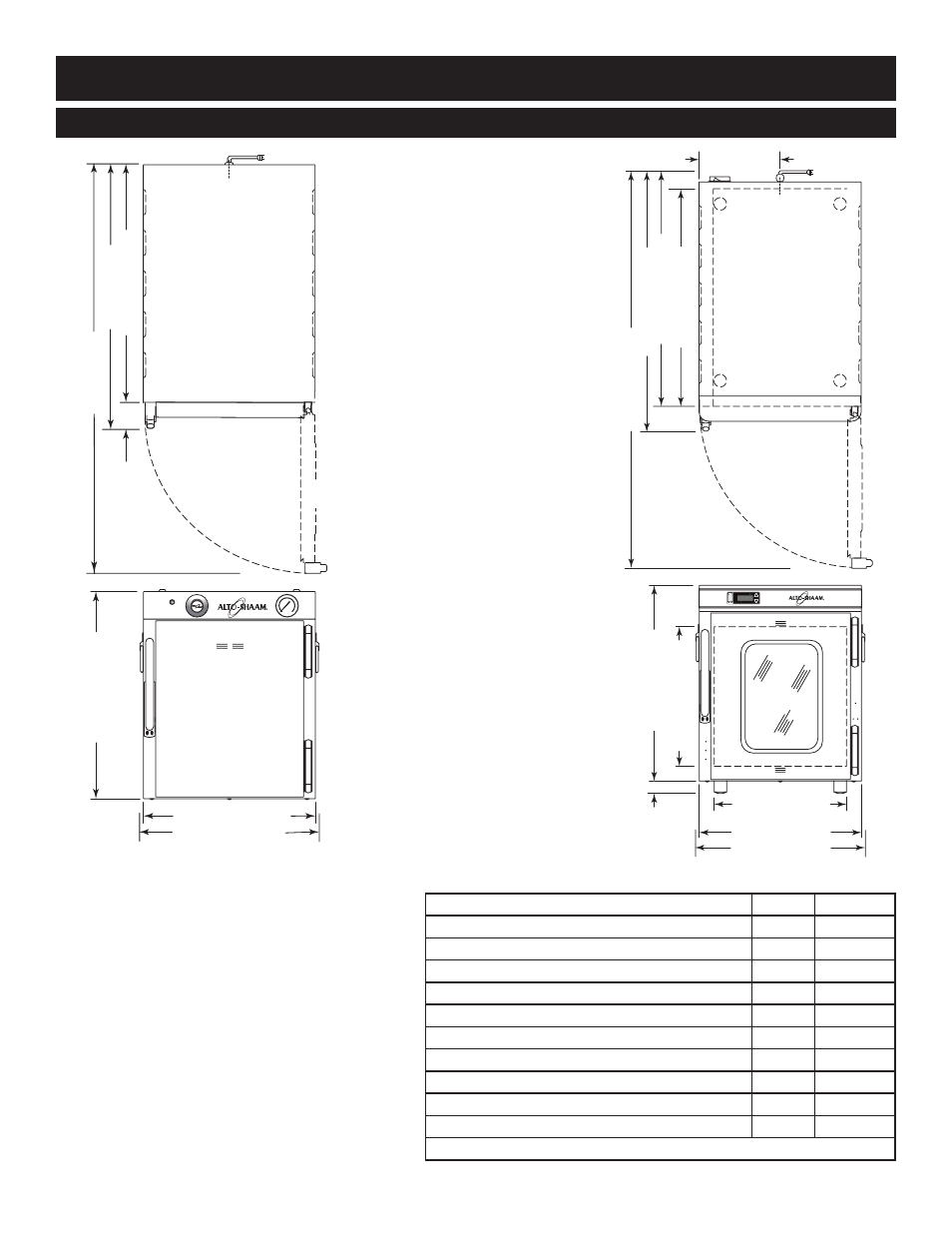

Outside Dimensions
STACKING
Cabinets can be stacked in multiples. There
are four (4) 3/16" (5mm) rounded projections
on the top and bottom of each cabinet to
permit stacking A center support stacking
hardware kit (E-5091) must be used to stack
the deluxe cabinets.
500-E/HD stacked height: 38-1/8" (968mm)
500-E/Deluxe stacked height: 40-1/16" (1018mm)
S I T E I N S T A L L A T I O N
I N S T A L L A T I O N
OPTIONS & ACCESSORIES 500-E/HD 500-E/Deluxe
Casters*, 3" (76mm) (4) — 14227*
Casters*, 5" (127mm) (4) — 4007*
Caster Stand Assembly with 5" (127mm) casters (4) 15377 —
Legs*, 6" (152mm) (4) — 5205*
Leg Stand Assembly, with 6" (152mm) legs (4) 15378 —
Pan Slide Support (2 required ) 11002 —
Shelf, chrome plated wire SH-2107 —
Stand Base Assembly — E-5089*
Stacking Hardware ( center support , between units ) — E-5091
Transport Door Latches ( factory installation ) LT-2035 —
* s t a n d b a s e a s s e m b l y m u s t b e o r d e r e d w h e n o r d e r i n g c a s t e r s o r l e g s
