Alto-Shaam HALO HEAT 500-E/DELUXE User Manual
Page 19
500-E
installation
/
opEration
/
sErvicE
manual
• 17.
Top Rear View
D A N G E R
DISCONNECT UNIT FROM
POWER SOURCE BEFORE
CLEANING OR SERVICING.
C A U T I O N
THIS SECTION IS PROVIDED FOR THE ASSISTANCE
OF QUALIFIED SERVICE TECHNICIANS ONLY AND
IS NOT INTENDED FOR USE BY UNTRAINED OR
UNAUTHORIZED SERVICE PERSONNEL.
ITEM
DESCRIPTION
PART NO. QTY
1
BUSHING
BU-3013
1
2
BEEPER
BP-3567
1
3
BUSHING
BU-3007
2
4
RELAY
RL-34434
1
5
CLAMP
CM-3585
1
6
BOARD, POWER
BA-33554
1
7
SENSOR BLOCK
SN-33546
1
8
TERMINAL BLOCK
BK-3019
1
9
GROUND SCREW
SC-2190
1
10
SWITCH, CIRCUIT BREAKER
SW-33826
1
11
CONTROL ASSEMBLY
CC-34222
1
12
BUSHING
BU-3964
1
13
CORDSET, 125V
CD-3232
1
CORDSET, 230V
CD-3922
1
CORDSET, 208-240V
CD-3551
1
Back of Cabinet
Cabinet Front
a
b
c
d
e
f
g
h
i
j
k
d
m
l
j

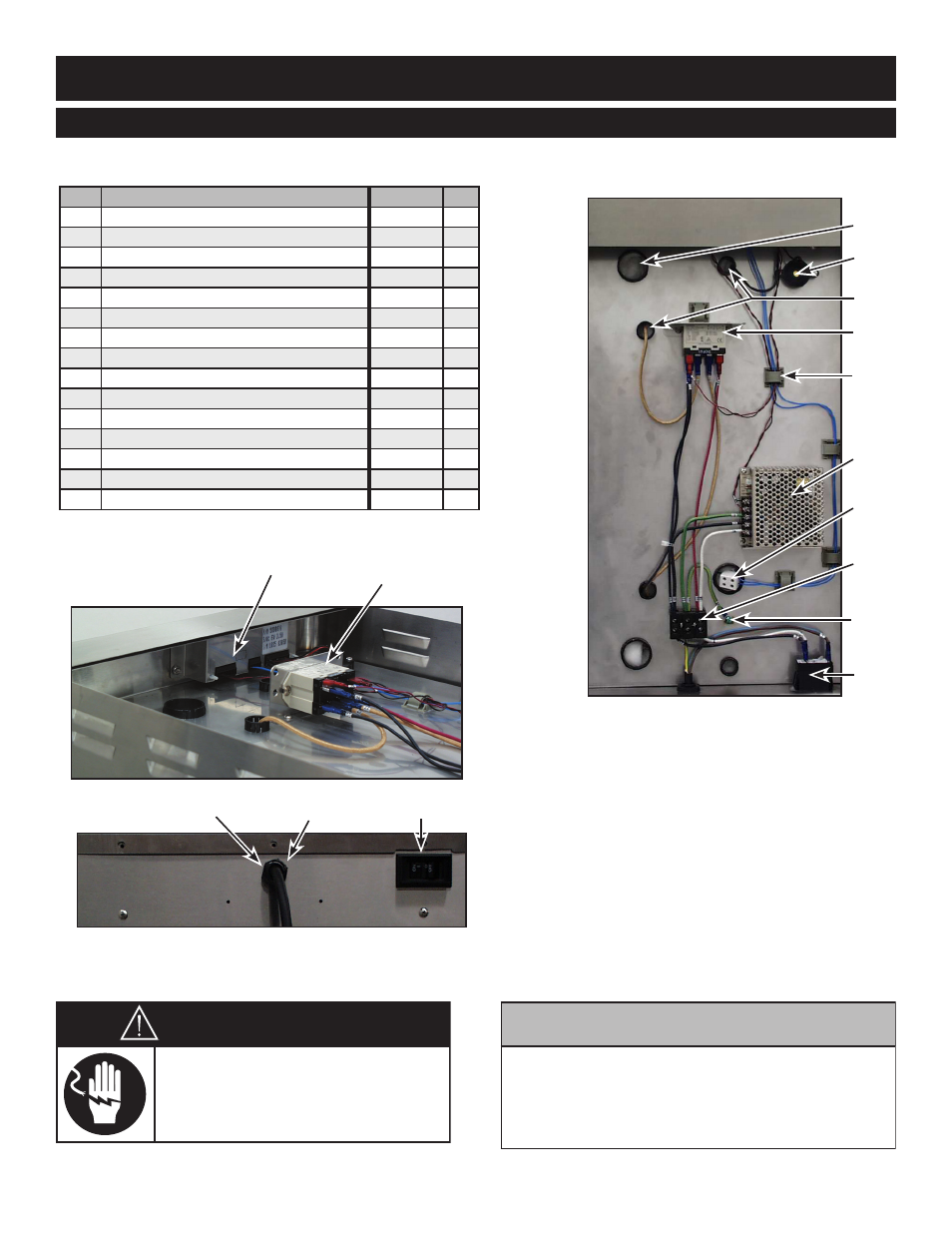

Electrical Components
Part numbers and drawings are subject to change without notice.
