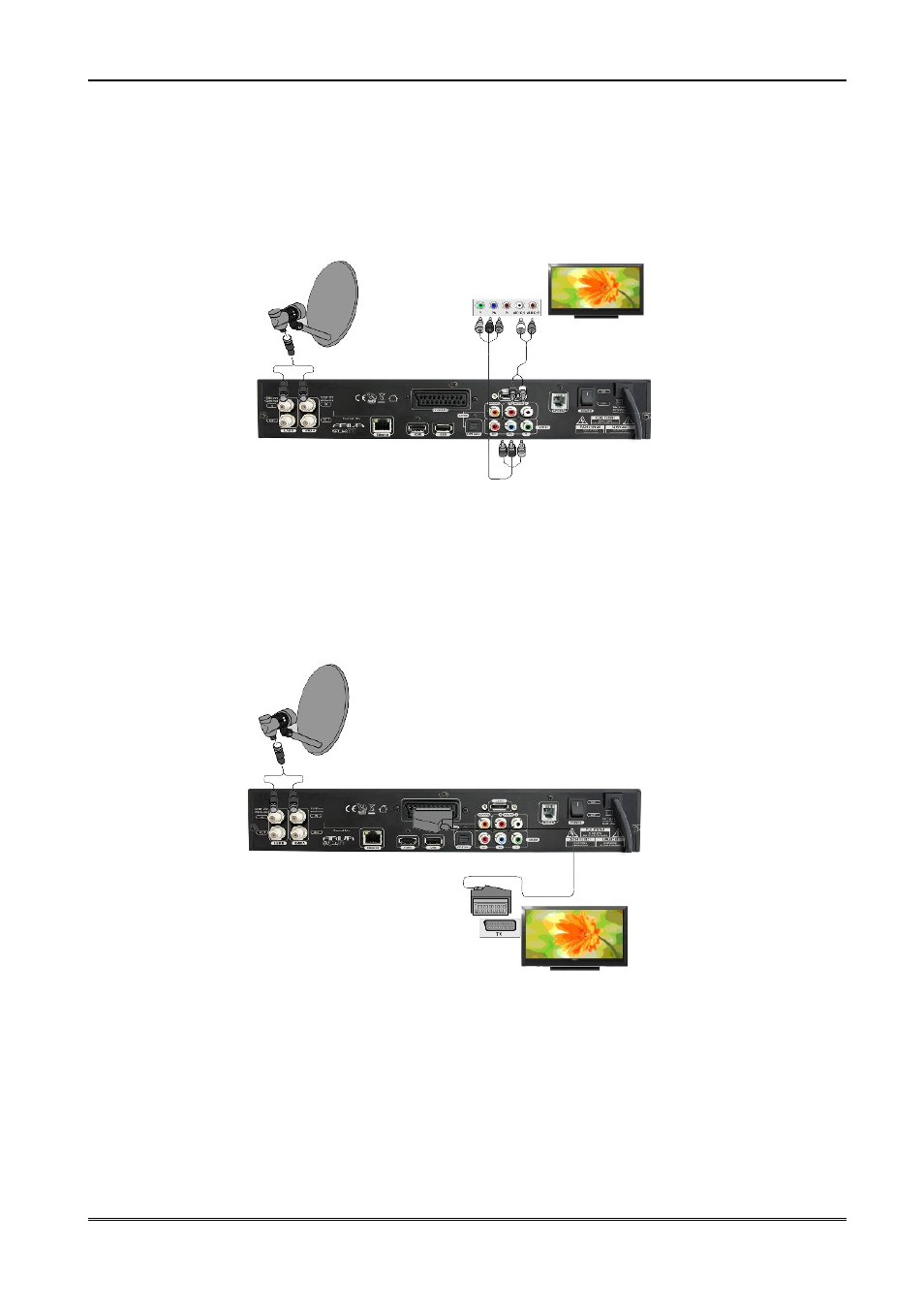

9.3 Connecting to the TV via Component (YPbPr) cable
1. Connect the antenna to the LNB IN socket of the receiver.
2. Connect the video and audio with five cinch cables to the television set.
Three cables, colored green, blue and red, are used for the component signal. The two
remaining cables, red and white, are used to connect audio (right and left channel).
9.4 Connecting to the TV with a SCART cable
1. Connect the antenna to the LBN IN socket of the receiver.
2. Connect the television to the port in accordance with the description. We recommend
using shielded SCART cables.
9.5 Connecting an audio system
1. Digital sound (including surround sound, if broadcast) may be obtained through two
sockets: electrical (SPDIF) or optical (OPTICAL). The following figure presents the SPDIF
connection.
2. Stereo sound may be obtained by connecting cinch cables (white and red) for the left and
right channels.
