A.J. Antunes & Co SCT II 8601200070 User Manual
Sct ii installation information, Dimensions wiring diagram, Specifications

A. J. ANTUNES & CO. www.ajantunes.com 180 Kehoe Blvd., Carol Stream, Illinois 60188

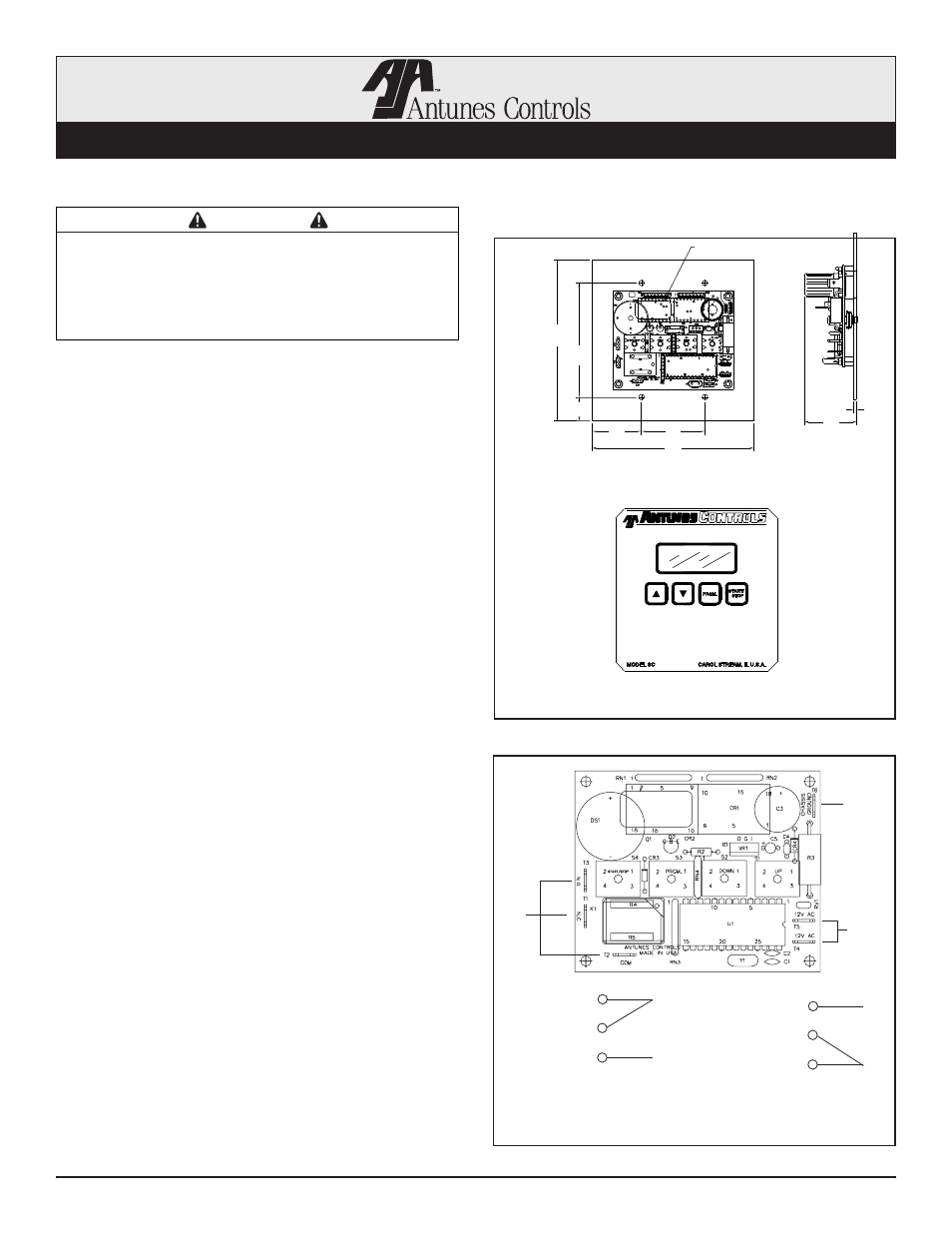

Dimensions
Wiring Diagram
IMPORTANT
Please read these instructions carefully to assure
correct installation. This equipment must be
installed by a licensed electrician. Prior to being
put into operation, check all wiring and function of
the unit.
SCT II Installation Information
Specifications
Input: Time programmable from the front of the unit
Power: 12 VAC +/-10% @ .25 Amp., 50/60 Hz.
Control: On/Off
Output: 3 Amp. Relay or 6-14VDC @ 30MA
Ambient Operating Temp: -30°F to 140°F (-22°C to 60°C)
Connections: Quick disconnects or wire leads
Shipping Weight: 1 lb. (.45 kg)
Programming Features
99:59 Minutes/Seconds or Hours/Minutes
Countdown programming in minutes and seconds
Recall program time while counting down
Flashing LED Alarm at end of time cycle indication
1-630-784-1000 Fax: 630-784-1651
Page 1 of 2
P/N 1011099 06/10
1-800-253-2991
Rela
y Controls
Po
we
r
Ear
th Ground
(O
ptional
)
N.C.
COM
N.O.
N.C.
COM
N.O.
Relay Not Energized
Contacts COM and
NC Closed
Relay Energized
Contacts COM and
NC Closed
.09”
(2 mm)
4.60”
(117 mm)
3.25”
(83 mm)
.68
(17 mm)
1.39”
(35 mm)
1.81”
(46 mm)
4.60”
(117 mm)
Unit Identification Label
1.44”
(37 mm)
Height
Width
Depth
Label
.09”
(2 mm)
4.60”
(117 mm)
3.25”
(83 mm)
.68
(17 mm)
1.39”
(35 mm)
1.81”
(46 mm)
4.60”
(117 mm)
Unit Identification Label
1.44”
(37 mm)
Height
Width
Depth
Label
.09”
(2 mm)
4.60”
(117 mm)
3.25”
(83 mm)
.68
(17 mm)
1.39”
(35 mm)
1.81”
(46 mm)
4.60”
(117 mm)
Unit Identification Label
1.44”
(37 mm)
Height
Width
Depth
Label
NOTE: Dimensions are for reference only.
