A. J. ANTUNES & CO. www.ajantunes.com 180 Kehoe Blvd., Carol Stream, Illinois 60188

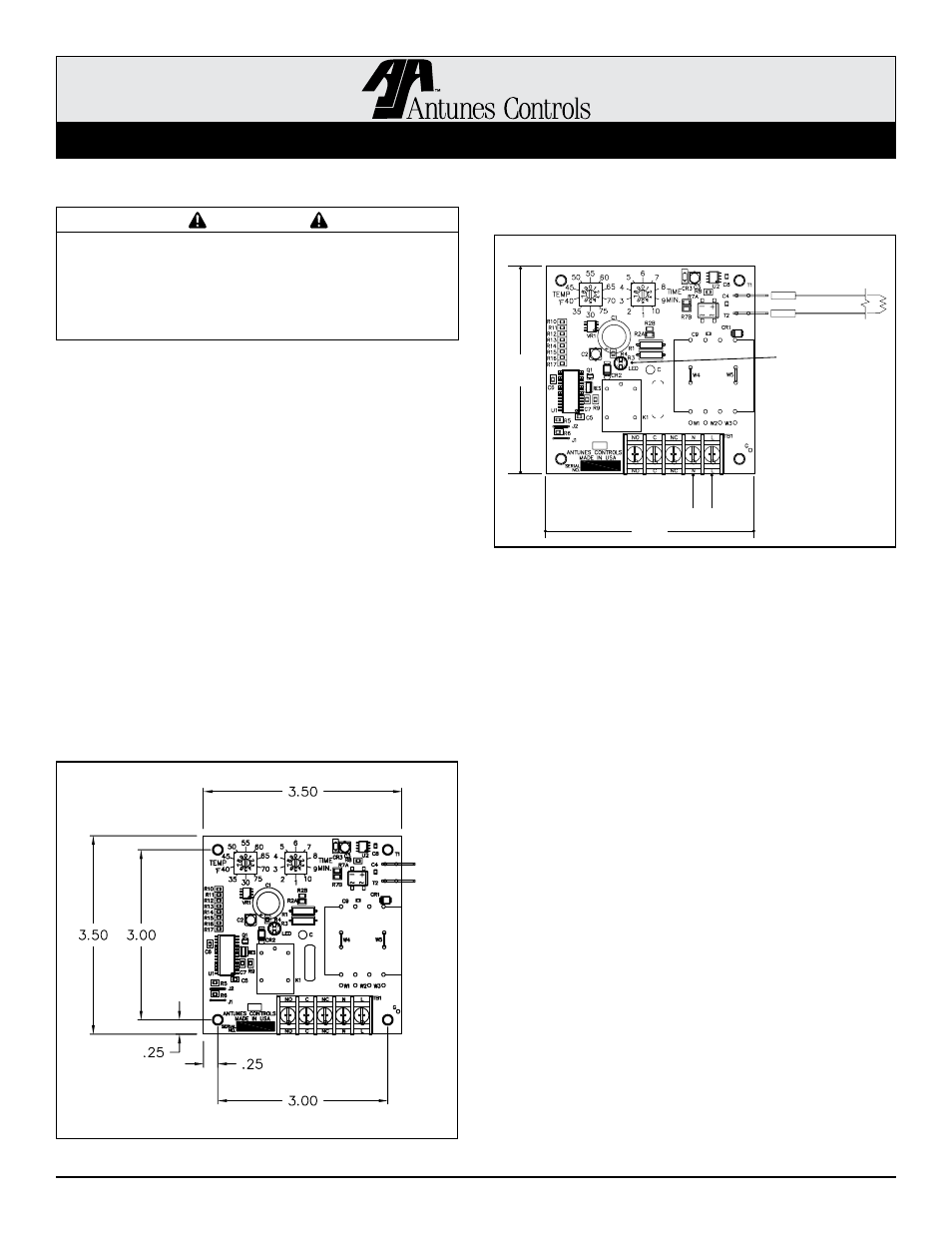

Dimensions
Installation
IMPORTANT
Please read these instructions carefully to assure
correct installation. This equipment must be
installed by a licensed electrician. Prior to being
put into operation, check all wiring and function of
the unit.
DF Installation Information
Specifications
Sensor Type: 10K thermistor probe, 10- or 20-foot
lengths with bolt-down eyelet sensor.
Input Power: 24 VAC, 50/60 Hz. or 115 VAC, 50/60 Hz.
Adjustable Digital Inputs: Time: 1-10 minutes in 1 min.
steps - Temperature: 30ºF–75ºF in 5º increments.
Outputs: Output drive for Freezestat relay K2 and
associated LED2. Relay is normally de-energized—if
the preset temperature is not reached within the preset
time the relay will latch (energized) thereby opening the
normally closed contact and turning off the externally
controlled device. Only removing and reapplying power
will reset the circuit and start the time period over again.
Relay: S.P.D.T., 8 amps, dry contact output,
1/4” spade terminal connection.
Shipping Weight: 1 lb. (.45 kg) without cover
2 lbs. (.9 kg) with cover
Operation
Output drive for Freezestat relay K2 and associated LED2.
Using an appropriate tool, set the Freezestat to the
proper temperature and time intervals. Attach thermistor,
(available in 10 or 20 foot lengths with bolt down
eyelet sensor). To avoid electrical shock or damage
to equipment, disconnect power before installing or
servicing.
Under normal operating conditions the relay is normally
de-energized, if the preset temperature is not reached
within the preset time, the relay will latch (energized)
thereby opening the normally closed contact and turning
off the externally controlled device.
Only removing and reapplying power will reset the circuit
and start the time period over again.
1-630-784-1000 Fax: 630-784-1651
Page 1 of 2
P/N 1011094 06/10
1-800-253-2991
To Thermistor
Indicates
Fault
Condition
120V/24V
Temperature
Settings
Timer
Settings
3.5”
88.9 mm
3.5”
88.9 mm
NOTE: Dimensions are for reference only.
