16 DEUTSCH 16 ENGLISH
ITEM DESCRIPTION
1 BELT
2 TOP COVER
3 PIN
4 SIDE COVER
5 FRONT PANEL
6 GAUGE COVER
7 LOW PRESSURE GAUGE
8 HIGH PRESSURE GAUGE
9 RED/GREEN INDICATOR LIGHT
10 START BUTTON
11 KNOB
12 CIRCUIT BREAKER
13 POWER SWITCH
14 POWER SUPPLY CORD
15 SOCKET
16 RUBBER PLUG
17 BASE PLATE
18 RUBBER FOOT

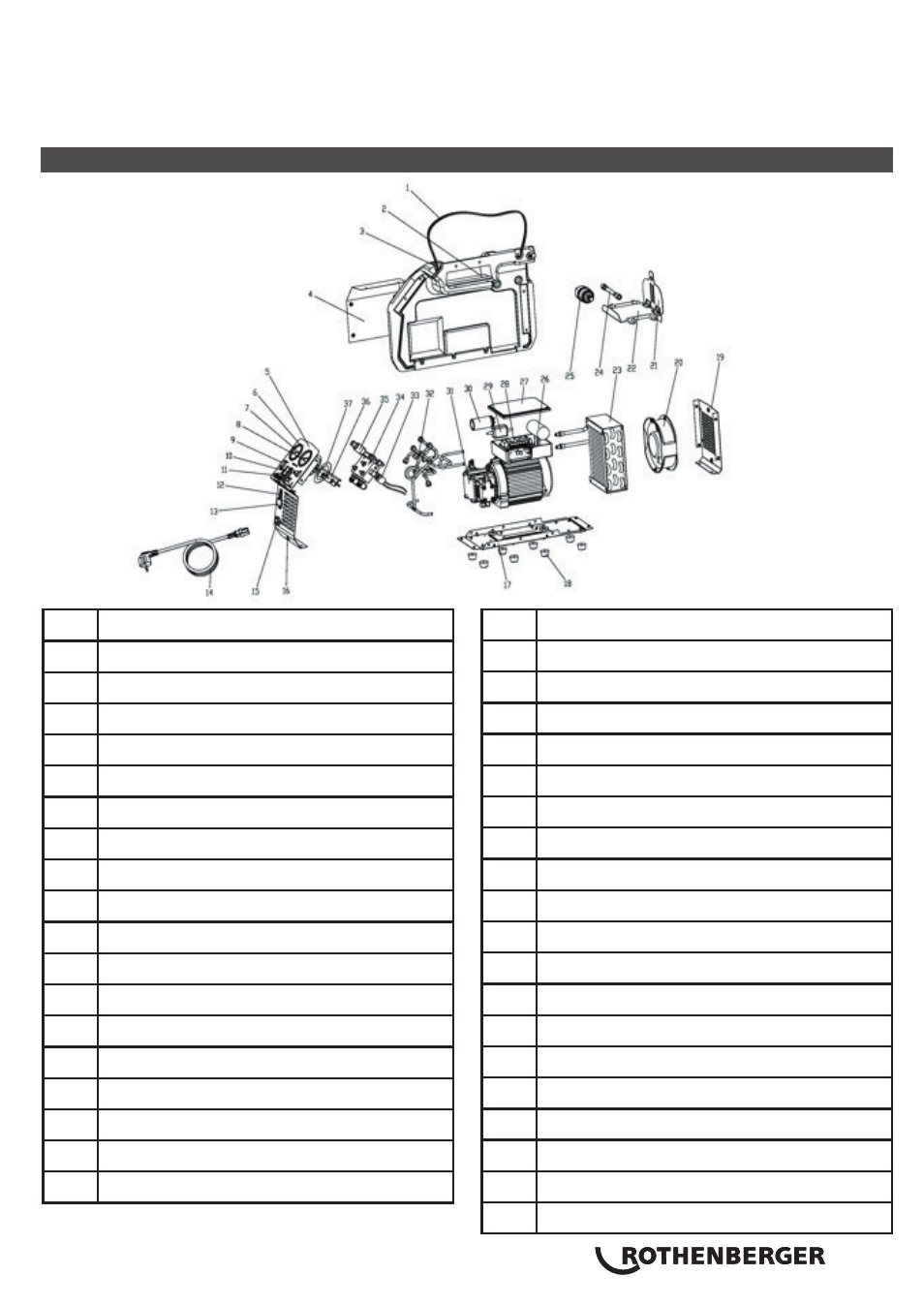

2. Parts diagram and parts list
INSTRUCTIONS FOR USE AND MAINTENANCE
ITEM DESCRIPTION
19 BACK PANEL
20 AXIAL FAN
21 STORAGE HOPPER COVER
22 STORAGE HOPPER CLAPBOARD
23 CONDENSER
24 4"HOSE
25 FILTER
26 CAPACITOR
27 SWITCH COVER
28 CIRCUIT BOARD
29 POTENTIAL TRANSFORMER
30 CAPACITOR
31 COMPRESSOR
32 COPPER PIPE KIT
33 HIGH PRESSURE SWITCH
34 CONTROL VALVE
35 LOW-PRESSURE SWITCH
36 U - DISHED PLATE
37 GAUGE GASKET
