While it is being pushed, the reel cable may loop: Breakage may result!
During advancement through several pipe bends, the camera image is always upright.
After work is finished, pull the reel cable out of the pipe and push it directly onto the reel.
Clean the camera head under running water (spraying — no pressure jet).
Place the camera head into the holder.
Turn the device off with the left-hand button of the monitor unit.
Close the flap.
10. ROCAM® positioning
E
The grey, cylinder-shaped positioning probe can optionally be screwed by hand between the
camera head and the bending spring.
The positioning probe emits magnetic fields that are received by the positioning receiver and are
transformed visually and acoustically.
The 33 kHz measuring system can penetrate masonry, stone, wood and plastic.
The intensity of the signal changes depending on the position and distance from the positioning
receiver.

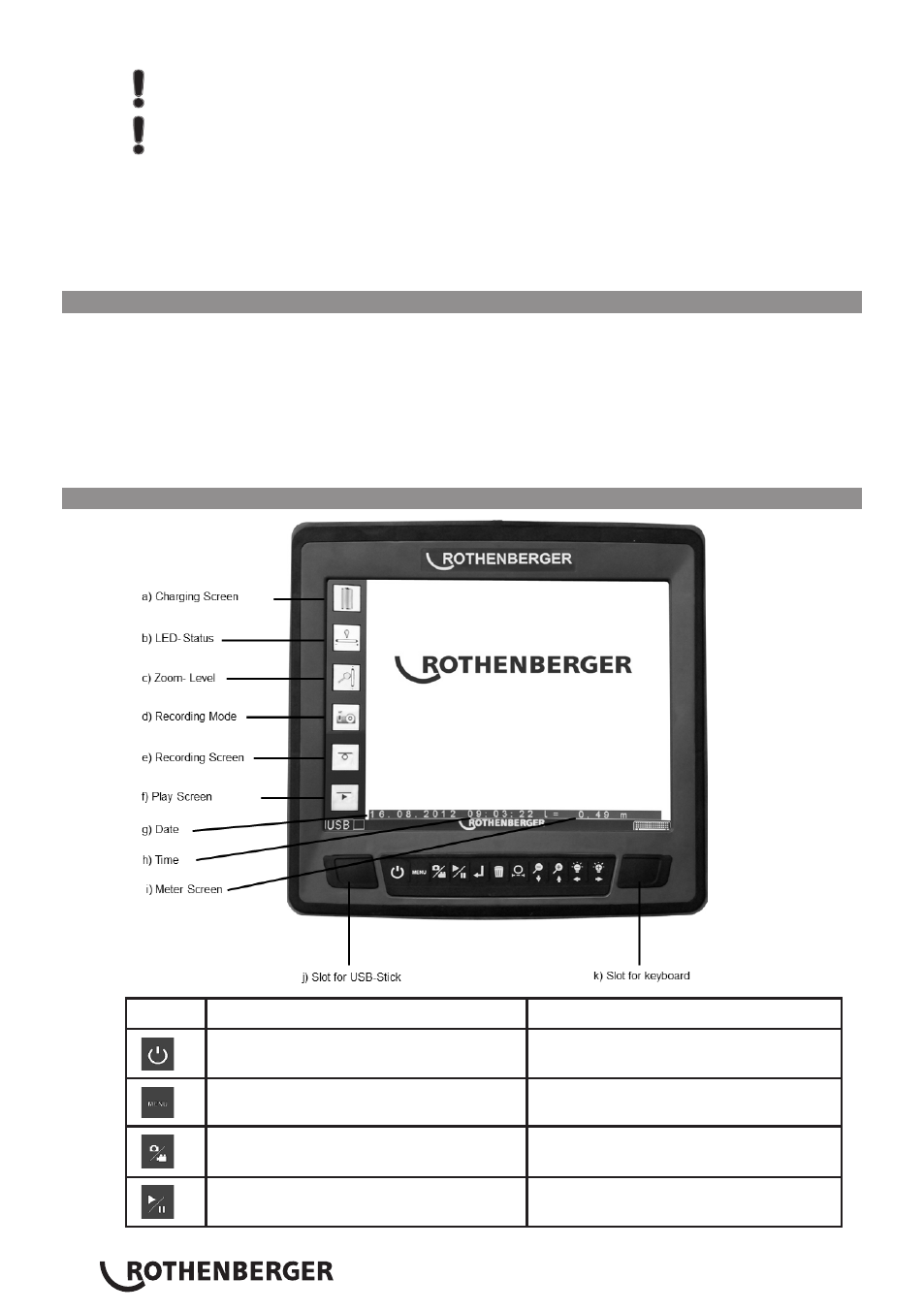

11. Monitor unit operating elements
Icon
FunCtion 1 (live-screen)
FunCtion 2 (menü)
Turn device on and off
Call up main menu
Back
Switch between
photo and video recording
Play/ Pause
