Page 6
Part No. 0110-003022
Page 6
Rev 1 3-5-13 DSL

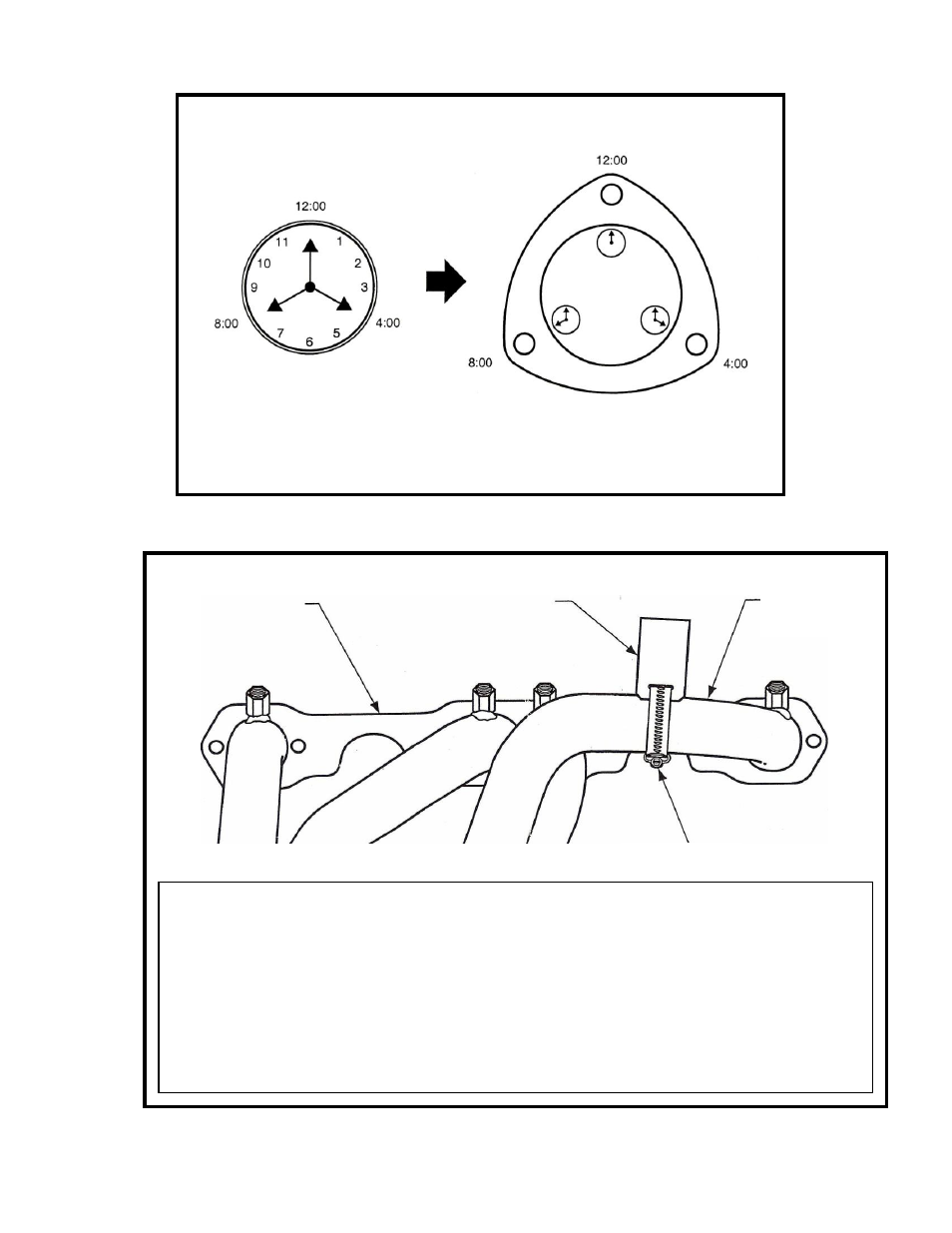

Figure 3
Figure 4
HEADER
PRIMARY
TUBE
HOT AIR PICKUP
HEADER FLANGE
WORM GEAR
HOSE CLAMP
This tube is supplied to attach the hot air tube from the air cleaner to the header.
- Clamp the hot air pickup tube to the header primary tube using a supplied worm gear
hose clamp.
- The location is determined by the stock configuration.
- If your vehicle is equipped with a solid tube for the hot air pickup, ensure that the
adapter is located in a position that is as close to stock as possible.
- Attach the flex hose from the air cleaner to the hot air pickup tube mounted on the
header and secure it using a supplied worm gear hose clamp.
- Flexible emissions duct hose is available at most retail auto parts stores should yours require
replacement.
HOT AIR PICKUP TUBE
