Advanced Programming Features

NOTICE: To make these changes, enlist the use of a helper to either hold the aircraft to prevent unintended

flyaways or to make the changes on the transmitter.

CAUTION: Make sure your receiver is off BEFORE making any advanced programming

changes to prevent the motor from arming.

The following programming features are only recommended for advanced radio users. The photos in this

section show the E-flite MLP4DSM transmitter; however, the procedures apply to all compatible transmitters.

Prior to making any advanced programming feature changes it is necessary to:
1. Choose an empty model location

2. Select model type ACRO

3. Perform a model reset

4. Set all channels to normal

5. Ensure transmitter and receiver are bound

CAUTION: Secure the aircraft safely to a work bench or enlist the use of a helper while accessing the

advanced programming features. Mistakes in programming could cause the motor to run unexpectedly.

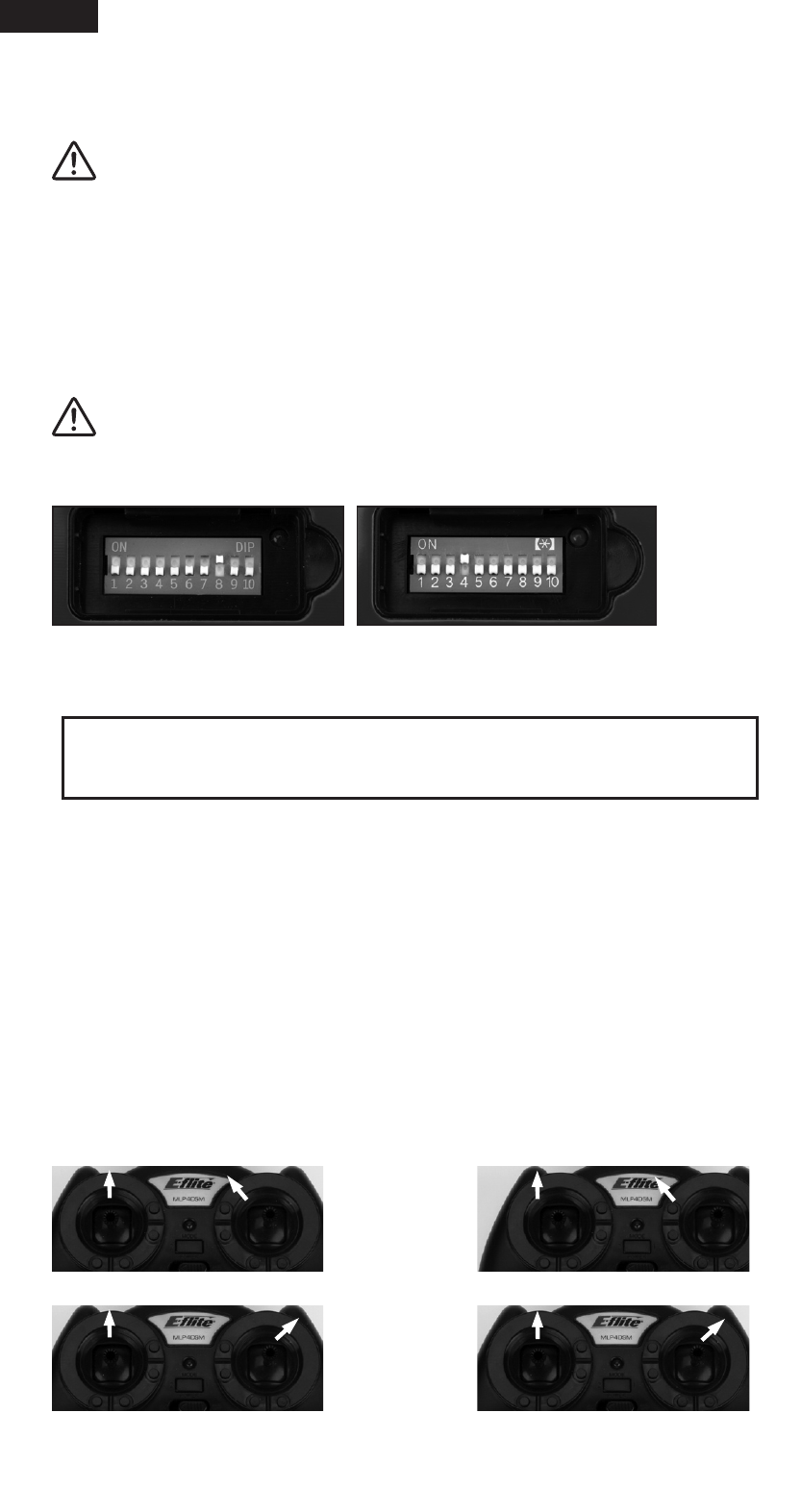

LP5DSM, HP6DSM

If using an E-flite LP5DSM or HP6DSM transmitter, position your channel reversal dip switches as follows:

LP5DSM Transmitter

HP6DSM Transmitter

Keep a record of settings BEFORE making changes so you can go back to those settings for your other

aircraft.

Reversing Servos

Servo reversing is done through your transmitter’s servo reversing function. You may also reverse

the actual servos by following the instructions below.

Reversing The Servos on the Receiver Board

This feature reverses the servos at the board level, making it useful for implementing features such as

elevons while using transmitters with limited programming options.
NOTICE: For all advanced programming changes, you must hold sticks in the correct position with

the transmitter on and the receiver off.

1. Ensure a successful bind was completed

2. Turn transmitter on

3. Move THRO stick to full throttle position

4. Move control sticks to the corresponding position for the servo to be reversed (see illustration)

5. While holding this position, plug the battery into the receiver; power receiver

6. The LED on the receiver will go solid and within 5 seconds the LED will flash 3 times quickly,

indicating servo is now reversed

7. Disconnect battery from receiver

8. Turn transmitter off

Mode 1

CH2

1. Full THRO

2. Down ELEV

3. Left AILE

THRO/RUDD ELEV/AILE

ELEV/RUDD THRO/AILE

CH3

1. Full THRO

2. Down ELEV

3. Right AILE

Mode 2
