Spektrum SPMAR6400LBL User Manual

Page 4

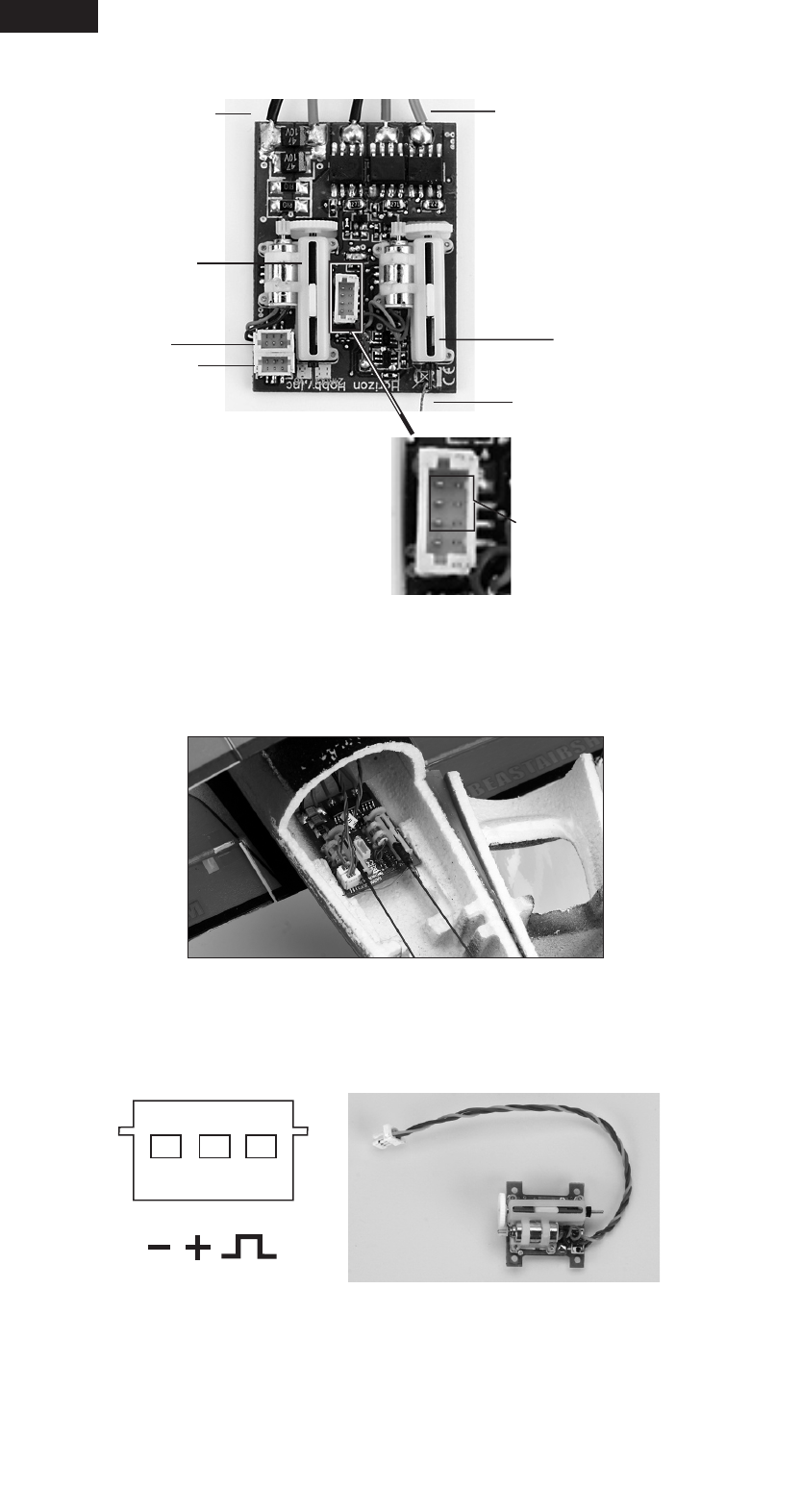

Receiver Installation
We recommend using double-sided foam tape strips and/or minimal hot glue in the corners to

install your receiver in the fuselage. The servos must be in the appropriate position to attach to and

drive the elevator and rudder pushrods. Note: Installation will vary depending upon application.

Servos
The AR6400LBL incorporates integrated servos; optional specially designed servos are available

through Spektrum. NOTICE: Using any other servo(s) may cause damage to the receiver and/or

the servo and may void the warranty.

Installing and Plugging in the Optional Servos
Use double-sided foam tape strips and/or minimal hot glue to mount the servos in place. The servos

must be in the appropriate position to attach to the corresponding pushrods. Plug the servo leads into

the appropriate servo ports in the receiver noting the polarity of the servo connector. Installation will

vary depending on application.

Optional Servo (SPMAS2000/SPMAS2000L)

AR6400LBL Features and Ports

Antenna

Rudder (CH4)

Servo

X-Port (all 4 pins)

Gear (CH5) (upper 3 pins)

Aileron (CH2)

Battery Input

Reversed Aileron (CH2)

or Aux1 (CH6)

Elevator (CH3)

Servo

Brushless

Motor Leads
