Spektrum SPMAR6410LBL User Manual

Page 8

Servos

The AR6410LBL incorporates integrated servos; optional specially designed

servos are available through Spektrum.

NOTICE: Using any servo(s) other than those designed for use with the AR6410L-

BL may cause damage to the receiver and/or servo(s) and will void the warranty.

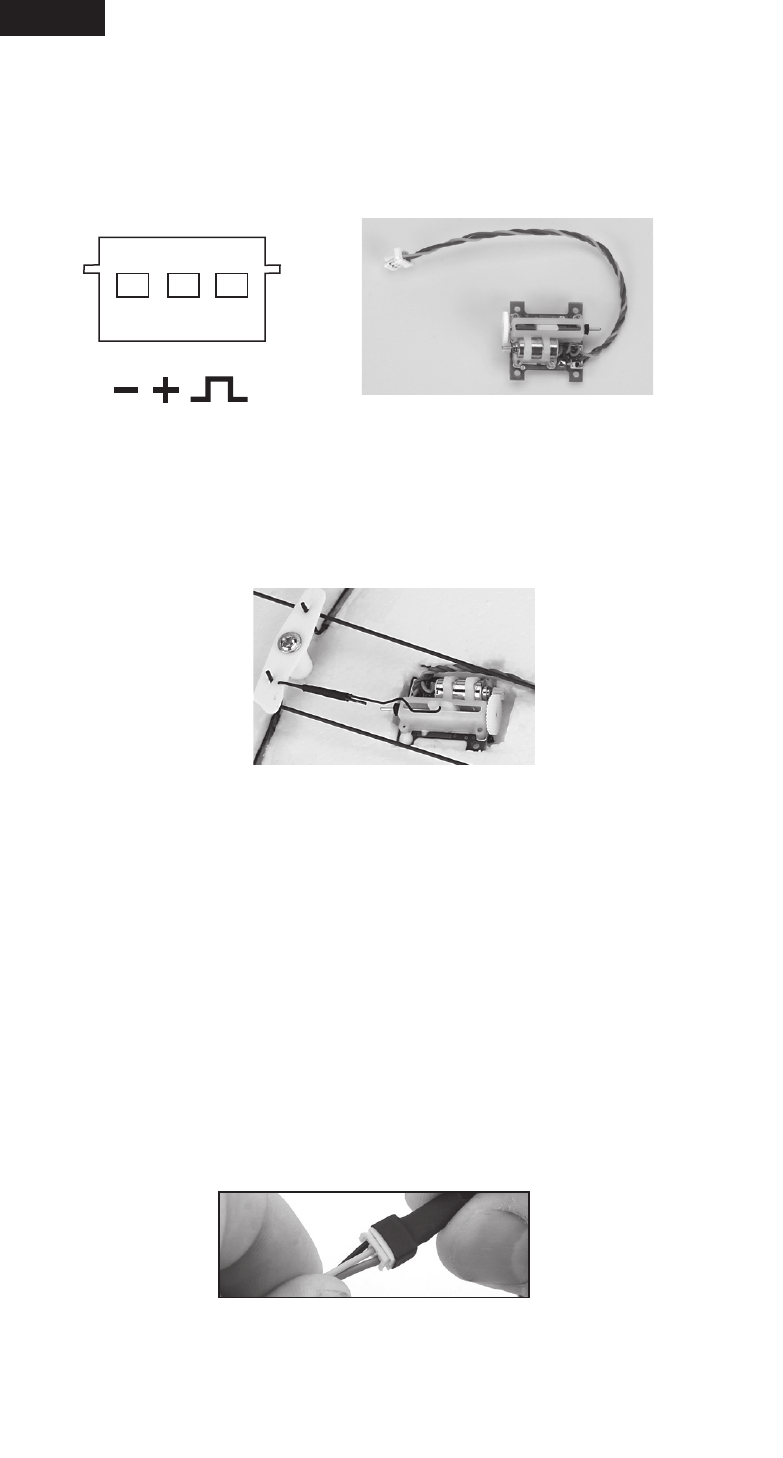

Installing and Plugging in the Optional Servos

Use double-sided foam tape strips and/or minimal hot glue to mount the servos in

place. The servos must be in the appropriate position to attach to the corre-

sponding pushrods. Plug the servo leads into the appropriate servo ports in the

receiver, noting the polarity of the servo connector. Installation will vary depending

on the application.

Smart Bind

™

You must first bind the receiver to the transmitter for it to operate. Binding is

teaching the receiver the specific code of the transmitter so it only connects to

that transmitter. The AR6410LBL features Smart Bind. When the receiver is first

powered, the receiver looks for the signal of its previously bound transmitter for

5 seconds. If no signal is found, the receiver automatically goes into bind mode,

indicated by the flashing LED.

Binding

1. Make sure the flight battery is fully charged.

2. Confirm the flight battery is disconnected from the receiver/ESC unit and the

transmitter is turned off.

3. Plug the flight battery into the receiver’s battery connector. After 5 seconds, the

LED on the receiver begins to flash.

4. After verifying the LED is flashing on the receiver, bind the receiver to the

transmitter (see your transmitter’s manual or the supplement that follows).

Optional Linear Servo
