Speed Controller:
Type: Integrated programmable brushless
Max continuous current: 4.9 amps
Overload protection current: 5A for 500ms
BEC continuous current: 1A
BEC overload protection current: 1A, 4.2V
Low-voltage cutoff: <6.3V motor pulsing, <6.1V motor cuts off and LED flashes
Over-current protection: 5A motor cuts off until throttle stick is pulled
down to idle
Temperature protection: 120C motor cuts off
Programming features: See the “Programming the Brushless ESC” Section

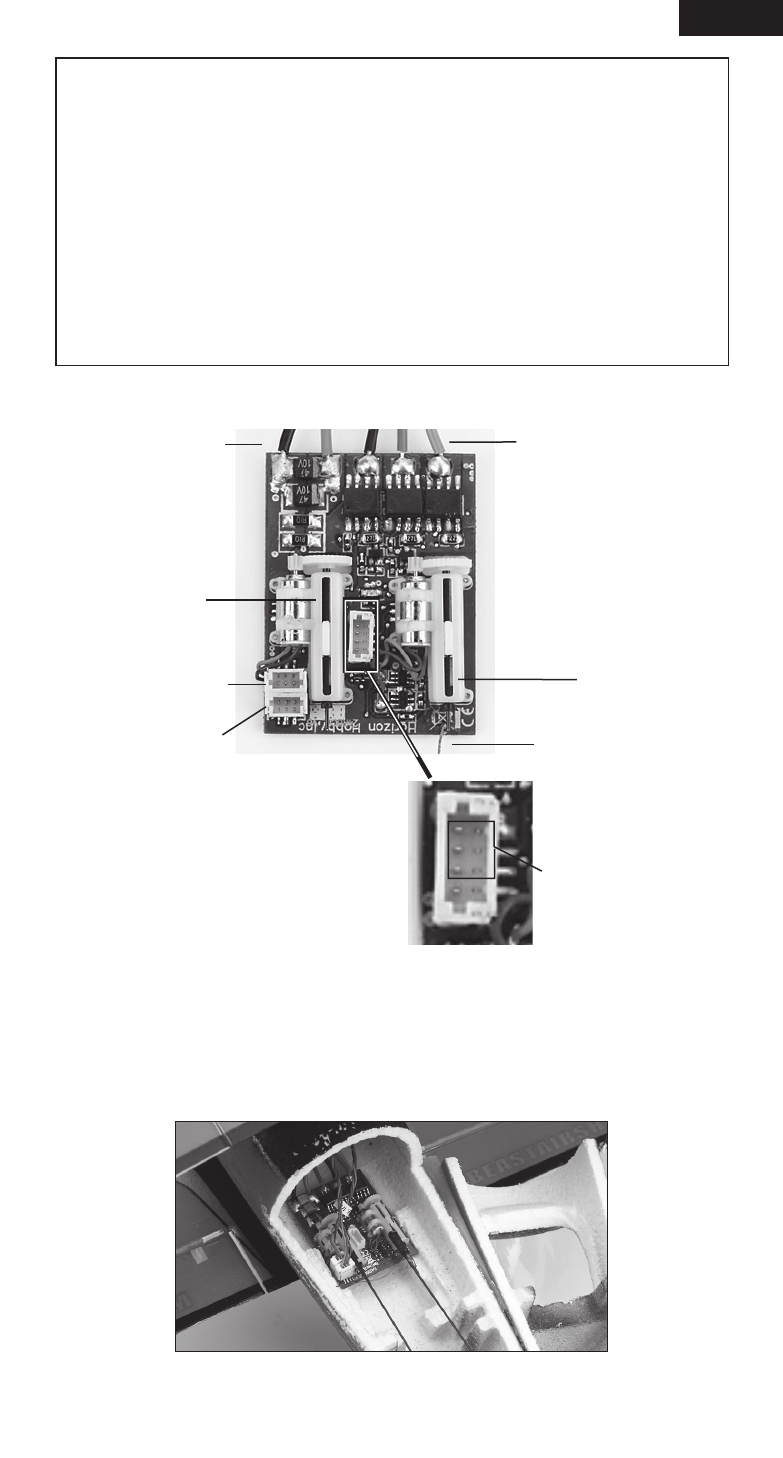

AR6400LBL Features and Ports
Receiver Installation
We recommend using double-sided foam tape strips and/or minimal hot glue
in the corners to install your receiver in the fuselage. The servos must be in the
appropriate position to attach to and drive the elevator and rudder pushrods.
Installation will vary depending upon application.
Antenna
Elevator (CH3)
Servo
X-Port (all 4 pins) OR
Gear (CH5) (upper
3 pins)
Aileron (CH2)
Battery Input
Reversed Aileron
(CH2) or Aux1 (CH6)
Rudder (CH4)
Servo
Brushless
Motor Leads
