AR600 User Guide
The AR600 features DSM2 ™ technology and is compatible with all Spektrum ™ and JR ® aircraft
radios that support DSM2 technology, like the 12X, 11X, X9503, X9303, DX8, DX7, DX7se, DX6i,
DX5e and Module Systems.
Note: The AR600 receiver is not compatible with the DX6 parkflyer radio system.
Features
• Full Range
• QuickConnect with Brownout Detection
• Resolution: 2048
• Flight Log and Telemetry Compatible
Specifications:
Type: Full Range Sport Receiver
Channels: 6
Modulation: DSM2
Dimension (WxLxH): 21.6 x 30.1 x 12.3mm
Weight: 7.0 Grams
Input Voltage Range: 3.5–9.6V
Resolution: 2048
Compatibility: All DSM2 Aircraft Transmitters and Module Systems
Receiver Installation

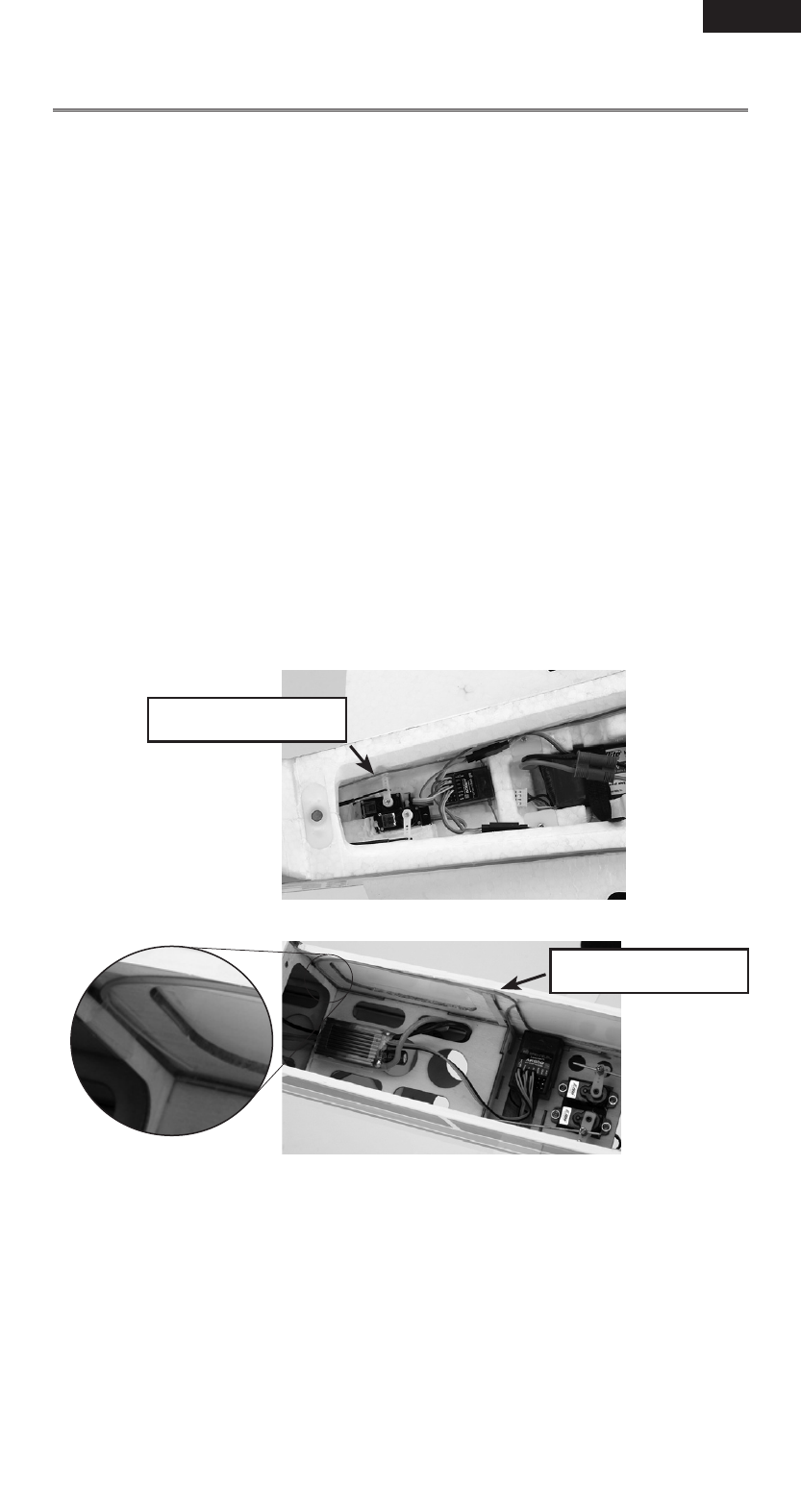

Example of AR600 installed in ParkZone ® Extra 300
Example of AR600 installed in E-flite ® Alpha 450
For optimum RF link performance, mount the antennas for best possible signal reception for the
aircraft in all possible attitudes and positions. Orient the antennas perpendicular to each other -
one vertical and one horizontal. (see Receiver Installation). Mount the long antenna in a position
perpendicular at least 2 inches away from the short antenna using tape.
Hold Indicator
The AR600 features a red LED (labeled H). This LED indicates the number of holds that have occurred
since the receiver was last powered on. The LED will flash the number of holds then pause (e.g., flash,
flash, flash, pause flash, flash, flash, pause) This indicates three holds. Note that holds are reset to
zero when the receiver is turned off.
Tape antenna in place.
Do not allow tip to touch metal .
Tape antenna in place.
Do not allow tip to touch metal .
