Specifications:
Type: Parkflyer
Channels: 6
Modulation: DSM2, DSMX
Dimension (WxLxH): AR6115 - 21 x 32 x 11.6mm
AR6115e - 21 x 34.0 x 10mm
Weight: AR6115 - 4.8 g
AR6115e - 4.8 g
Input Voltage Range: 3.5–9.6V
Resolution: 2048
Compatibility: All DSM2 and DSMX Aircraft Transmitters and Module Systems
Receiver Installation

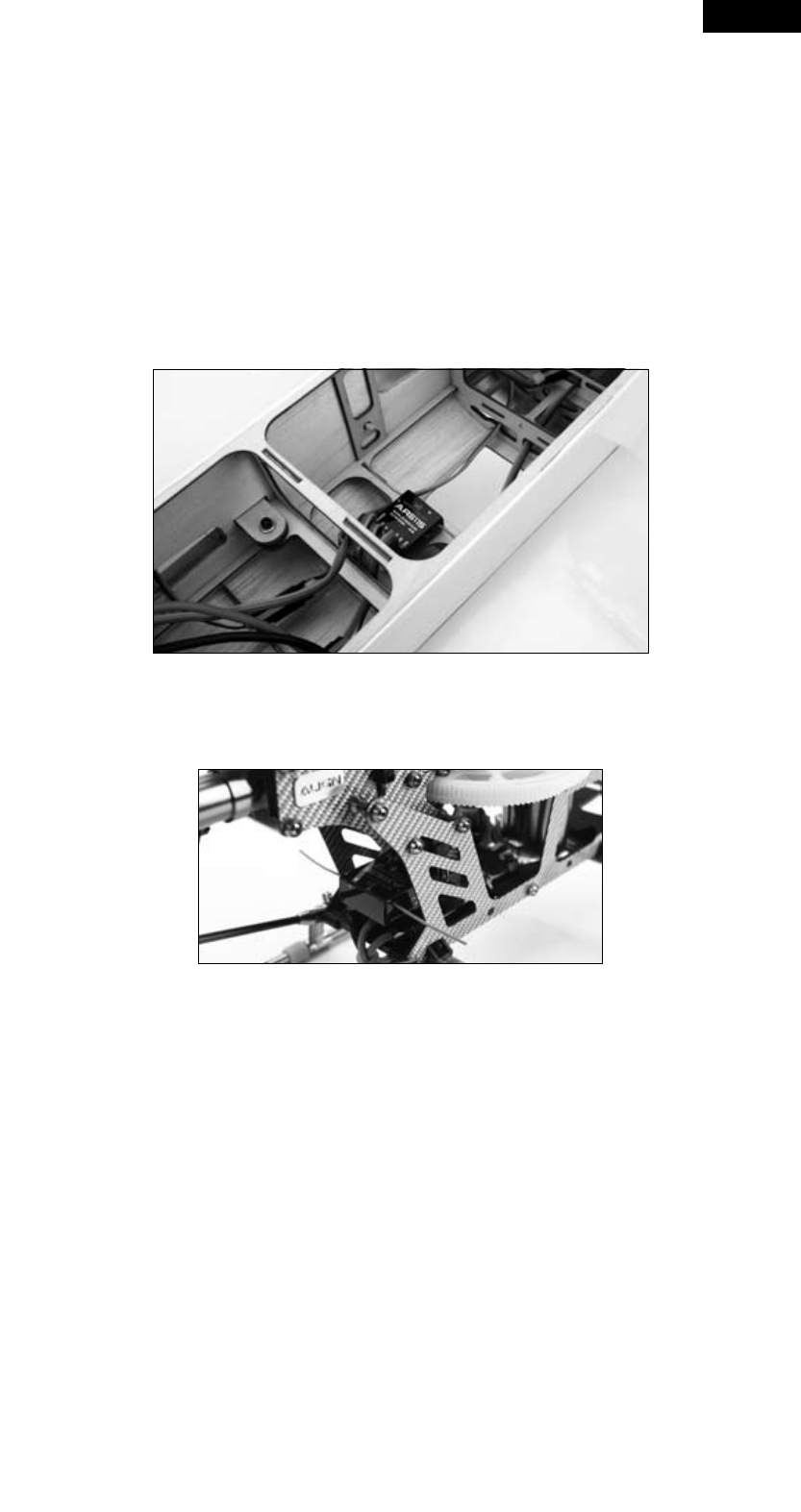

AR6115 installed in airplane
In electric airplanes, it is recommended that double-sided foam tape be used to secure the
AR6115/AR6115e in a position recommended by the aircraft manufacturer.
AR6115 installed in Heli
In electric helicopters, it is recommended that double-sided foam tape be used to secure
the AR6115/AR6115e in a position that locates the receiver away from the motor and ESC
where possible.
Important: Y-Harnesses and Servo Extensions
When using a Y-harness or servo extensions in your installation, it’s important to use standard non-
amplified Y-harnesses and servo extensions as this can/will cause the servos to operate erratically
or not function at all. Amplified Y-harnesses were developed several years ago to boost the signal
for some older PCM systems and should not be used with Spektrum equipment. Note that when
converting an existing model to Spektrum be certain that all amplified Y-harnesses and/or servo
extensions are replaced with conventional non-amplified versions.
Binding
The AR6115/AR6115e receiver must be bound to the transmitter before it will operate. Binding is
the process of teaching the receiver the specific code of the transmitter so it will only connect to that
specific transmitter.
