8 SPEKTRUM DX9 • TRANSMITTER INSTRUCTION MANUAL
EN
• Turn the scroll wheel to move through the screen content or
change programming values. Press the scroll wheel to make
a selection.
• Use the Back button to go to the previous screen
(for example, to go from the Mixing Screen to the Function
List).
• Use the Clear button to return a selected value on a screen to
the default setting.
• Direct Model Access enables you to access the Model Select
screen without powering off the transmitter. Anytime the
transmitter power is on, press the Clear and Back buttons to
access the Model Select screen.
• Press and hold the roller while powering on the transmitter
to show the System Setup list. No radio transmission occurs
when a System Setup screen is displayed, preventing
accidental damage to linkages and servos during changes to
programming.
• At the main screen you can roll the roller to view the servo
monitor.
• The Main Screen appears when you power on the transmitter.
Press the scroll wheel once to display the Function List.
• When you want to change a value in a screen for a particular
control position, move the control to the desired position to
highlight the value you want to change, such as 0/1/2, up/
down or left/right.
Turn Press Press
Enter, Choose
or Exit
Move between
options or change
value in an option
Hold for 3
seconds and
release to move to
the Main Screen
Turn Hold Press
Tip: The tick mark below shows the current switch position.
Rolling and clicking the roller turns the selected box black,
indicating that the value or condition will act on that position.
Function
A Model Name
DSMX/DSM2 If not shown, this indicates “not bound”.
C
Transmitter Battery
Charge Level
D
Digital Battery Voltage (an alarm sounds and the screen flashes
when battery charge gets down to 4.3V when using an NiMH
battery or 6.4V for a LiPo/Li Ion battery.)
E Model Type
F
Elevator Trim (Modes 2 and 4)
Throttle Trim (Modes 1 and 3)
G
Aileron Trim (Modes 1 and 2)
Rudder Trim (Modes 3 and 4)
H Model Memory Timer
Function
I
Rudder Trim (Modes 1 and 2)
Aileron Trim (Modes 3 and 4)
J
Throttle Trim (Mode 2 and 4)
Elevator Trim (Mode 1 and 3)
K Timer
Also displays R Trim values when
the Right Trim button is pressed
Also displays L Trim values when
the Left Trim button is pressed

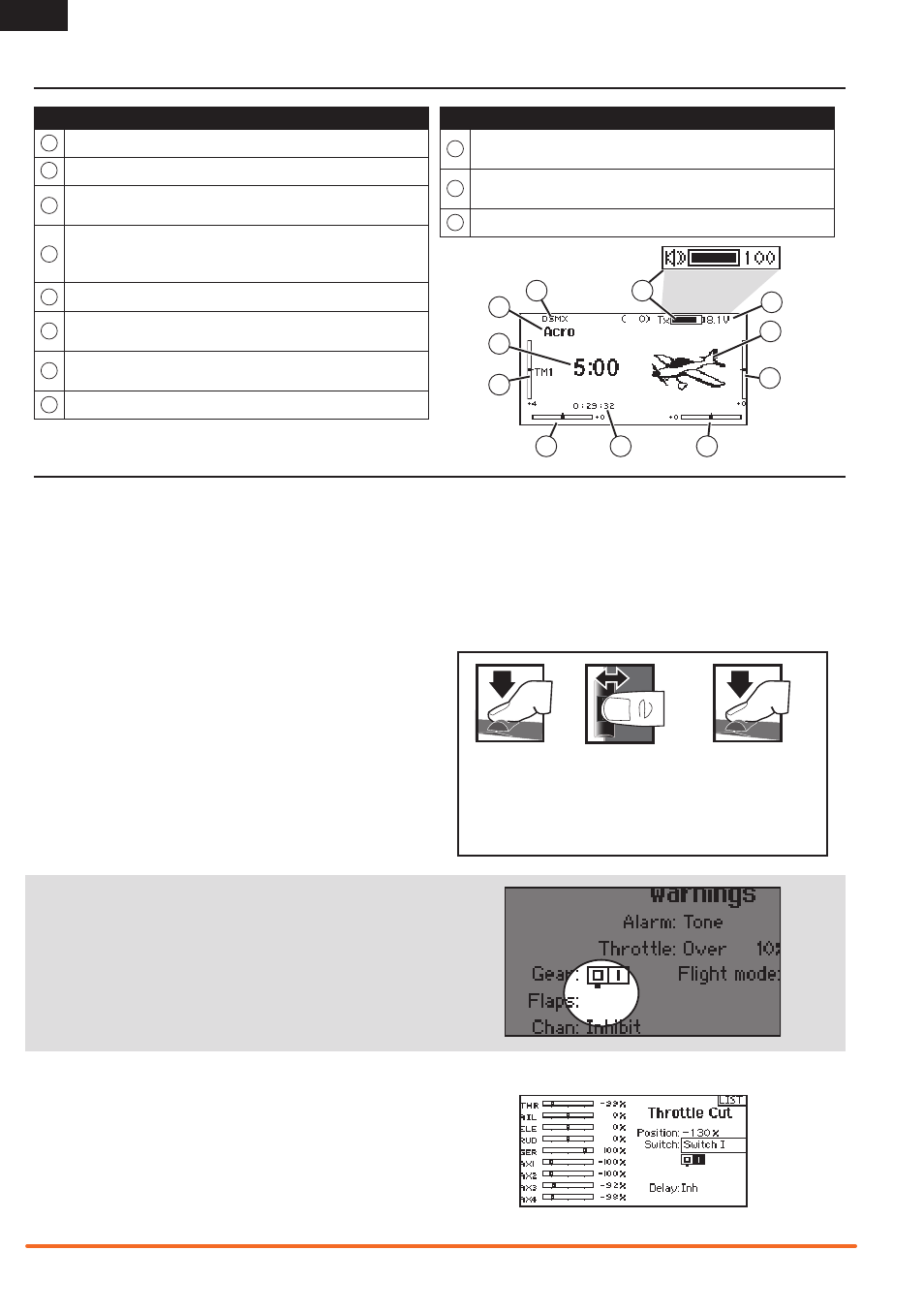

Navigation
Main Screen
Auto Switch Select
To easily select a switch in a function, such as a program mix,
roll with the roller to highlight the switch selection box, and press
the roller. The box around the switch should now flash. To select
a switch, toggle the switch you wish to select. Verify the switch
selection is now displayed as desired. When correct, press the
roller to select this switch and complete the switch selection.
E
D
C B
J
K
A
F
G I H
Also displays the Volume Level
when the BACK button is pressed
B
