Wired Trainer
The 4 wired trainer modes include:
Inhibit
In Inhibit, the slave transmitter must have the same programming
as the master transmitter (e.g., servo reversing, travel adjust,
sub-trim, trims).
Programmable Master
Programmable mode enables you to program the master
transmitter to transfer any or all individual channels when you
activate the trainer switch. This mode is ideal for beginners
learning to control individual channels while the master transmitter
maintains control of all other channels.
The slave transmitter should be in Inhibit mode, if available.
The Master and Slave transmitters MUST have the same
programming.
Pilot Link Master
Pilot Link Master enables you to program the master transmitter
to transfer any or all individual channels when you activate the
trainer switch. Pilot Link Master is ideal for complex models,
as the master transmitter can maintain control of all secondary
functions—for example flight modes, retracts, flaps and brakes.
Secondary functions can be individually assigned to the Slave
transmitter as necessary. It is not necessary to have model
programming in the slave transmitter.
It may be necessary for the slave transmitter to be in Inhibit mode
to allow trim changes to transfer over from the master transmitter.
Slave
Use Slave mode when using the DX9 as a slave transmitter and
Pilot Link is active in the master transmitter.
DX9 Wired Trainer Operation
1. Bind the master transmitter to the model.
2. Connect the trainer cord (SPM6805) to the back of the master
transmitter.
3. Make sure the master and slave transmitter battery packs are
fully charged.
4. Make sure the slave transmitter is powered off. The slave
transmitter receives power when you connect the trainer cord.
5. Connect the trainer cord to the slave transmitter.
6. The slave transmitter screen displays information but does not
send a signal to the model.
7. Press the trainer button on the master transmitter to transfer
model control from the master to the slave.
8. While moving the trainer switch between the off and on
positions, watch for movement on the control surfaces. Adjust
the trims as necessary before flying.
9. Release the trainer button and the master transmitter regains
control of the model.
Master Override
The Master Override feature enables the instructor to immediately
regain control of the model by moving the control sticks. After you
activate Master Override, the slave transmitter cannot control the
model until you reset the trainer switch. To reset the trainer switch:
1. Move the trainer switch to the OFF position.
2. Move the trainer switch to the ON position to activate the slave
transmitter.

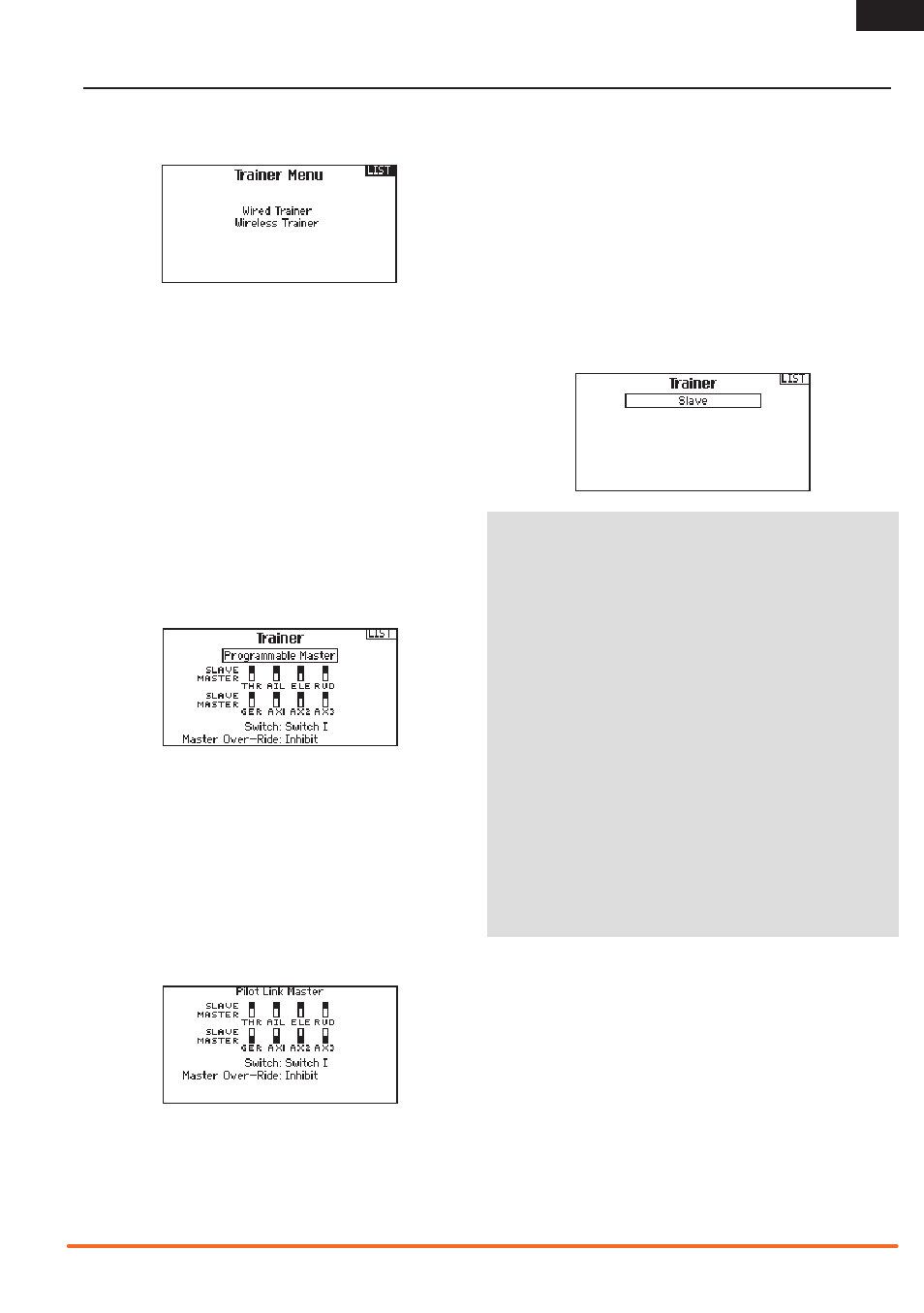

TRAINER
The DX9 features a programmable trainer function with 4 wired trainer modes and 2 wireless trainer modes. The transmitter assigns
the trainer function to Switch I.
