7 SPEKTRUM DX9 • TRANSMITTER INSTRUCTION MANUAL
EN
Function
1 Handle/Antenna 2
2
Throttle Spring Tension
Adjustment (Mode 2,4)
Left Lever
4
Gimbal Stick Tension
Adjustment
5 Mode Change
Function
6 Left Rear Grip
7 SD Card
8 Audio Jack
9 Battery Cover
10 Trainer Port
11 Charge Port
Function
12 Right Rear Grip
13
Gimbal Stick Tension
Adjustment
14 Mode Change
Right Lever
16
Throttle Spring Tension
Adjustment (Mode 1,3)

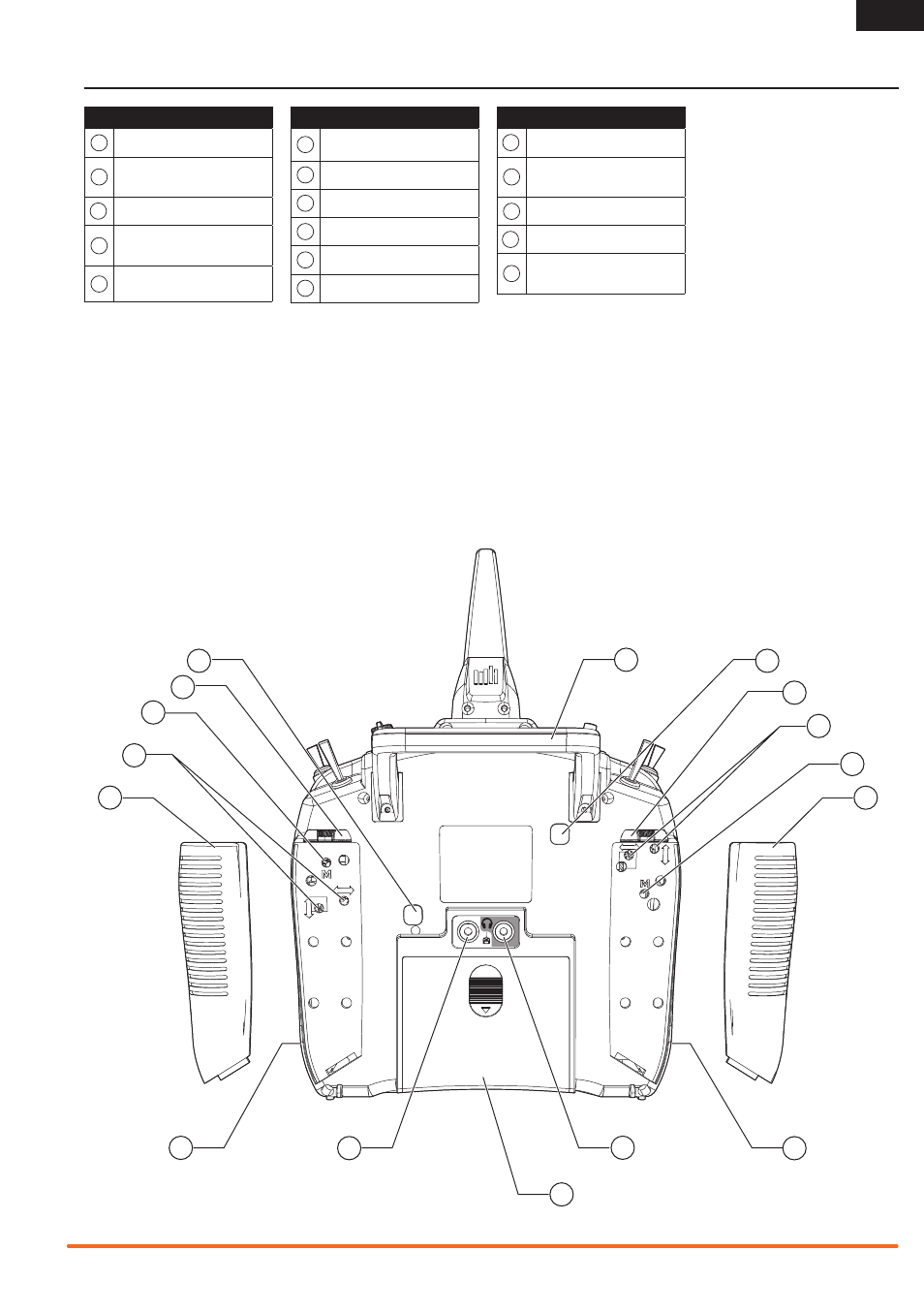

Transmitter Functions
CLEAR
BACK
™
®
6
8
9
10
12
1
13
14
15
16
4
11 7
2
3
5
3
15
