9 SPEKTRUM DX3R PROGRAMMING GUIDE
reCeIver CoMpaTIbIlITy
The DX3R features DSM2 technology but is also
compatible with most DSM1 Spektrum surface
receivers. When the fastest response rate is desired,
using the system with a DSM2 receiver like the
AR3100 is recommended as this combination gives
the lowest possible latency/ quickest response rate.
During the binding process the transmitter actually
“learns” the receiver type (DSM1 or DSM2) and
configures itself to transmit that protocol.
CoMpaTIble spekTruM reCeIvers
DSM2
SR3100- 3-channel DSM2 Pro- SPMSR3100
DSM1
SR3000- 3-channel Standard- SPM1200
SR3001- 3-channel Pro-Model- SPM1205
SR3500- 3-channel Micro Race- SPM1210
Note: The SR3000HRS model # SPM1202
receiver is designed to be used with Futaba’s
HRS compatible module system only and is
not compatible with the DX3R.
reCeIver ConneCTIon
and InsTallaTIon

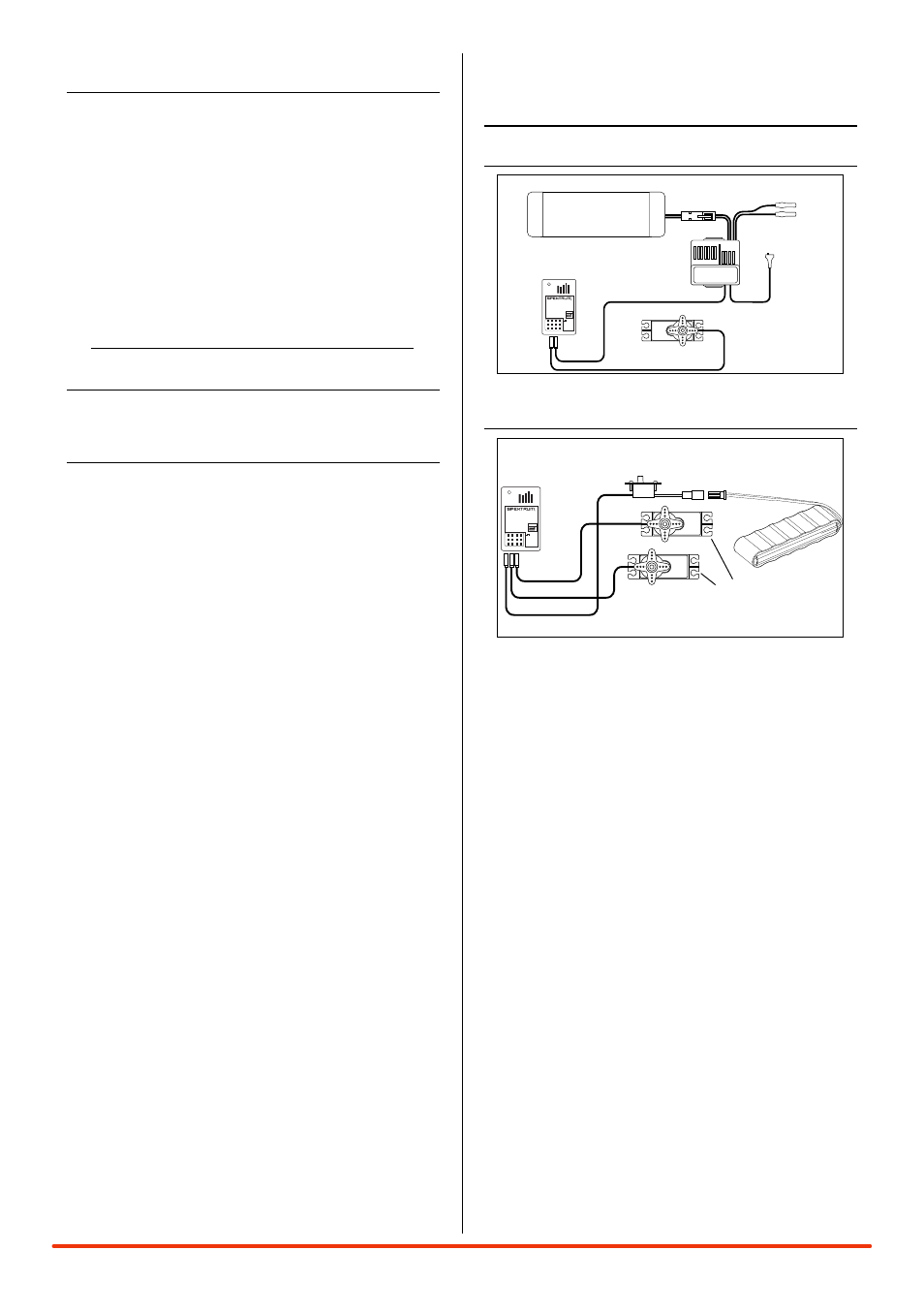

Typical Electric Installation
7.2V Battery
To Motor
Electronic
Speed Control Receiver
Servo
SR3100
DSM
AUX THR STR BA T/TEL
2.4GHz DSM²
+
−
Typical Gas Installation
Battery
Switch
Servos
Receiver
SR3100
DSM
AUX THR STR BA T/TEL
2.4GHz DSM²
+
−
