6
Spektrum DX4r prO • tranSmitter inStructiOn manual
EN
RECEIvER COMPATIBIlITy
The DX4R PRO transmitter is compatible with Spektrum™
DSMR™, DSM
® , DSM2 ® , and Marine surface receivers.
The included SR410 DSMR receiver is only compatible
with DSMR transmitters.
AvC – ACTIvE vEhIClE CONTROl
AVC™ technology is the newest Spektrum™ RC innovation from
Horizon Hobby. This Spektrum stabilization system adds a whole
new level of control to your RC driving experience. AVC technol-
ogy utilizes sensors to adjust steering and throttle output, provid-
ing you with a more stable and controlled driving experience.
NOTICE: You must use digital servos with the SRS4210
receiver. Using analog servos will reduce the performance
of the system and may cause analog servos to overheat.

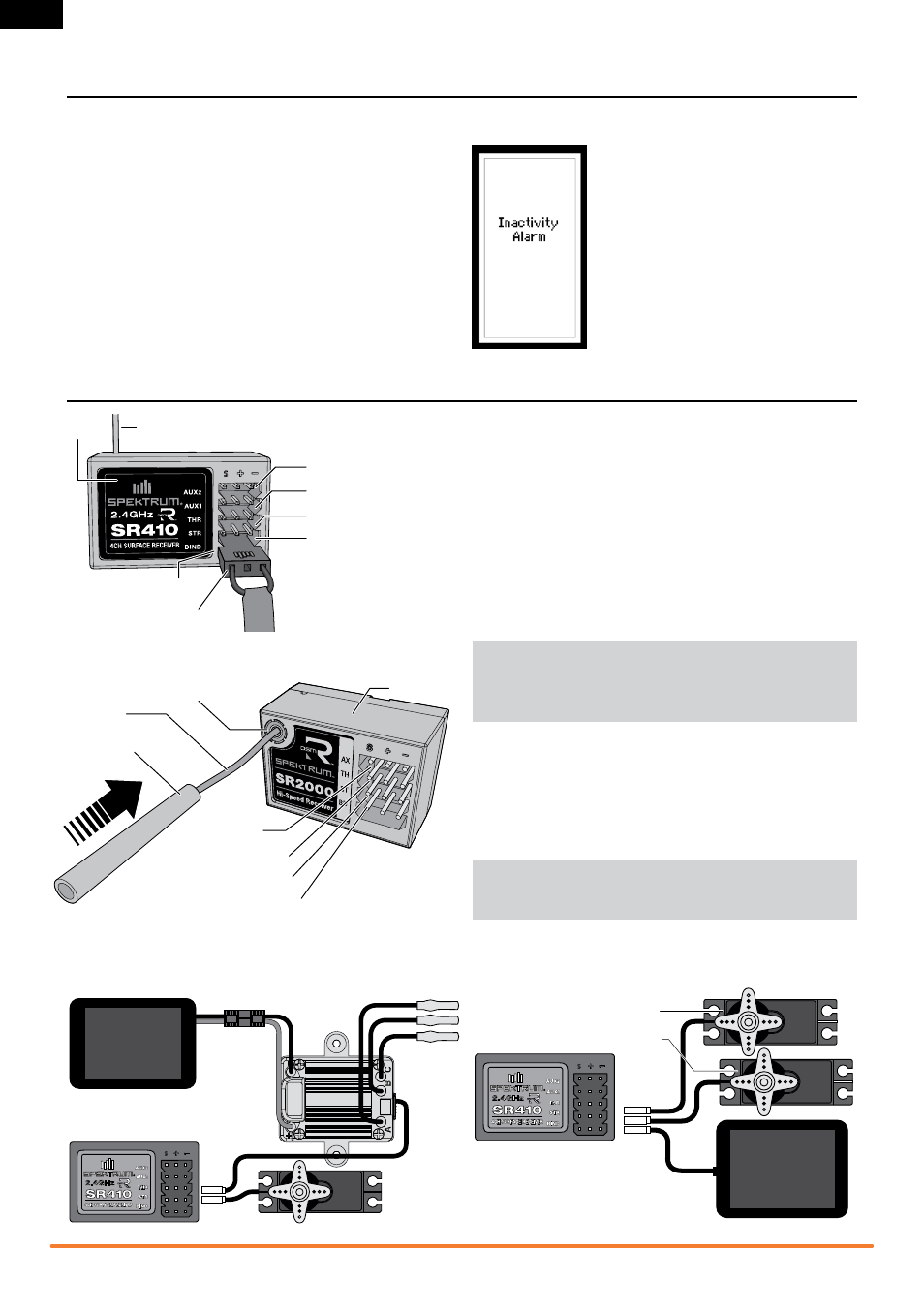

Install the receiver in your vehicle using double-sided foam servo
tape. Foam servo tape holds the receiver in place and protects
the receiver from vibration. Position the antenna vertically and
away from the vehicle in an antenna tube. The SR410 has a coax
style antenna. The last 31mm of the antenna is the portion that
receives the signal from the transmitter.
NOTICE: Do not cut or bend the antenna or it could
become damaged.
Aux 1 Port
Aux 2 Port
lED
Bind Plug
Bind/Battery Port
Steering Port
Throttle Port
Antenna
lOW BATTERy AlARM
An alarm will sound and the voltage will flash on the main screen
when the transmitter’s battery power falls below a set limit. This
alarm reminds you to stop using the vehicle immediately; power
off the transmitter and replace the batteries. Set the low battery
limit using the
System Screen.
INACTIvITy AlARM
The alarm reminds you to power off the
transmitter and save battery power. If the
transmitter is powered on for more than
10 minutes and no control movement is
detected, the inactivity alarm will sound.
Moving any control stops the alarm.
WARNING SCREENS
Steering Servo
EC3 EC3
ElECTRIC vEhIClE INSTAllATION NITRO vEhIClE INSTAllATION
Electronic
Speed
Control
To Motor
Receiver
Receiver
Battery
Steering Servo
Throttle Servo
Battery
SR2000 RECEIvER
Built-in Antenna Tube Mount
Antenna
Antenna Tube
Aux Port
Throttle Port
Steering Port
Bind/Battery Port
lED
