ABS (AUTOMATIC BRAkING SySTEM OR PUlSE BRAkES)
ABS helps prevent brake lock-ups and improves braking performance by pulsing the brakes.
You can adjust the following ABS parameters:
State: Inhibit or Active
Point: The throttle position that the pulse braking takes place (0 to 100, default is 60).
Stroke: The distance the throttle travels during the pulse braking (0 to 100, default is 50).
Lag: The time delay before the pulsing takes place (0.0 to 2.0 in .01 increments, default is 0.5).
Speed: The pulsing speed or frequency of the pulse braking (-1 to -30, default is -1).
The bar at the bottom of the screen displays the parameters and shows how ABS will function.
To activate ABS:
1. Select ABS from the List screen.
2. Select the ABS parameter you want to adjust.
3. Scroll up or down to adjust the parameter.
4. Press the scroll wheel to save the settings.
ACTIvE vEhIClE CONTROl (AvC)
OPTIONS
• ST Gain
• TH Gain
• Priority
1. Select AVC from the LIST menu.
2. Change the State field to ACT .
3. Adjust the ST Gain and/or Th Gain Sensitivity
The default value is 0% (ST Gain and TH Gain OFF).
As the value increases, the AVC steering stability and
throttle management increases.
Adjust the ST Gain until you reach the ideal amount of
steering control. If the front wheels begin to shake, the ST
Gain value is too high. Reduce the ST Gain value until the
front wheels stop shaking. You can assign ST Gain and TH
Gain to the same switch, enabling you to adjust both values
at the same time.
4. Switch: Assigning ST Gain and TH Gain to a switch enables
you to adjust the sensitivity without using the AVC menu.
ST GAIN and TH GAIN can be assigned to the same switch
to adjust both simultaneously.
5. Adjust the Steering Priority
The Priority default value is 0%, meaning AVC is active when
the steering is close to center. As you turn the steering wheel
away from center (neutral), the transmitter controls have
priority over the AVC system. Increasing the Priority value
decreases how active AVC is as the steering wheel is turned
left and right. For example, if you increase Priority to 80%,
you reduce the AVC steering control by 80% at full left or
full right steering. Increasing the Steering Priority enables
you to make tighter turns.

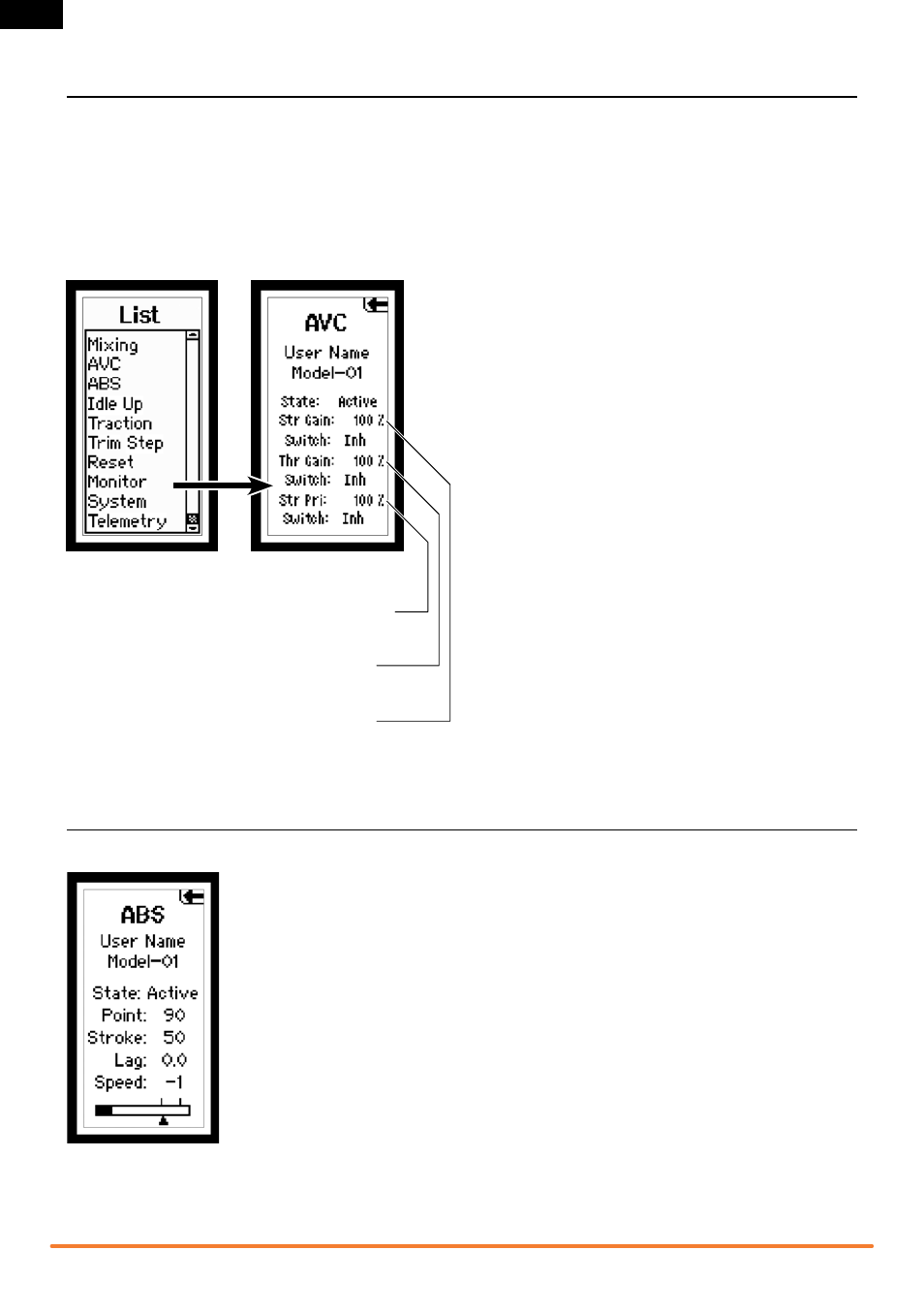

AVC Screen
ST Gain when active
drives the
Aux 1
TH Gain when active
drives the
Aux 2
Priority adjusts ST Gain
based on the steering input.
List Menu
If AVC is active, only two channels, Steering and Throttle,
are operational. The Aux channels can be used to power
a personal transponder or lights.
If AVC is disabled (see Disabling the Stability Assist
Function to disable AVC), the Aux channels will operate
as servo channels. Aux channels are not available for
use in mixes when AVC is active.
