Layer 2 Switching 43
Software Release 2.5.1
C613-02025-00 REV B

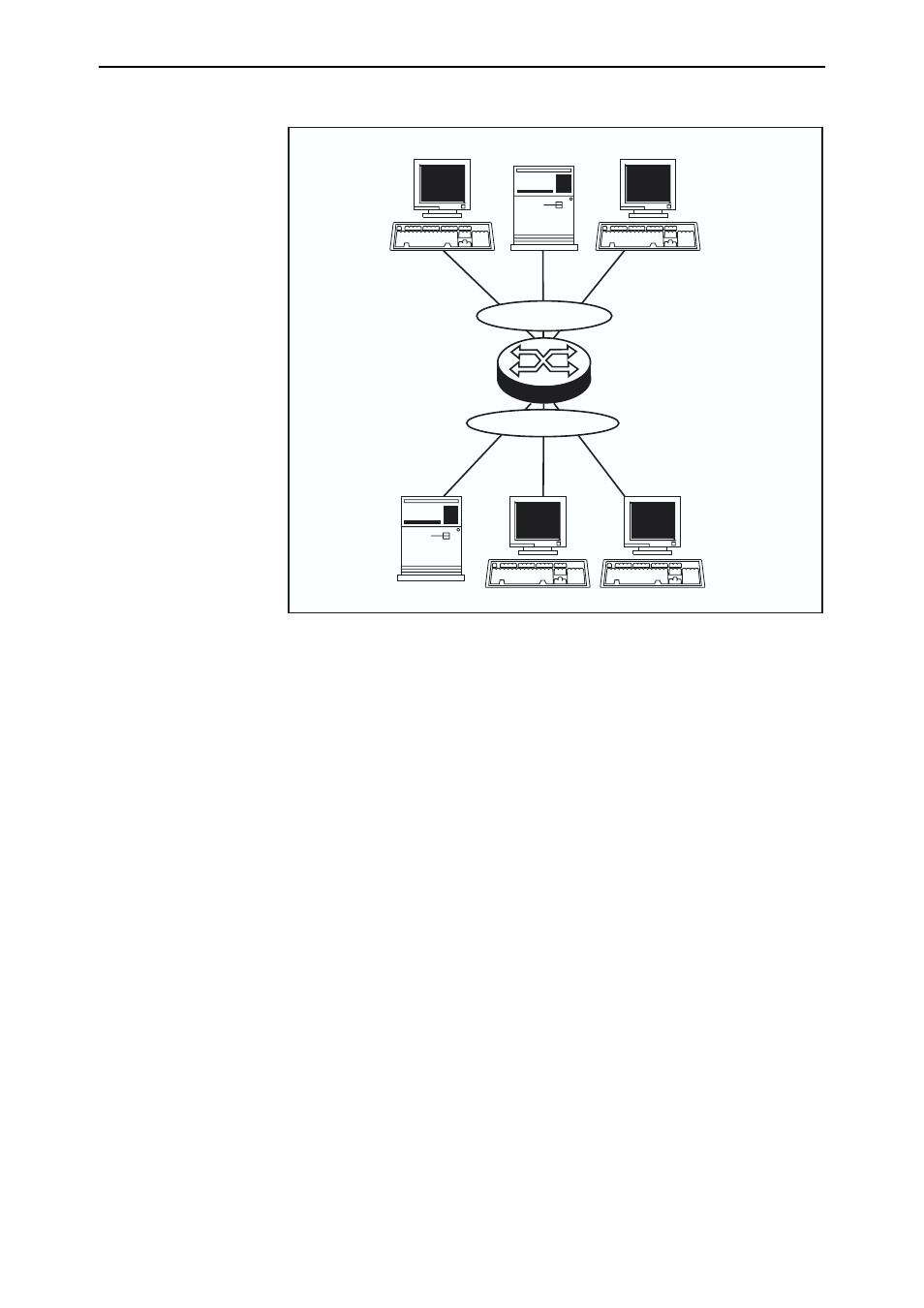

Figure 1-3: VLANS with untagged ports.
Creating VLANs
To briefly summarise the process of creating a VLAN:
1. Create the VLAN.
2. Add tagged ports to the VLAN, if required.
3. Add untagged ports to the VLAN, if required.
To create a VLAN, use the command:
CREATE VLAN=vlan-name VID=2..4094
Every port must belong to a VLAN, unless it is the mirror port. By default, all
ports belong to the default VLAN as untagged ports.
To add tagged ports to a VLAN, use the command:
ADD VLAN={vlan-name|1..4094} PORT={port-list|ALL}
FRAME=TAGGED
A port can be tagged for any number of VLANs.
To add untagged ports to a VLAN, use the command:
ADD VLAN={vlan-name|1..4094} PORT={port-list|ALL}
[FRAME=UNTAGGED]
A port can be untagged for zero or one VLAN. A port can only be added to the
default VLAN as an untagged port if it is not untagged for another VLAN. A
Training VLAN
Marketing VLAN
411
Port 14
SWITCH2
Port 15
Port 16
Port 1
Port 2
Port 3
Switch
