Overview
24
Traffic Priority
The switch provides Quality of Service (QoS) by prioritizing each packet
based on the required level of service, using two distinct categories with
Weighted Fair Queuing. It uses IEEE 802.1Q and 802.1p tags to prioritize
incomming traffic based on input from the end-station application
driver. These functions can be used, for example, to provide
independent priorities for real-time video, real-time voice, guaranteed-
delivery data, or best-effort data.
Optional
Expansion
Modules
AT-B15/SX Expansion Module
Using multimode fiber optic cable, the AT-B15/SX Expansion Module
with its 1000Base-SX port can be connected to a remote site up to 550
meters (1,804 feet) away. The module operates at 1 Gbps, with support
for auto-negotiation of duplex mode and flow control. This module is
fitted with an SC connector.

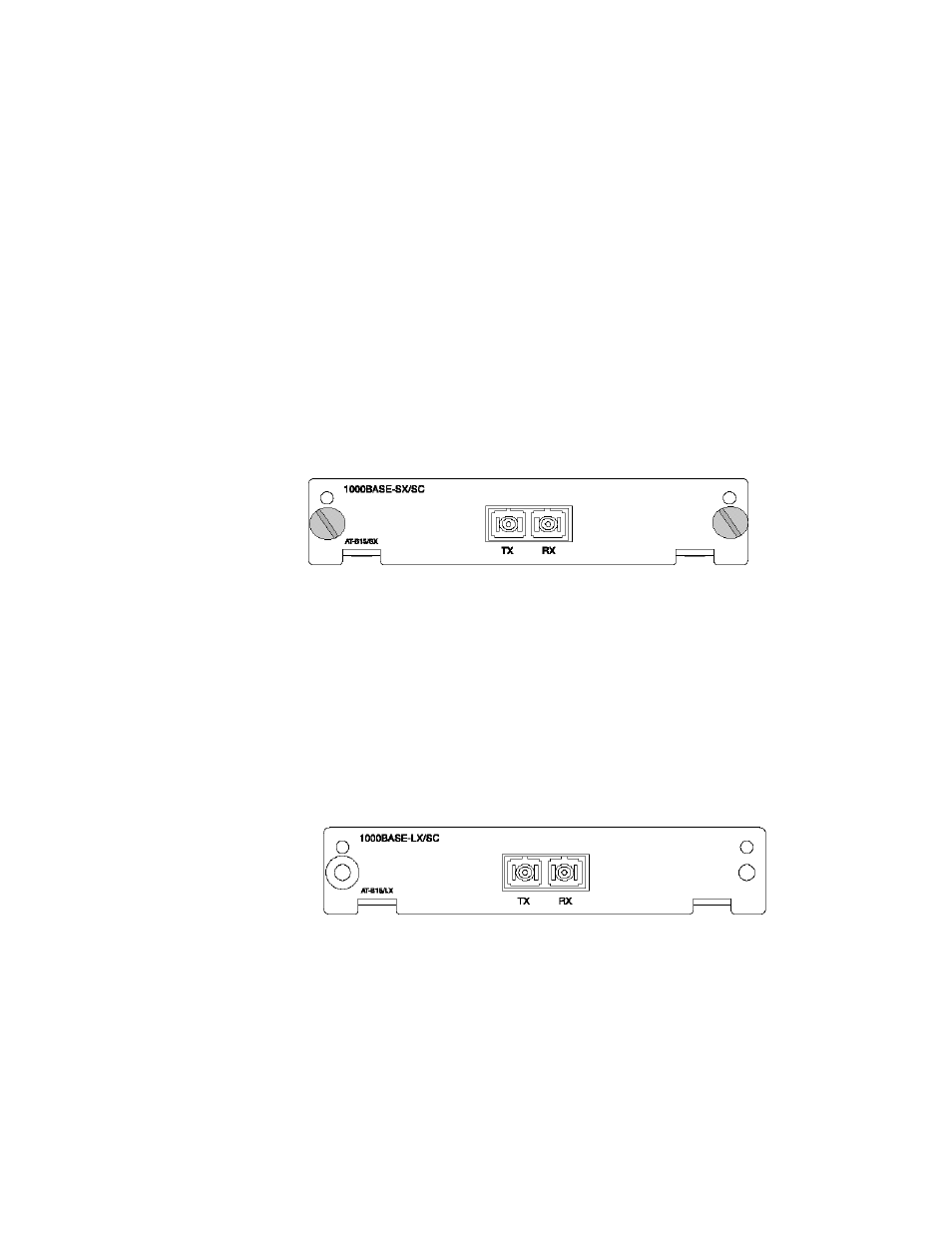

Figure 4 AT-B15/SX Expansion Module
AT-B15/LX Expansion Module
Using single-mode fiber optic cable, the AT-B15/LX Expansion Module
with its 1000Base-LX port can be connected to a remote site up to
5 kilometers (3.1 miles) away. The module operates at 1 Gbps, with
support for auto-negotiation of duplex mode and flow control. This
module is fitted with an SC connector.
Figure 5 AT-B15/LX Expansion Module
