Connecting Equipment to the Console Port
2-4
Connecting Equipment to the Console Port
Connection to the console port is used for direct local management. The switch
console port settings are set as follows:
" Baud rate — 9600
" Data bits — 8
" Stop bit — 1
" Parity — None
" Flow control — XON/XOFF
The terminal connected to the console port on the switch must be configured with the
same settings. This procedure will be described in the documentation supplied with
the terminal.
Appropriate cables are available from your local supplier. In order to make your own
cables, pin-outs for a DB-9 male console connector are described in Table 2-1.

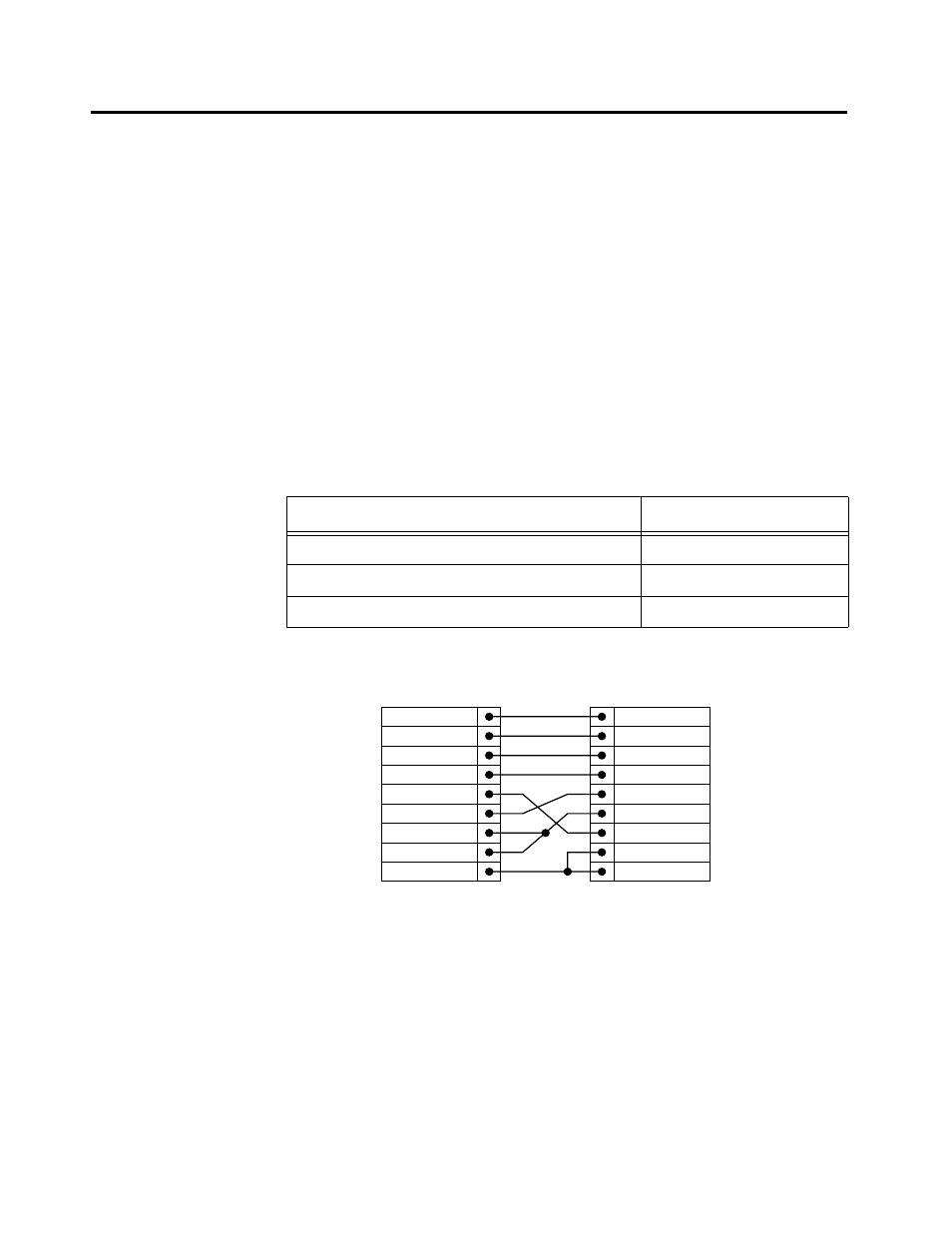

Figure 2-2 shows the pin-outs for a 9-pin to RS232 25-pin null-modem cable.
Figure 2-2 Null Modem Cable Pin-outs
Table 2-1 Console Connector Pin-Outs
Function Pin Number
TXD (transmit data) 3
RXD (receive data) 2
GND (ground) 5
Screen
TxD
RxD
Ground
RTS
CTS
DSR
DCD
DTR
Cable connector: 9-pin female
AT-8525/AT-8550
Cable connector: 25-pin male/female
PC/Terminal
Screen
RxD
TxD
Ground
RTS
DTR
CTS
DSR
DCD
Shell
3
2
5
7
8
6
1
4
1
3
2
7
4
20
5
6
8
