Hub-to-Switch Installation
A hub (10/100Base-TX) can be connected to the AT-FS704 using a two-pair
Category 5 UTP/STP RJ45 straight cable. Connect the hub uplink (MDI) port
to any of the switch (MDI-X) ports, 1X-4X. See Figure 7.

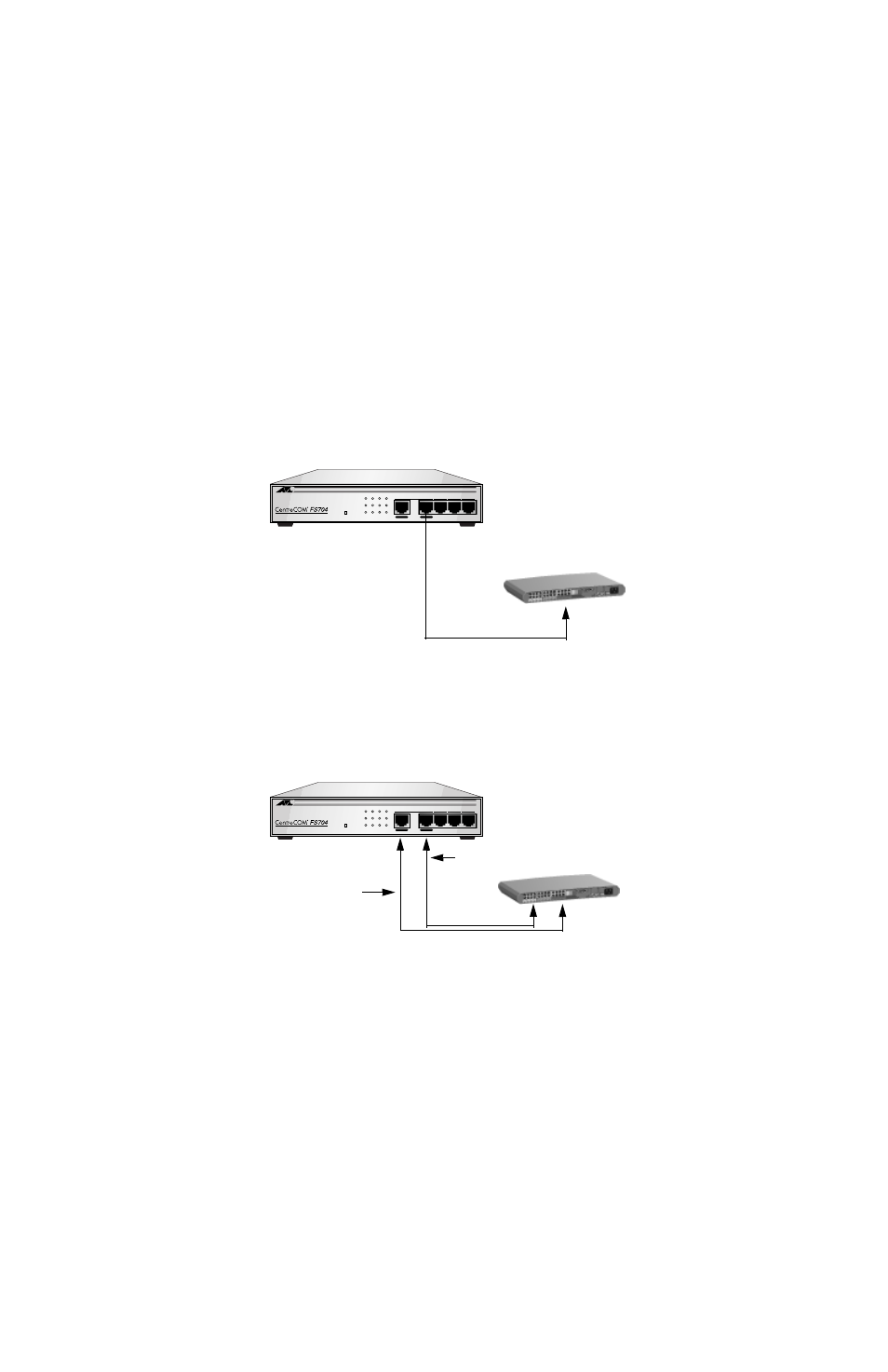

Figure 7 AT-FS704 Switch Connected to a 10/100Base-TX Hub
Hub-to-Switch Installation (without uplink port)
If a hub is not equipped with an uplink (MDI) port, then connection can be
made using either straight cable or crossover cable (see “Appendix A, Technical
Specifications” for cable requirements). Figure 8 demonstrates connection with
straight or crossover cable.
Figure 8 Switch Connected to Hub without Uplink (MDI) Port
1 = X 2X 3X 4X
10BASE-T/100BASE-TX
4 PORT ETHERNET SWITCH
100M
LINK/ACT
FULL DUP
COLN POWER
1 2 3 4
To HUB To PC
1 = X 2X 3X 4X
10BASE-T/100BASE-TX
4 PORT ETHERNET SWITCH
100M
LINK/ACT
FULL DUP
COLN POWER
1 2 3 4
To HUB To PC
HUB
Straight Cable
Crossover Cable
