Chapter 1
Product Description
The AT-FS704 10/100 Fast Ethernet Switch is a four-port switch that
integrates 100 Mbps Fast Ethernet and 10 Mbps Ethernet network capabilities
in a highly flexible desktop package. Figure 1 shows the switch front and rear
panels.

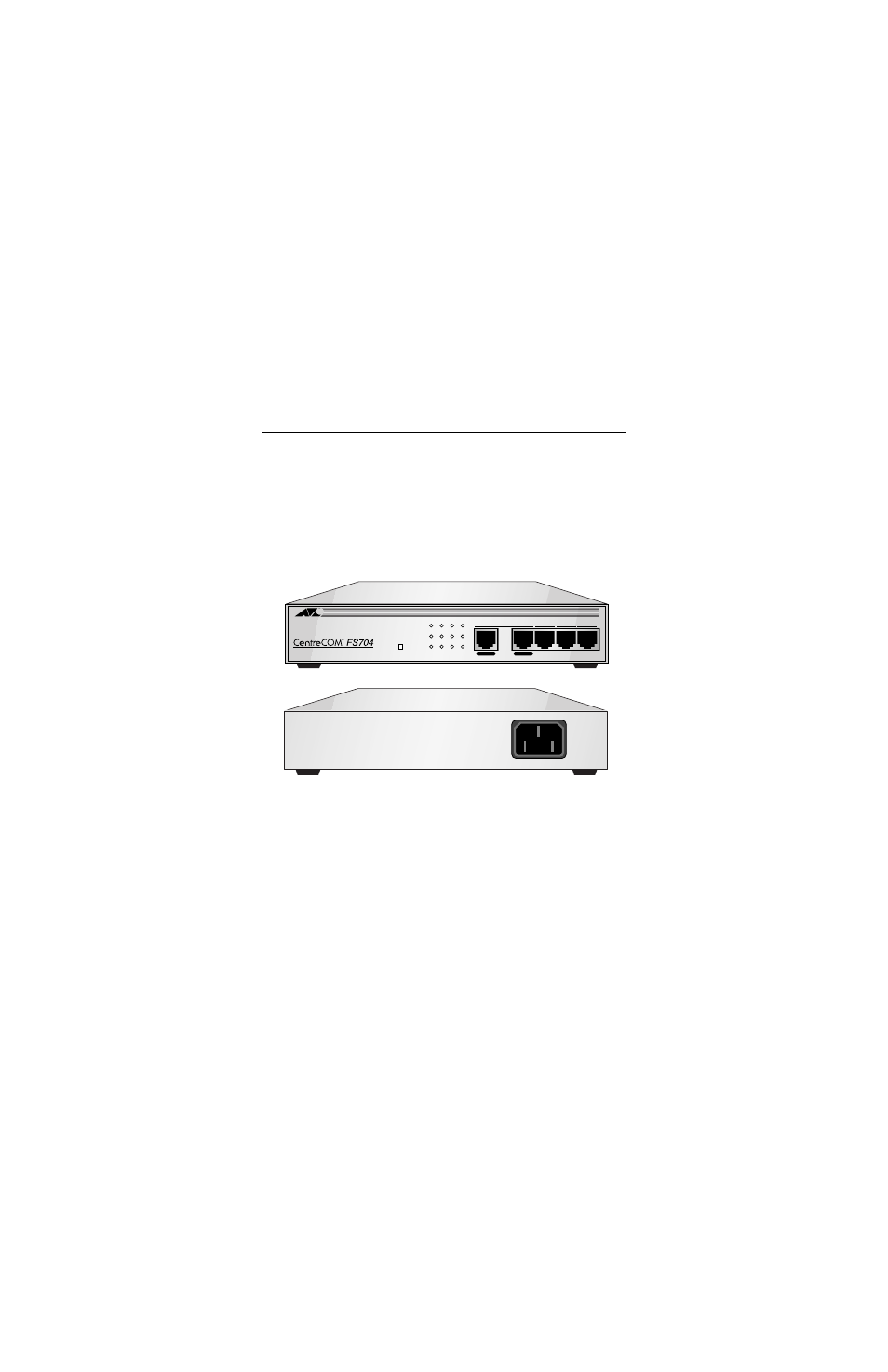

Figure 1 AT-FS704 Front and Rear Panels
The AT-FS704 is designed for easy installation and high performance in an
environment where traffic on the network and the numbers of users increase
continuously; it can be installed where space is limited, and it provides
immediate access to a rapidly growing network through a wide range of user-
reliable functions and features, as described in the following section.
1 = X 2X 3X 4X
10BASE-T/100BASE-TX
4 PORT ETHERNET SWITCH
100M
LINK/ACT
FULL DUP
COLN POWER
1 2 3 4
To HUB To PC
POWER
