Page 26
Installation
10
PC- to-Switch Installation
A PC can be connected to the AT-FS704 with a two-pair Category 5 UTP/STP
RJ45 straight cable. The PC (equipped with a RJ45 10/100 Mbps jack) should
be connected to any of the four ports (1X-4X). See Figure 6.

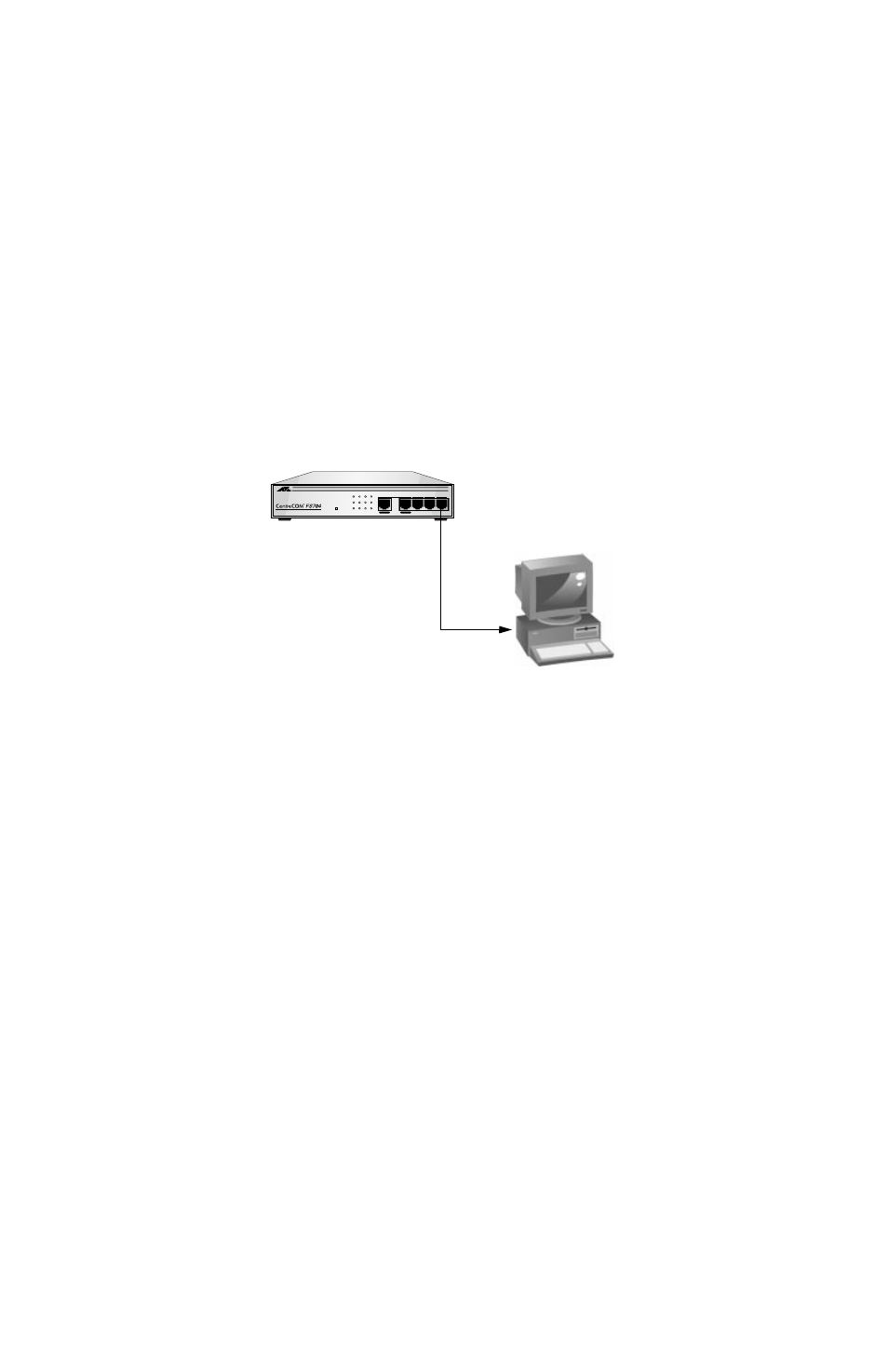

Figure 6 AT-FS704 Switch Connected to a PC or Workstation
1
=
X
2X
3X
4X
10BASE-T/100BASE-TX
4 PORT ETHERNET SWITCH
100M
LINK/ACT
FULL DUP
COLN
POWER
1
2
3
4
To HUB
To PC
RJ45 Jack
