AT-LMC10SC and AT-LMC10ST Installation Guide
5
Network Topologies
The AT-LMC10 Series Media Converters can be used in two different types of
topologies: standalone and back-to-back. Both topologies are described below.
Standalone Topology

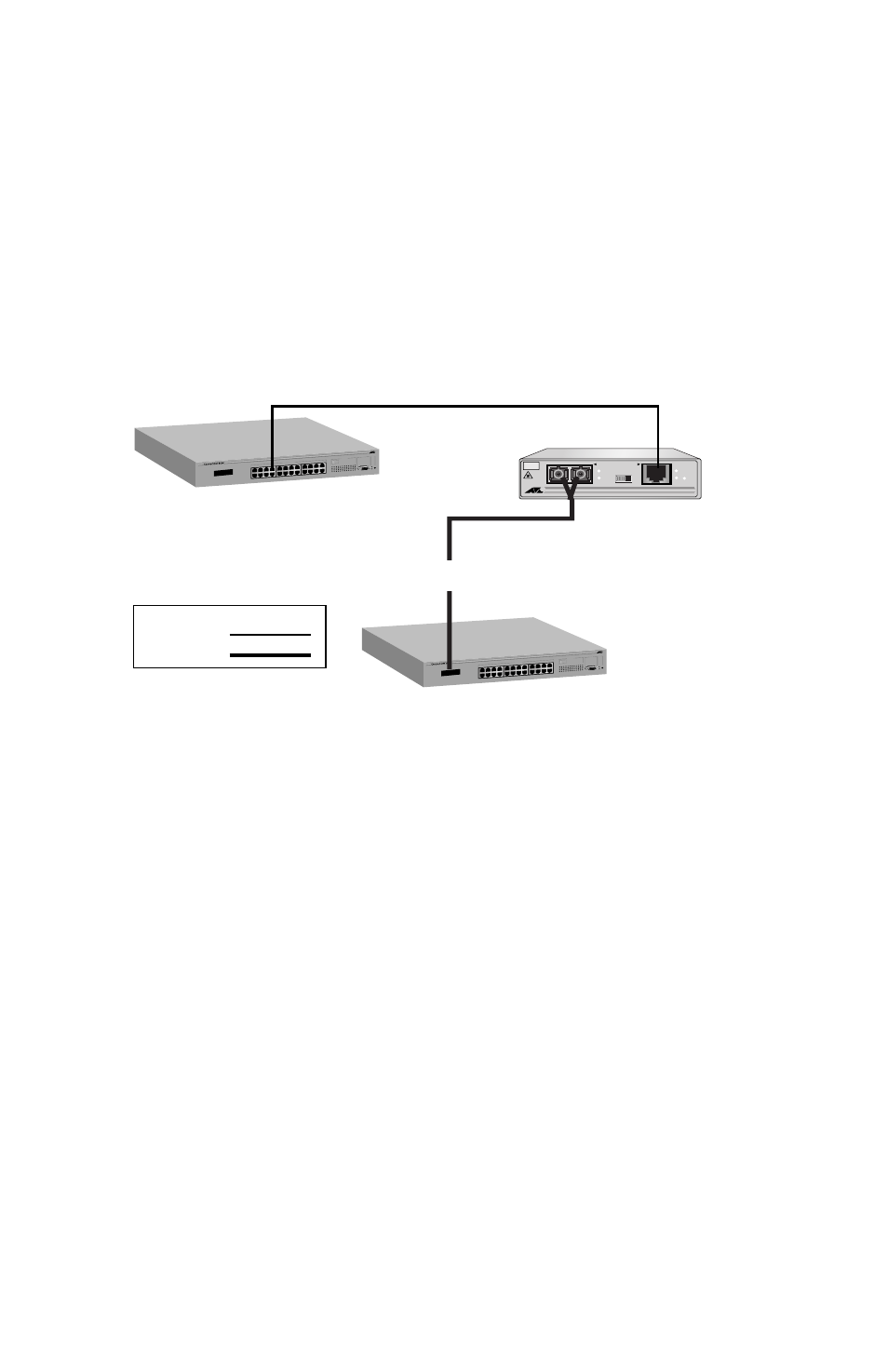

Figure 4 illustrates a standalone topology where two AT-8224XL switches
have been interconnected with an AT-LMC10SC media converter.
Figure 4 Standalone Topology
RS-232 TERMINAL PO RT STATUS
10BASE-T / 100 BASE-TX FAST ETHERN ET SWITCH
PORT ACTIVI TY
10BASE-T / 100 BASE-TX
Cable Legend
10 Mbps
10 Mbps (Fiber)
RS-232 TERMINAL PO RT STATUS
10BASE-T / 100 BASE-TX FAST ETHERN ET SWITCH
PORT ACTIVIT Y
10BASE-T / 10 0BASE-TX
TX RX
AT-LMC10SC ETHERNET MEDIA CONVERTER
CLASS 1 LASER PRODUCT DO NOT STARE INTO BEAM
10Base-FL 10Base-T
PWR
REC
LNK
MDI-X MDI
REC
LNK
AT-8224XL
100 m (328 ft)
AT-LMC10SC
AT-8224XL with a 10 Mbps
Expansion Module
2 km (1.2 mi)
