Overview
2

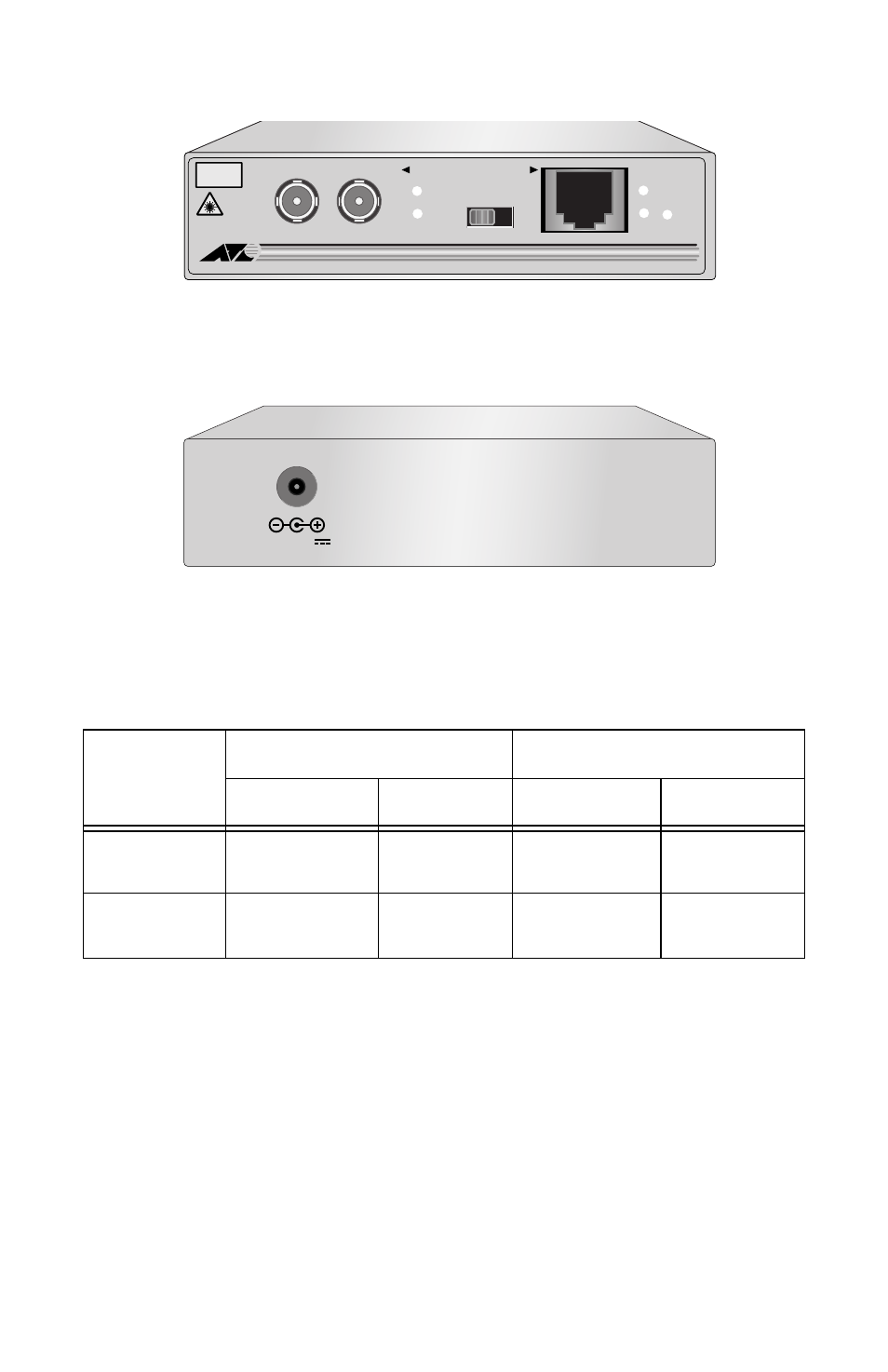

Figure 2 AT-LMC10ST Model Converter - Front Panel
Figure 3 displays the rear panel of the AT-LMC10 Series Media Converters.
Figure 3 AT-LMC10 Series Converters - Rear Panel
Table 1 lists the maximum operating distances for the media converters.
Table 1 Maximum Operating Distances
Model Type of Connector Maximum Operating Distance
10Base-FL 10Base-T 10Base-FL 10Base-T
AT-LMC10SC Multi-mode SC RJ-45 2 km
(1.24 mi) 100 m (328 ft)
AT-LMC10ST Multi-mode ST RJ-45 2 km
(1.24 mi) 100 m (328 ft)
TX RX
AT-LMC10ST ETHERNET MEDIA CONVERTER
CLASS 1
LASER PRODUCT
DO NOT STARE
INTO BEAM
10Base-FL 10Base-T
PWR
REC
LNK
REC
LNK
MDI-X MDI
12 V D C
