AT-FS200 Series Installation Guide
5

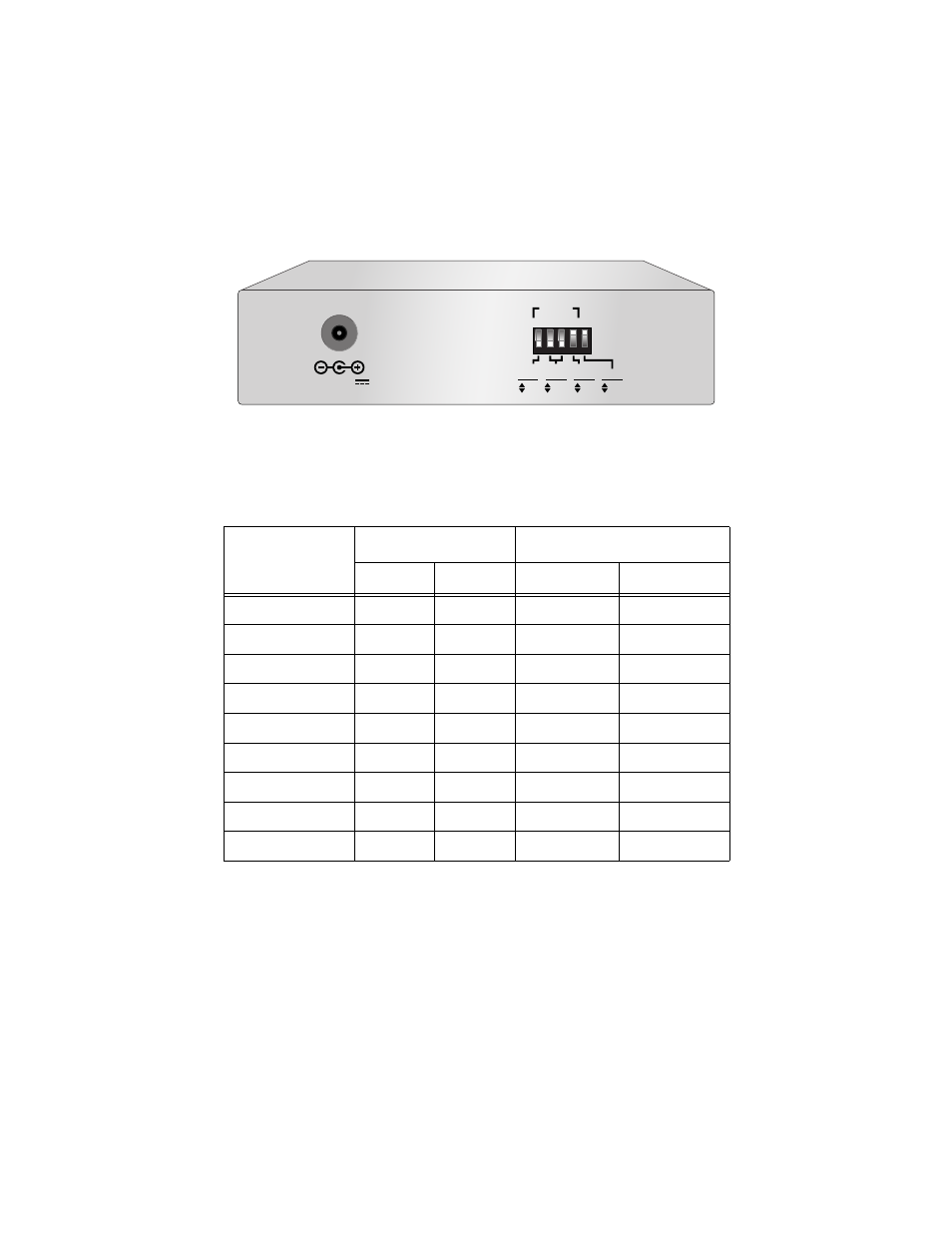

Figure 7 illustrates the rear panel of the AT-FS201SC and AT-FS202ST
Series Switches.
Figure 7 Rear Panel of the AT-FS201SC and AT-FS202ST Switches
Table 1 Maximum Operating Distance
Model
Type of Connector Maximum Distance
Port 1 Port 2 Port 1 Port 2
AT-FS201 RJ-45 ST 100 m (328 ft) 2 km (1.2 mi)
AT-FS201ST/FS1 RJ-45 ST 100 m (328 ft) 15 km (9.3 mi)
AT-F201ST/FS2 RJ-45 ST 100 m (328 ft) 40 km (24.8 mi)
AT-FS201ST/FS3 RJ-45 ST 100 m (328 ft) 75 km (46.5 mi)
AT-FS202 RJ-45 SC 100 m (328 ft) 2 km (1.2 mi)
AT-FS202SC/FS1 RJ-45 SC 100 m (328 ft) 15 km (9.3 mi)
AT-FS202SC/FS2 RJ-45 SC 100 m (328 ft) 40 km (24.8 mi)
AT-FS202SC/FS3 RJ-45 SC 100 m (328 ft) 75 km (46.5 mi)
AT-FS203 RJ-45 RJ-45 100 m (328 ft) 100 m (328 ft)
12 V D C
2 1 3 4 5
1 2 2 2
PORT
10
100 HALF
FULL OFF
ON
DUPLEX
MODE
AUTO
NEG
SPEED
(Mbps)
1522
1518
BYTES
