Allied Telesyn AT-VIEW PLUS
VLAN MANAGER

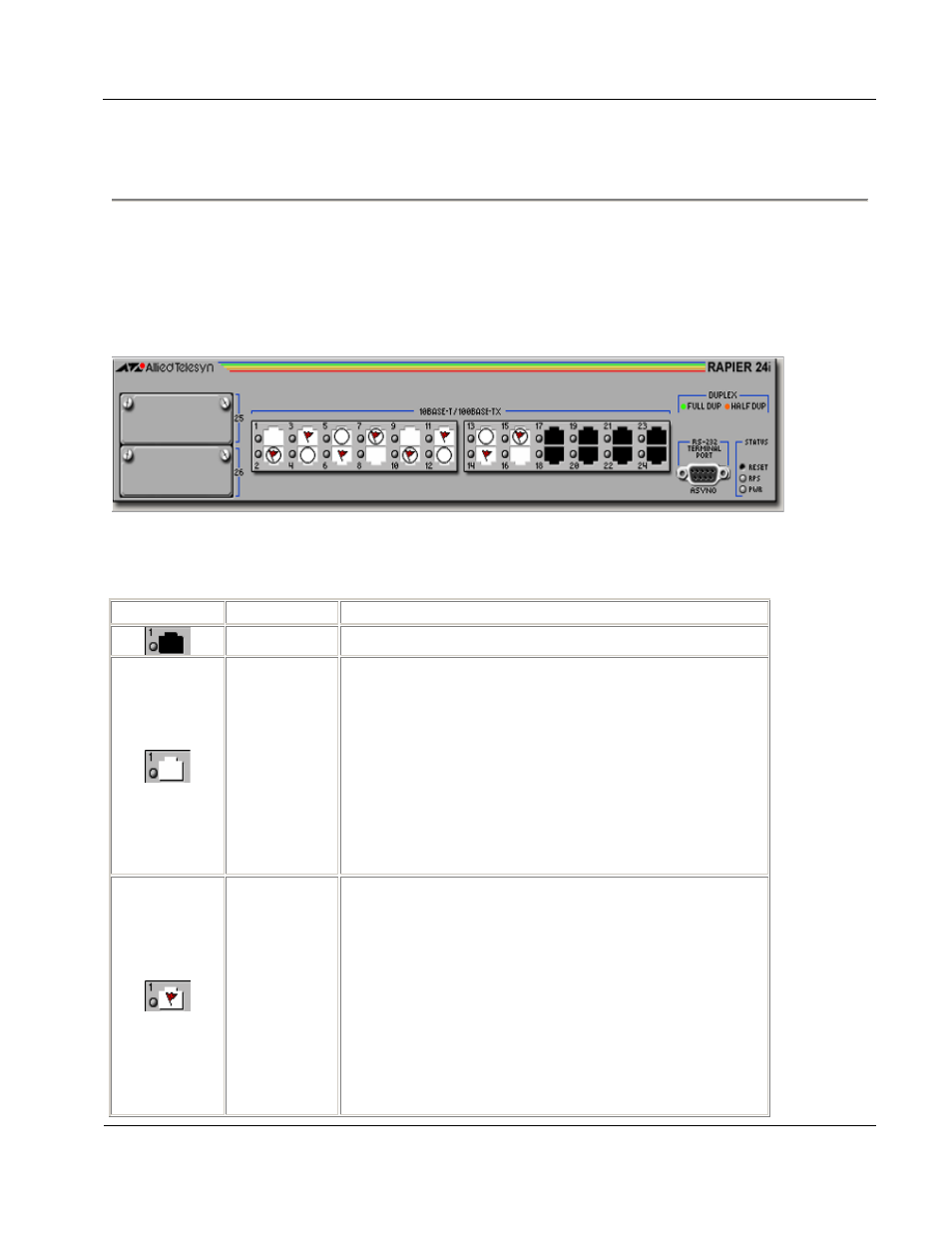

4.2 Device Panel
A device panel that reflects the actual ports available on the target host is used to create or modify a
VLAN definition.
Note - The AT-A48/SC, AT-A48/MT and AT-A49 Expansion Modules for the AT-8350GB are not
supported and will not show up on the device panel.
Device Panel
A port can be in any of the following states.
Port Image State Description
Not Selected This port does not belong to the VLAN.
Selected
This port is an untagged member of the VLAN.
Note - For the AT-8200XL Series, this port is
considered a member of the VLAN.
Note - For the AT-8800, Rapier and AT-8900 series, this
port is a private untagged member of the Private VLAN.
Note - For the AT-8900 series, this port is a customer
port of the Nested VLAN.
Flagged
This port is a tagged member of the VLAN.
Note - For the AT-8200XL Series, this port is
considered an untagged (port-based) member of the
VLAN.
Note - For the AT-8800, Rapier and AT-8900 series, this
port is a private tagged member of the Private VLAN.
Note - For the AT-8900 series, this port is a core
member of the Nested VLAN.
PN 613-50666-00 Rev A Page 12 of 52
