in Wake on LAN mode. By default, the WOL Speed property is set to
Auto.
Note
This parameter is available only for copper devices and is not
displayed for the AT-29xxSX Series adapters.
– 10 Mb. Sets the speed to 10 Mbit/s. This is the network speed
when the system is in a standby mode awaiting a wake-up frame.
– 100 Mb. Sets the speed to 100 Mbit/s.
– Auto (default). Sets the speed for optimum network connection.
Network Test
Tab
In the Network Test tab, you can verify IP network connectivity. This test
verifies if the driver is installed correctly and tests connectivity to a
gateway or other specified IP address on the same subnet. The Network
test uses TCP/IP, as shown in Figure 6.

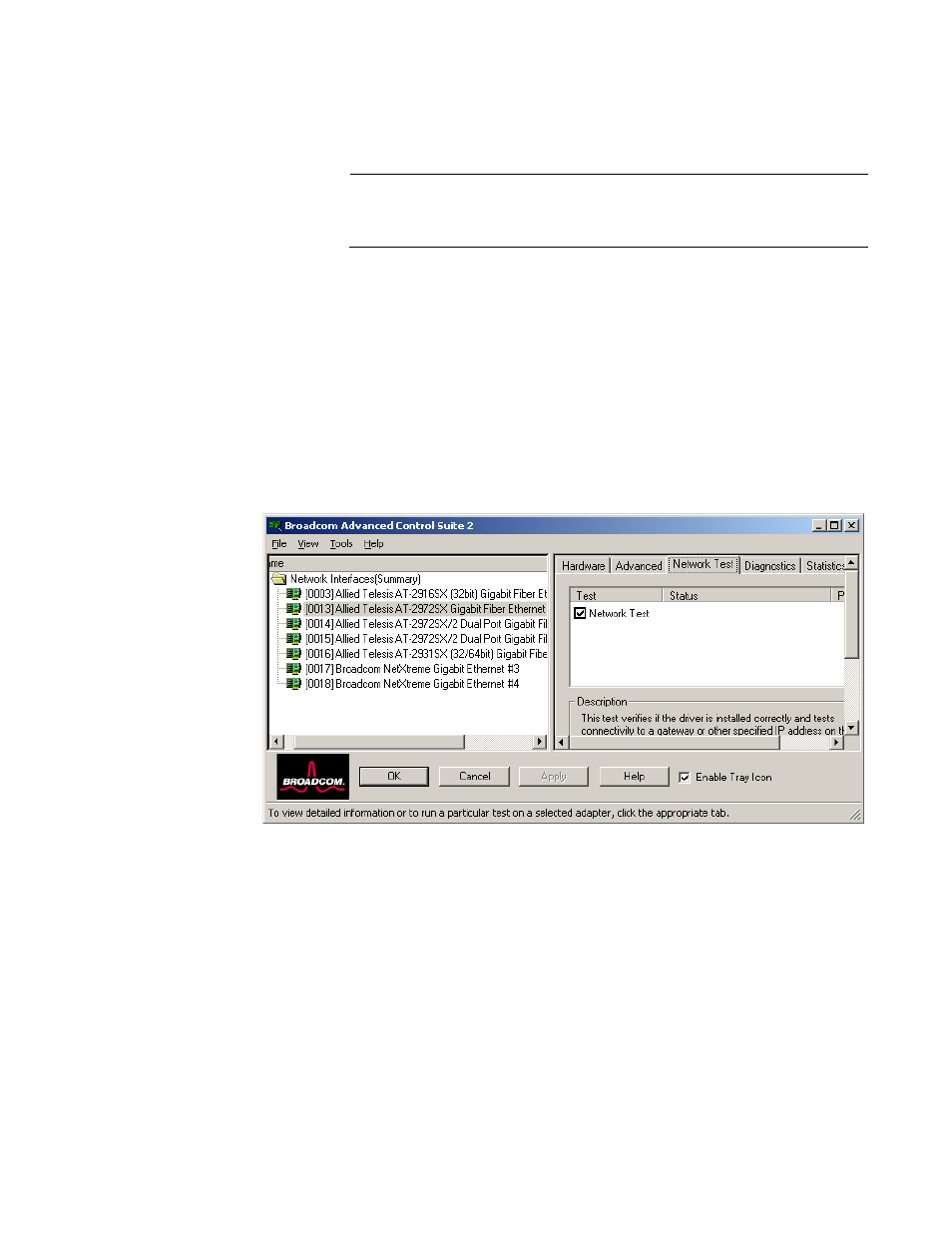

Figure 6. Network Test Tab
Diagnostics Tab
On the Diagnostics tab you can perform diagnostic tests on Allied Telesis
network adapters. You use this function to test the physical components of
the adapter, as shown in Figure 7 on page 32.
