Chapter 1: Introducing the AT-2812FX Module
20
Physical Description
This section provides descriptions of the AT-2812FX faceplate and the
LED. The faceplate on the AT-2812FX module has one fiber port that
provides two fiber optic connectors for attaching the module to a
compatible link partner (one transmitting and one receiving).
The AT-2812FX module has one LED, as shown in Figure 2. See Table 1
for a description of the LED operating status.

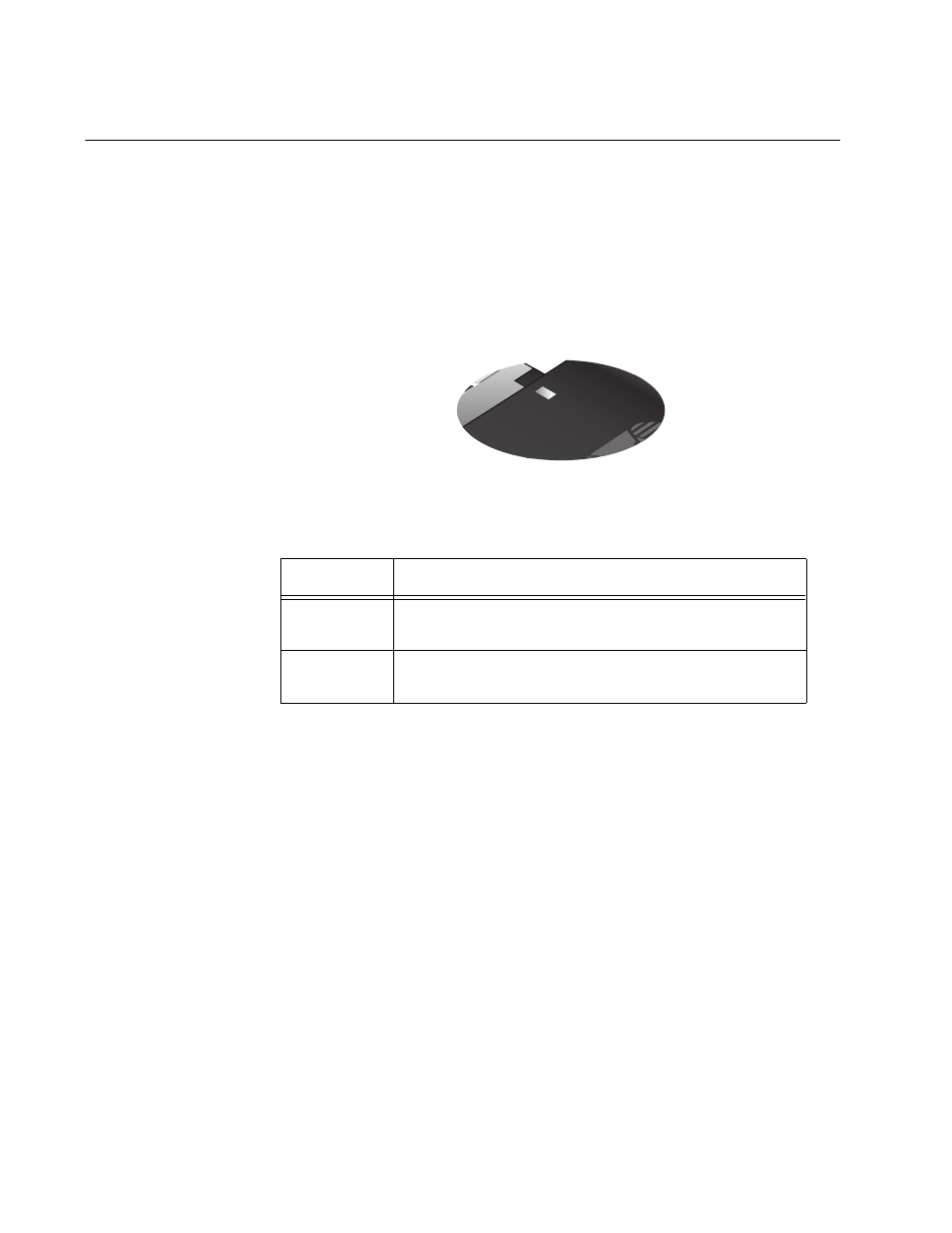

Figure 2. AT-2812FX LED
Table 1. Fiber Optic Port 100 LED Status
State Description
Green The port is operating at 100 Mbps and has a valid
link.
Flashing The port is receiving or transmitting network packets
at 100 Mbps.
