Chapter 2: Installation
44
Cabling an SFP
Transceiver
To cable an SFP transceiver, perform the following procedure:
Note
For information about the proper cable type, refer to the
documentation that accompanied the SFP transceiver.
Note
Before you install the cable in the SFP transceiver, verify that the
optical power input to the transceiver is within its dynamic range.
1. Remove the dust cover from the SFP transceiver, as shown in
Figure 11.

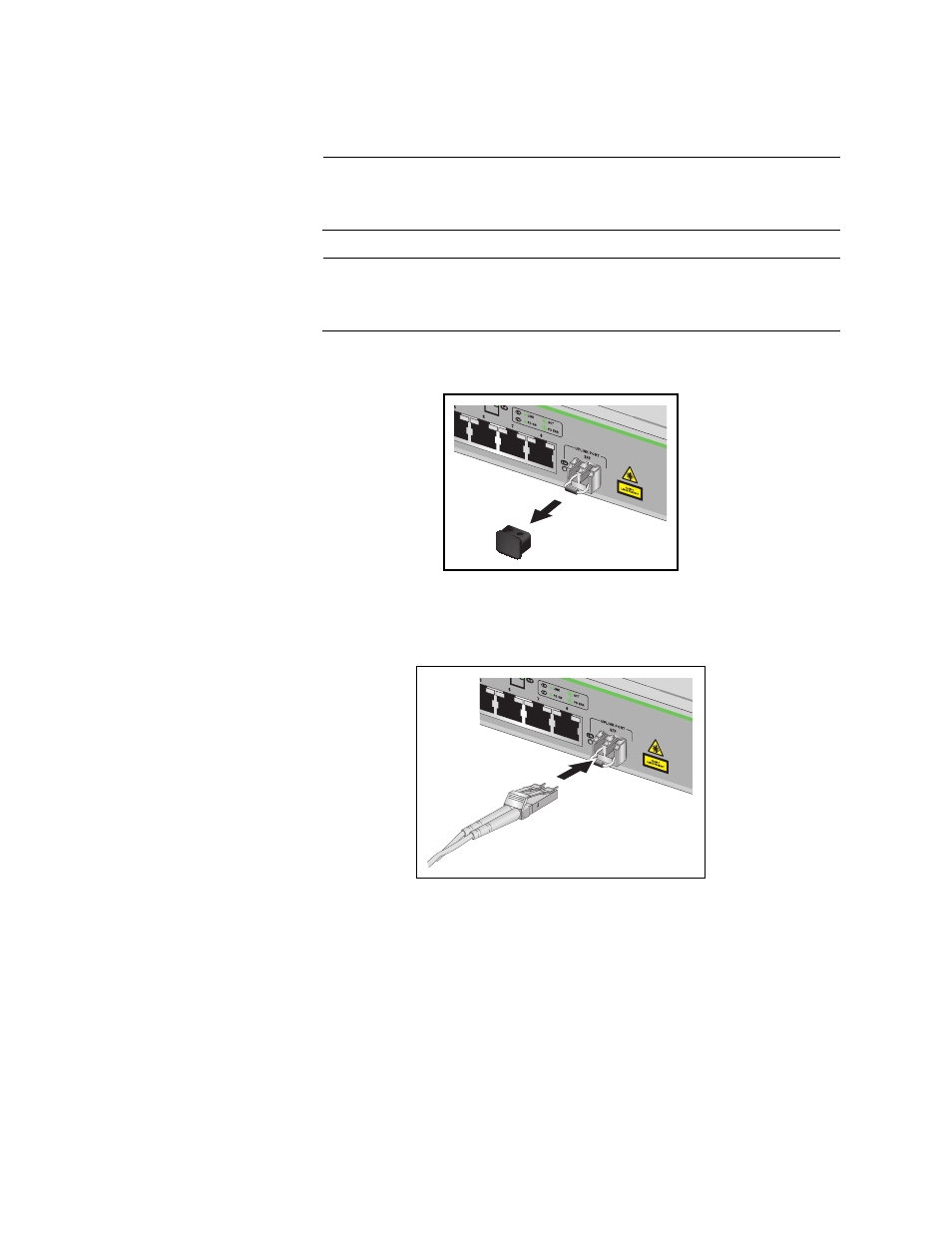

Figure 11. Removing the Dust Cover from the SFP Transceiver
2. Connect the fiber optic cable to the SFP transceiver, as shown in
Figure 12.
Figure 12. Connecting Fiber Optic Cables to the SFP Transceiver
3. Power on the end nodes.
