AT-FS708/POE Fast Ethernet Switch Installation Guide
39
Installing the Switch in a Rack
To install the switch in a rack, perform the following procedure:
1. If attached, remove the rubber feet using a flat-head screwdriver.
2. Attach a mounting bracket to each side of the switch using the six
bracket mounting screws as shown Figure 7.

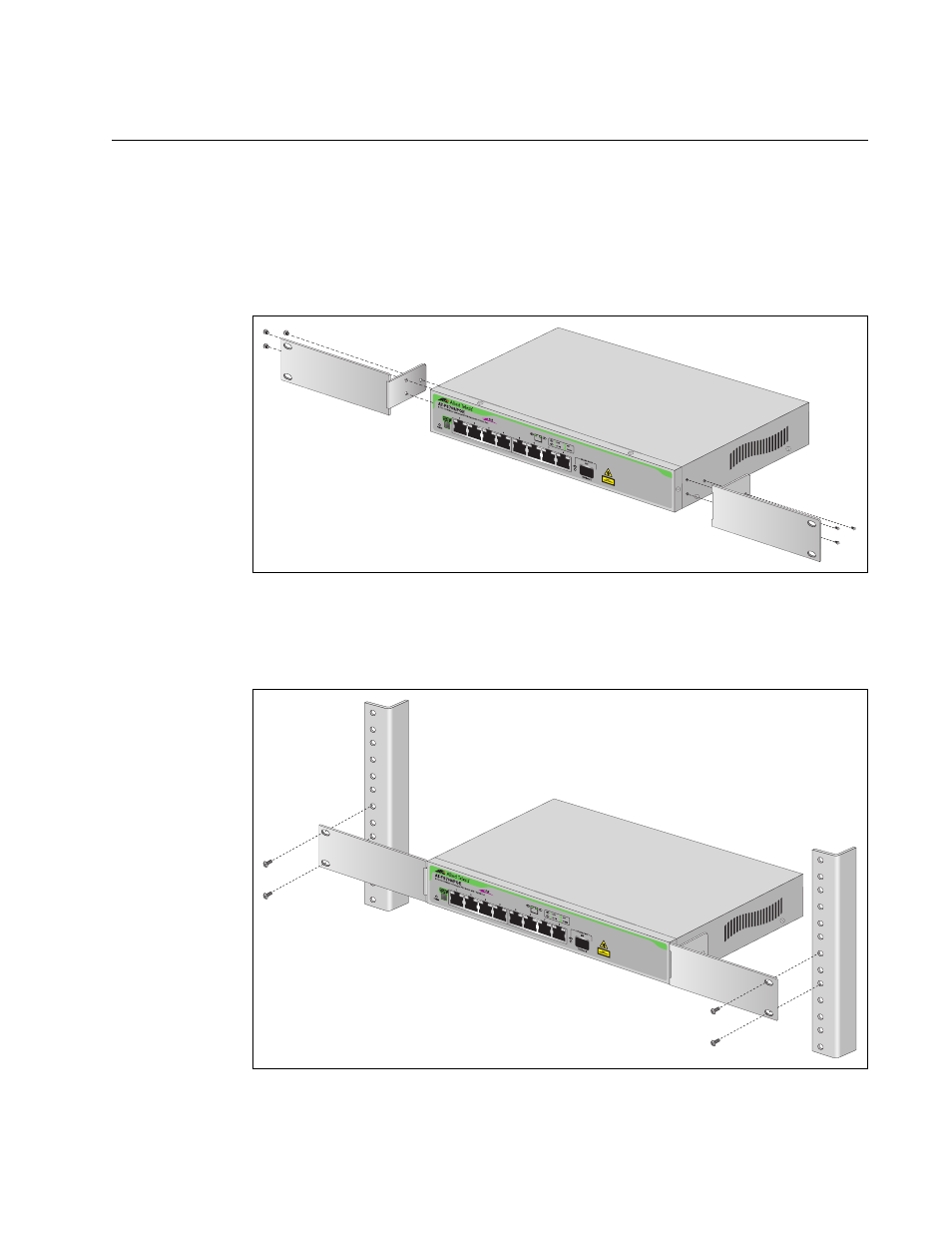

Figure 7. Attaching the Mounting Brackets
3. Mount the switch on a 19-inch rack using the four rack-mount screws,
as shown in Figure 8.
Figure 8. Mounting the Switch on the Rack
